£244.17
excl. VAT
£293.00 incl. VAT
£293.00
incl. VAT
£244.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

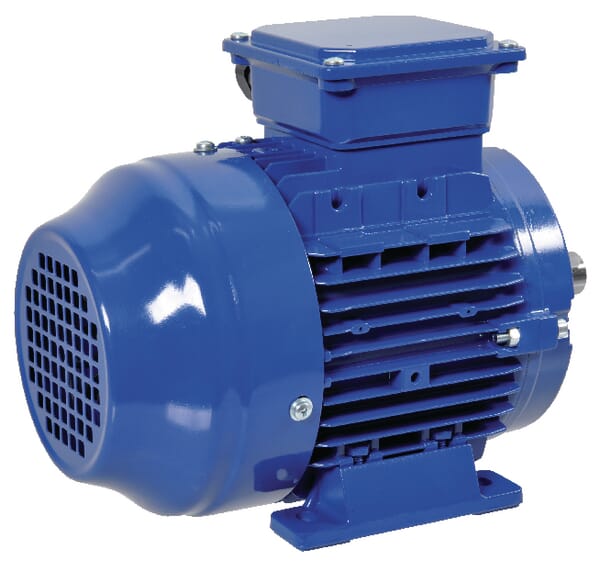

Product details

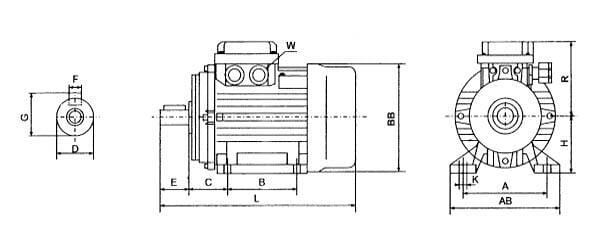

| ABDistance outside foot width side | 175 mm |
|---|---|
| ADistance bore foot width side | 140 mm |
| BBDiameter fan cover | 176 mm |
| BDistance bore foot length side | 100 mm |
| CDistance front motor till center first mounting hole | 56 mm |
| cos φ | 0.76 |
| HDistance underside foot till centre shaft | 90 mm |
| In | 1.81 A |
| KDiameter bore foot | 10 mm |
| Key width | 8 mm |
| LTotal length | 325 mm |
| Moments of inertia (kgm²) | 0.0041 kg·m² |
| N1 | 935 r/min |
| Noise level | 59 dB(A) |
| Phase ~ | 3 |
| PN | 0.75 kW |
| Power factor cos phi 100% | 0.67 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20x1,5 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 13.8 kg |
Logistics
| EAN | 8716106885589 |
|---|---|
| Unit of measure | EA |
| Weight | 14554 g |
| Dimensions | 330 × 255 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000205502

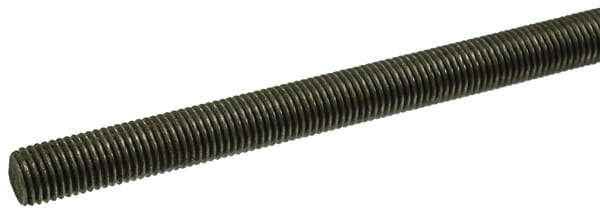

Kramp Threaded rod M36x4x1m steel 8.8 DIN 975 97536B
£33.28 excl.
£39.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000095666

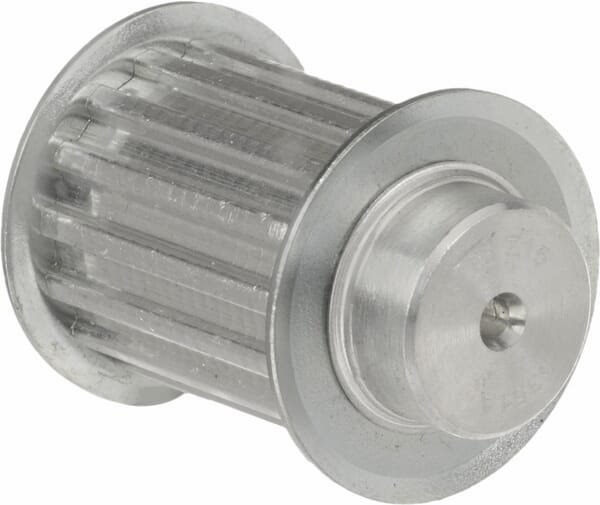

Kramp Timing pulley Type -T5 15Z 36T5152
£2.53 excl.
£3.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000318037
Kramp Bearing NWB06164
£7.53 excl.
£9.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268751
Kramp Reducer f/m 1 1/4"x3/4" FG24611434
£5.06 excl.
£6.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000342243
Kramp Platewheel Simplex 57 teeth 1/2" chain 08 B-1 PW1257
£22.10 excl.
£26.52 incl.
In stock
Expected to ship on Monday 21 September
BPA000205718

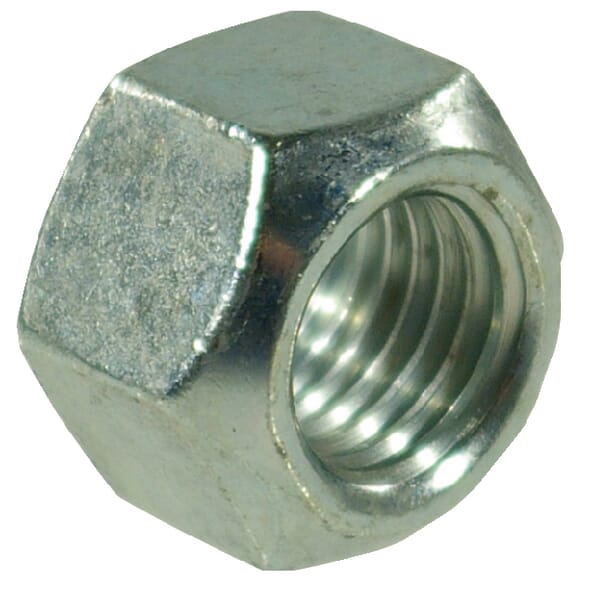

Kramp Hexagon Lock Nut DIN980 M18x2.50 steel zinc-Plated Class 10 9801810
