£288.93
excl. VAT
£346.72 incl. VAT
£346.72
incl. VAT
£288.93 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

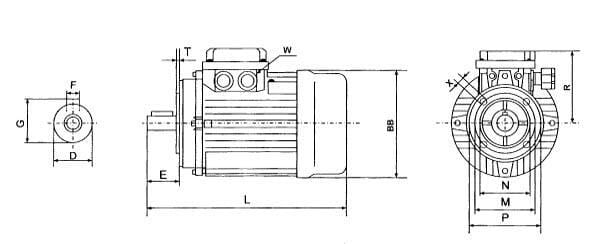

| BB | 176 mm |
|---|---|
| Frame size | 90 mm |
| In | 2.45 A |
| Key width | 8 mm |
| Length of centring | 3 mm |
| LTotal length | 350 mm |
| Moments of inertia (kgm²) | 0.0055 kg·m² |
| MPitch circle diameter | 115 mm |
| N1 | 950 r/min |
| NDiameter of centring | 95 mm |
| Noise level | 59 dB(A) |
| PDiameter lead in edge | 140 mm |
| Phase ~ | 3 |
| PN | 1.1 kW |
| Power factor cos phi 100% | 0.67 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 2.9 N·m |
| Torque Ts/Tn | 2.7 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 16.2 kg |
| XDiameter mounting holes | M8 mm |
Compatible accessories
Parts and components that work with this product.
DS7340SX007N0N
Eaton Softstart stop 3kW 24AC/DC DS7340SX007N0N
£363.82 excl.
£436.58 incl.
EM99006VLA3
Kramp Base mounting kit 90-L EM99006VLA3
£7.61 excl.
£9.13 incl.
EM990B5FLA3

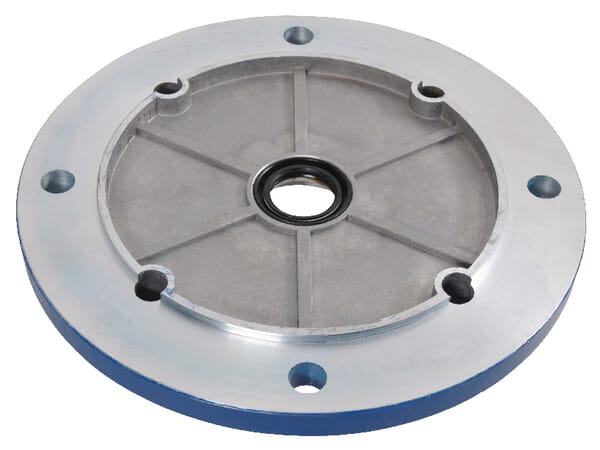

Kramp Engine flange 90-B5 EM990B5FLA3
£27.28 excl.
£32.74 incl.
PKZM014
Eaton Engine circuit breaker PKZM014
£131.37 excl.
£157.64 incl.
Logistics
| EAN | 8716106885886 |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 375 × 230 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000322528
Kramp Bearing NWB09928
£9.96 excl.
£11.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179313
Kramp Countersunk head screw DIN7991 M10x40 stainless steel A4 79911040RVSA4
£0.90 excl.
£1.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000302610
Kramp Blade nut and bolt Suitable for Tarrup (6) KRKT56403000KNP06B
£6.98 excl.
£8.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000300711

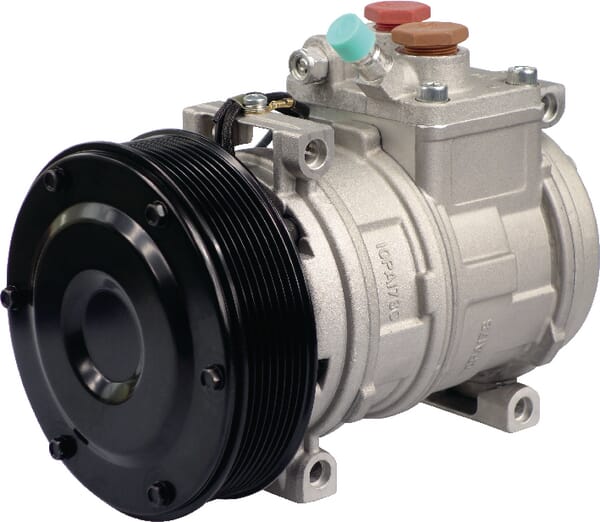

Kramp Airco compressor KL200028
£317.33 excl.
£380.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000272907

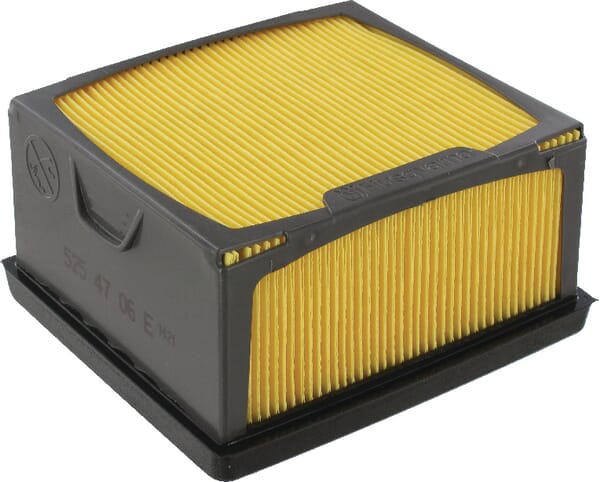

Kramp Air filter for 525470602, Suitable for Husqvarna FGP456012
