£274.38
excl. VAT
£329.26 incl. VAT
£329.26
incl. VAT
£274.38 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

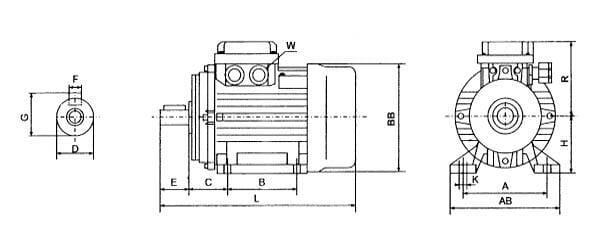

| ABDistance outside foot width side | 175 mm |
|---|---|
| ADistance bore foot width side | 140 mm |
| BBDiameter fan cover | 176 mm |
| BDistance bore foot length side | 125 mm |
| CDistance front motor till center first mounting hole | 56 mm |
| cos φ | 0.8 |
| HDistance underside foot till centre shaft | 90 mm |
| In | 2.45 A |
| KDiameter bore foot | 10 mm |
| Key width | 8 mm |
| LTotal length | 350 mm |
| Moments of inertia (kgm²) | 0.0055 kg·m² |
| N1 | 935 r/min |
| Noise level | 59 dB(A) |
| Phase ~ | 3 |
| PN | 1.1 kW |
| Power factor cos phi 100% | 0.67 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20x1,5 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 16.2 kg |
Compatible accessories
Parts and components that work with this product.
DS7340SX007N0N
Eaton Softstart stop 3kW 24AC/DC DS7340SX007N0N
£363.82 excl.
£436.58 incl.
EM990B14FLA3
Kramp Engine flange 90-B14 EM990B14FLA3
£15.69 excl.
£18.83 incl.
EM990B5FLA3
Kramp Engine flange 90-B5 EM990B5FLA3
£27.28 excl.
£32.74 incl.
PKZM014
Eaton Engine circuit breaker PKZM014
£131.37 excl.
£157.64 incl.
Logistics
| EAN | 8716106885862 |
|---|---|
| Unit of measure | EA |
| Weight | 17000 g |
| Dimensions | 360 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
BPA000087646

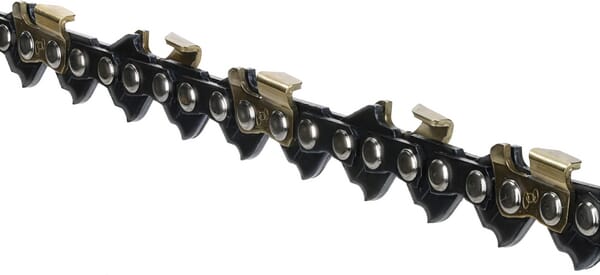

Kramp Saw chain .325" 1.6mm 62 DL semi chisel 32516SB62KR
