£276.53
excl. VAT
£331.84 incl. VAT
£331.84
incl. VAT
£276.53 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

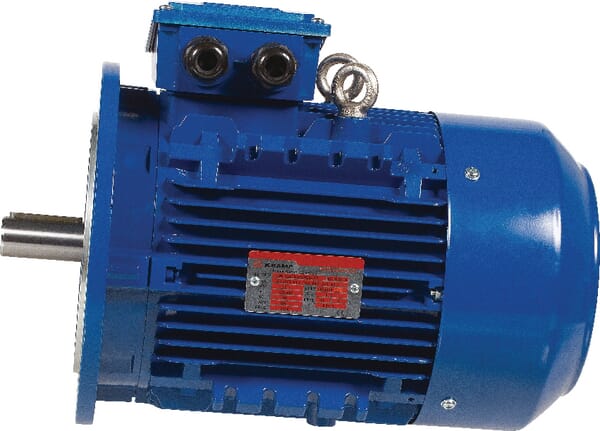

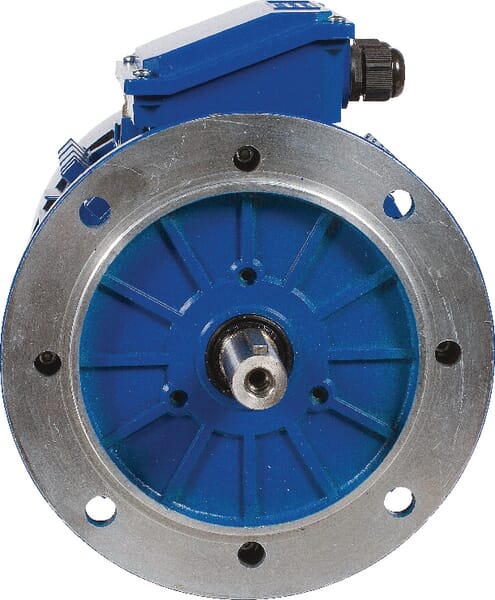

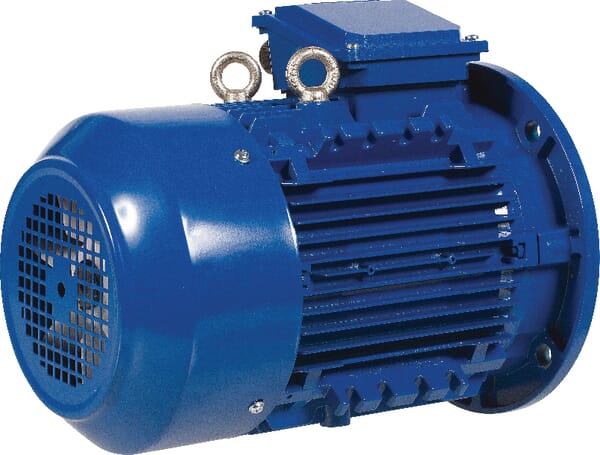

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

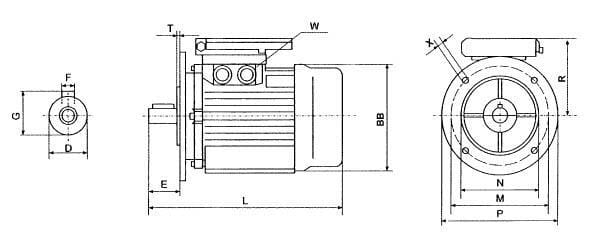

| BBDiameter fan cover | 176 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.8 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 20 mm |
| In | 2.45 A |
| Key width | 8 mm |
| Length of centring | 3.5 mm |
| LTotal length | 350 mm |
| M (Nm) | 11.23 N·m |
| Moments of inertia (kgm²) | 0.0055 kg·m² |
| MPitch circle diameter | 165 mm |
| N1 | 935 r/min |
| NDiameter of centring | 130 mm |
| Noise level | 59 dB(A) |
| Phase ~ | 3 |
| PN | 1.1 kW |
| POutside diameter flange | 200 mm |
| Power factor cos phi 100% | 0.67 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 176 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 3.5 mm |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 16.2 kg |
| XDiameter mounting holes | 12 mm |
Logistics
| EAN | 8716106885848 |
|---|---|
| Unit of measure | EA |
| Weight | 18188 g |
| Dimensions | 381 × 270 × 236 mm |
| Dangerous goods | No |
You might also like
BPA000308932
Kramp Marker light LH LED, 12-24V, 184.9x58x145.5mm, direction indicator dynamic, LA30164INDX
£52.01 excl.
£62.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000241357
Kramp Cylinder - Configurator CFCY8672SP60DW03
£0.03 excl.
£0.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000382903

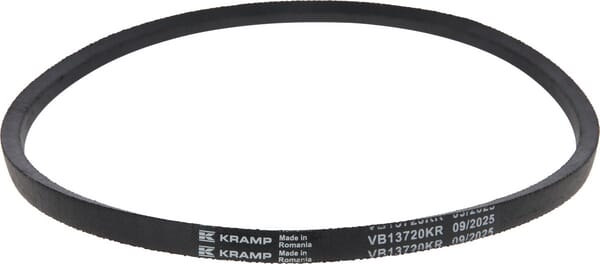

Kramp V-belt 13x720 Li VB13720KR
£5.32 excl.
£6.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000183393

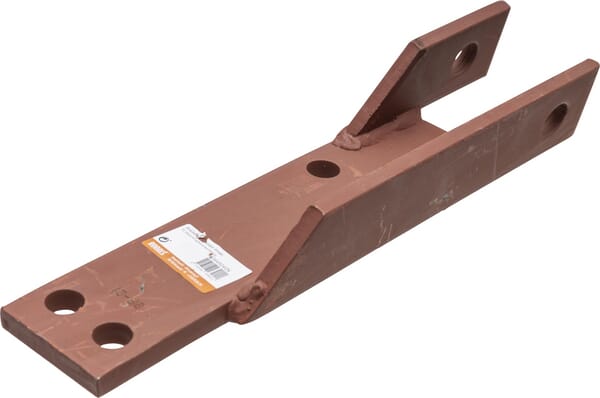

Kramp Bracket of telescopic limiter, right C-385 83449040N
