£264.39
excl. VAT
£317.27 incl. VAT
£317.27
incl. VAT
£264.39 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

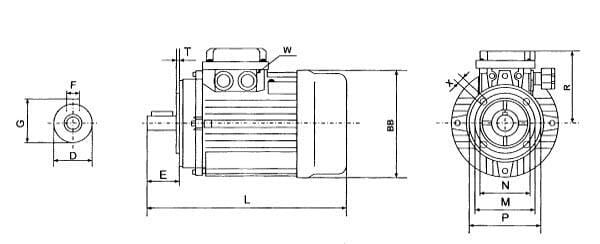

| BB | 176 mm |
|---|---|
| Frame size | 90 mm |
| In | 2.42 A |
| Key width | 8 mm |
| Length of centring | 3 mm |
| LTotal length | 325 mm |
| Moments of inertia (kgm²) | 0.0038 kg·m² |
| MPitch circle diameter | 115 mm |
| N1 | 1440 r/min |
| NDiameter of centring | 95 mm |
| Noise level | 61 dB(A) |
| PDiameter lead in edge | 140 mm |
| Phase ~ | 3 |
| PN | 1.1 kW |
| Power factor cos phi 100% | 0.74 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 3.8 N·m |
| Torque Ts/Tn | 3.7 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 15.1 kg |
| XDiameter mounting holes | M8 mm |
Logistics
| EAN | 8716106885695 |
|---|---|
| Unit of measure | EA |
| Weight | 15049 g |
| Dimensions | 195 × 250 × 340 mm |
| Dangerous goods | No |
You might also like
BPA000193288
Kramp Coach bolt washer M4x12x1mm, Stainless steel A4 DIN 9021 90214RVSA4P025
£0.08 excl.
£0.10 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000193289
Kramp Coach bolt washer M5x15x1.2mm, Stainless steel A2 DIN 9021 90215RVS
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321640
Kramp Bearing NWB08969
£44.11 excl.
£52.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000323876

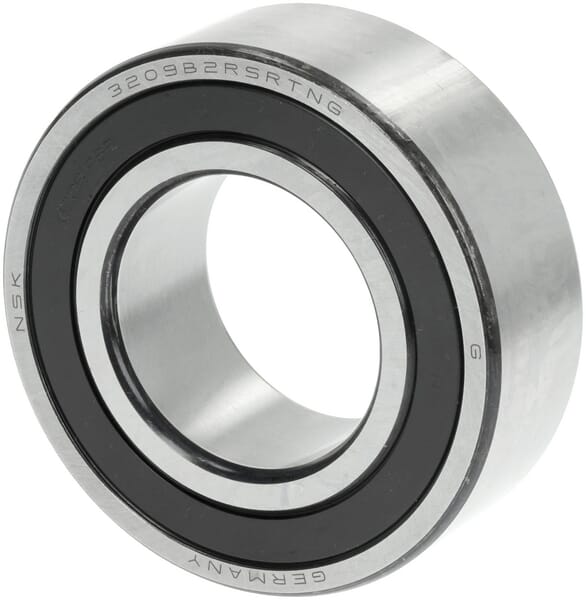

Kramp Angular contact ball bearing NWB00156
£141.95 excl.
£170.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000370109

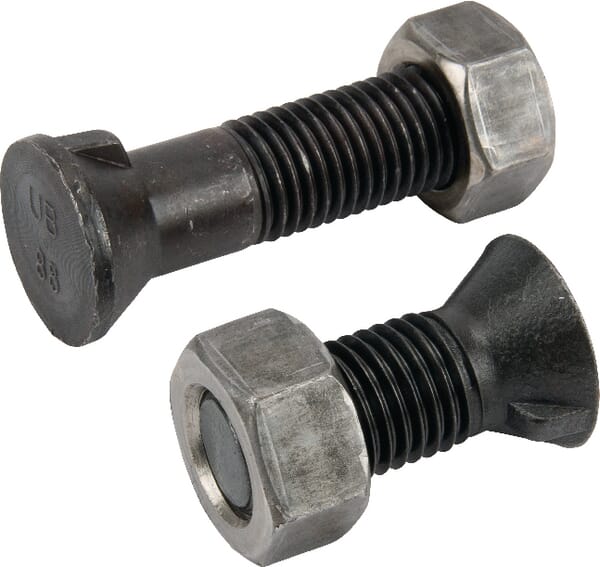

Kramp Bolt pack 3x M20x50 1N, 1x M20x75 1N+Nuts TB10456
