£610.26
excl. VAT
£732.31 incl. VAT
£732.31
incl. VAT
£610.26 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

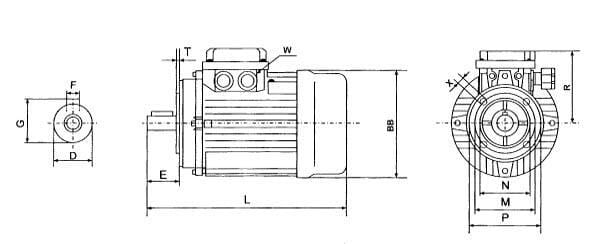

| BB | 199 mm |
|---|---|
| Frame size | 100 mm |
| In | 3.20 A |
| Key width | 8 mm |
| Length of centring | 3.5 mm |
| LTotal length | 388 mm |
| Moments of inertia (kgm²) | 0.0091 kg·m² |
| MPitch circle diameter | 130 mm |
| N1 | 955 r/min |
| NDiameter of centring | 110 mm |
| Noise level | 61 dB(A) |
| PDiameter lead in edge | 160 mm |
| Phase ~ | 3 |
| PN | 1.5 kW |
| Power factor cos phi 100% | 0.7 |
| RDistance center shaft to end terminal box | 165 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 2.9 N·m |
| Torque Ts/Tn | 2.4 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 22.1 kg |
| XDiameter mounting holes | M8 mm |
Logistics
| EAN | 8716106889464 |
|---|---|
| Unit of measure | EA |
| Weight | 1 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000130549
Kramp Oil seal 50x90x10mm type:CC DIN 3760 1x 509010CCP001
£3.15 excl.
£3.78 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000364172
Kramp Starter 12V, 12-teeth, CW STA2617227
£154.19 excl.
£185.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000152168

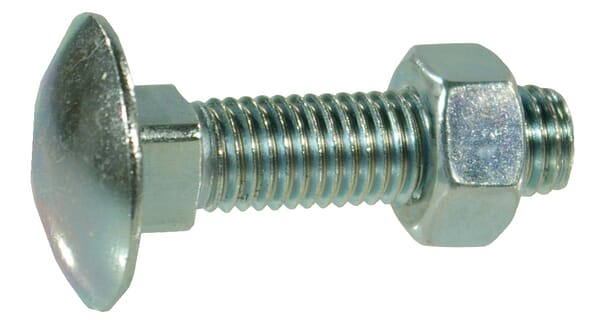

Kramp Coach bolt M12x220 steel hot dip galvanized 4.8 60312220TV
