£375.81
excl. VAT
£450.97 incl. VAT
£450.97
incl. VAT
£375.81 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

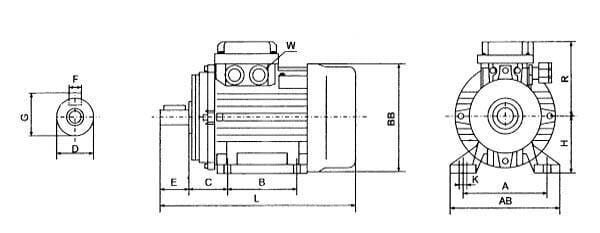

| ABDistance outside foot width side | 200 mm |
|---|---|
| ADistance bore foot width side | 160 mm |
| BBDiameter fan cover | 199 mm |
| BDistance bore foot length side | 140 mm |
| CDistance front motor till center first mounting hole | 63 mm |
| cos φ | 0.82 |
| HDistance underside foot till centre shaft | 100 mm |
| In | 3.20 A |
| KDiameter bore foot | 12 mm |
| Key width | 8 mm |
| LTotal length | 388 mm |
| Moments of inertia (kgm²) | 0.0091 kg·m² |
| N1 | 940 r/min |
| Noise level | 61 dB(A) |
| Phase ~ | 3 |
| PN | 1.5 kW |
| Power factor cos phi 100% | 0.7 |
| RDistance center shaft to end terminal box | 165 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M20x1,5 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 22.1 kg |
Compatible accessories
Parts and components that work with this product.
DS7340SX007N0N
Eaton Softstart stop 3kW 24AC/DC DS7340SX007N0N
£363.82 excl.
£436.58 incl.
EM9100B14FLA3

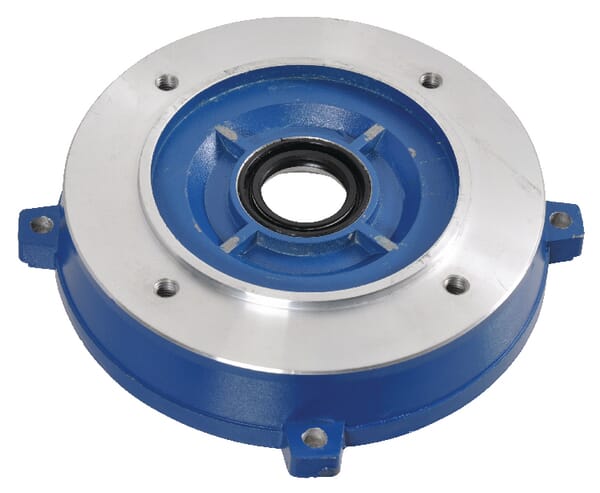

Kramp Engine flange 100-B14 EM9100B14FLA3
£16.89 excl.
£20.27 incl.
EM9100B5FLA3

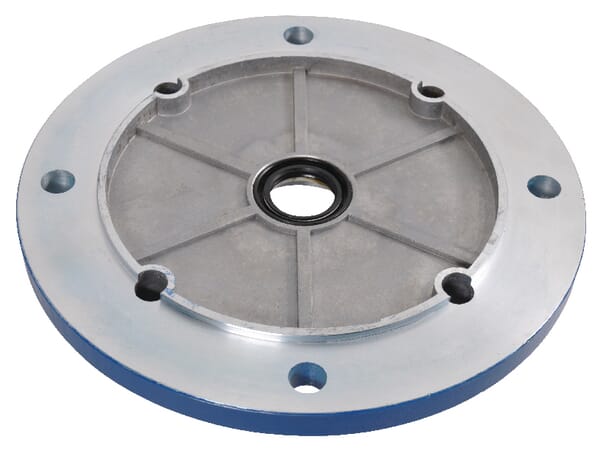

Kramp Engine flange 100-B5 EM9100B5FLA3
£51.14 excl.
£61.37 incl.
PKZM014

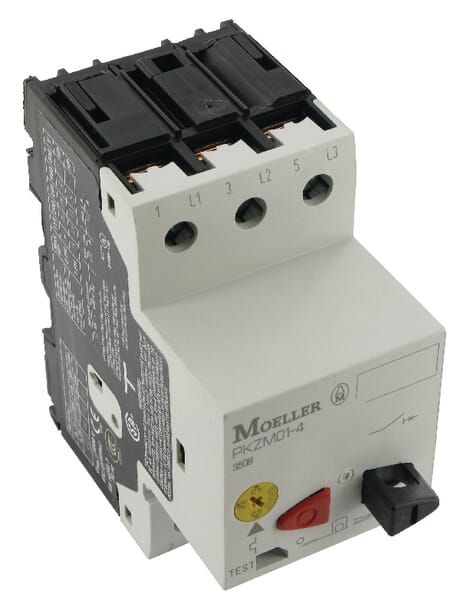

Eaton Engine circuit breaker PKZM014
£131.37 excl.
£157.64 incl.
Logistics
| EAN | 8716106889440 |
|---|---|
| Unit of measure | EA |
| Weight | 24000 g |
| Dimensions | 545 × 356 × 290 mm |
| Dangerous goods | No |
