£405.87
excl. VAT
£487.04 incl. VAT
£487.04
incl. VAT
£405.87 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

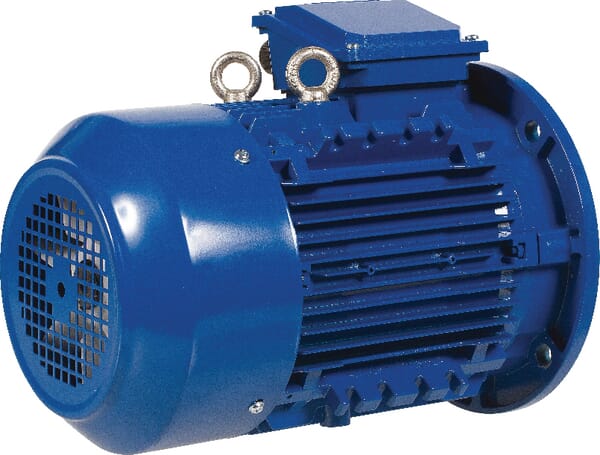

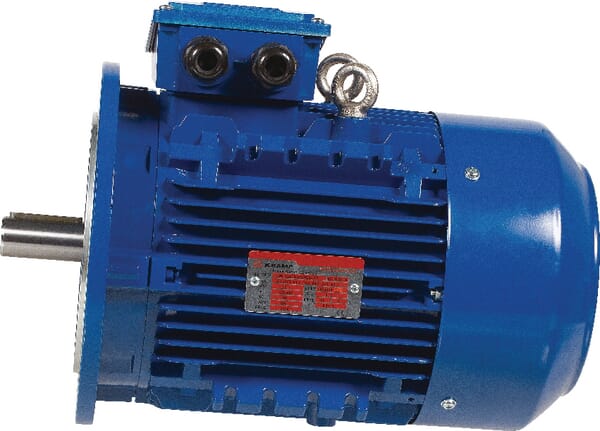

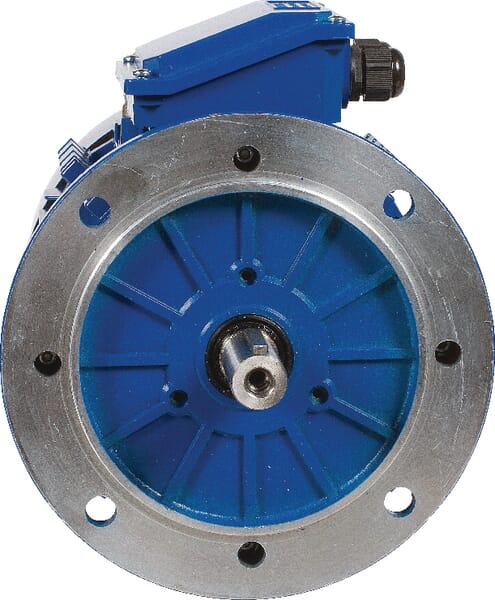

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

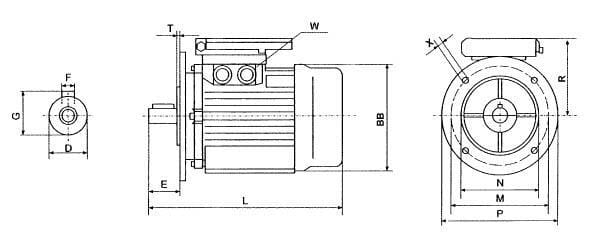

| BBDiameter fan cover | 199 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.82 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| In | 3.20 A |
| Key width | 8 mm |
| Length of centring | 4 mm |
| LTotal length | 388 mm |
| M (Nm) | 15.24 N·m |
| Moments of inertia (kgm²) | 0.0091 kg·m² |
| MPitch circle diameter | 215 mm |
| N1 | 940 r/min |
| NDiameter of centring | 180 mm |
| Noise level | 61 dB(A) |
| Phase ~ | 3 |
| PN | 1.5 kW |
| POutside diameter flange | 250 mm |
| Power factor cos phi 100% | 0.7 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 199 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M20 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 22.1 kg |
| XDiameter mounting holes | 15 mm |
Logistics
| EAN | 8716106889426 |
|---|---|
| Unit of measure | EA |
| Weight | 23200 g |
| Dimensions | 270 × 280 × 420 mm |
| Dangerous goods | No |
