£263.01
excl. VAT
£315.61 incl. VAT
£315.61
incl. VAT
£263.01 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

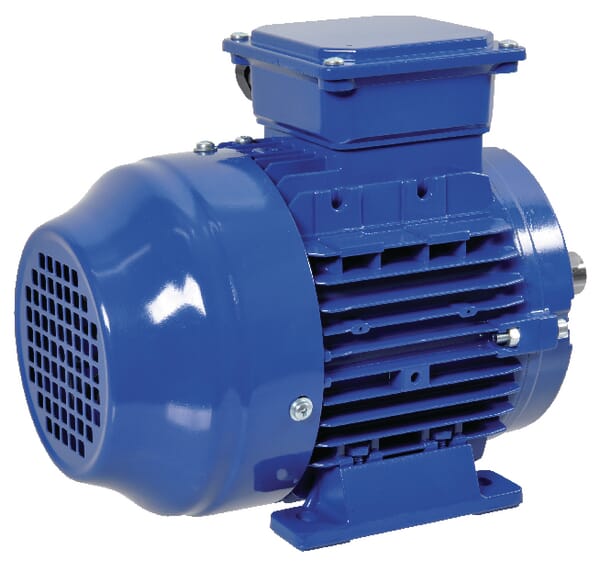

Product details

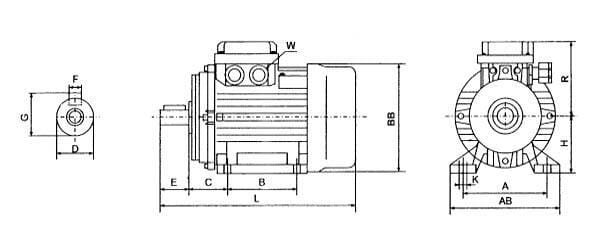

| ABDistance outside foot width side | 175 mm |
|---|---|
| ADistance bore foot width side | 140 mm |
| BBDiameter fan cover | 176 mm |
| BDistance bore foot length side | 125 mm |
| CDistance front motor till center first mounting hole | 56 mm |
| cos φ | 0.79 |
| GHeight shaft with key | 27 mm |
| HDistance underside foot till centre shaft | 90 mm |
| In | 3.21 A |
| KDiameter bore foot | 10 mm |
| Key width | 8 mm |
| LTotal length | 350 mm |
| Moments of inertia (kgm²) | 0.0047 kg·m² |
| N1 | 1420 r/min |
| Noise level | 61 dB(A) |
| Phase ~ | 3 |
| PN | 1.5 kW |
| Power factor cos phi 100% | 0.73 |

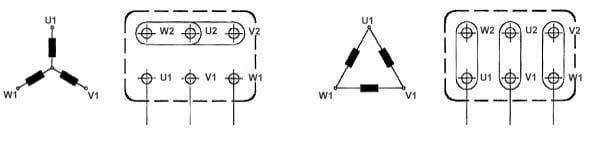

| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Unit | Each |
| Voltage | 230/400V 50 Hz V |
| Weight | 18.0 kg |
Logistics
| EAN | 8716106885954 |
|---|---|
| Unit of measure | EA |
| Weight | 18500 g |
| Dimensions | 356 × 260 × 250 mm |
| Dangerous goods | No |
You might also like
BPA000356850

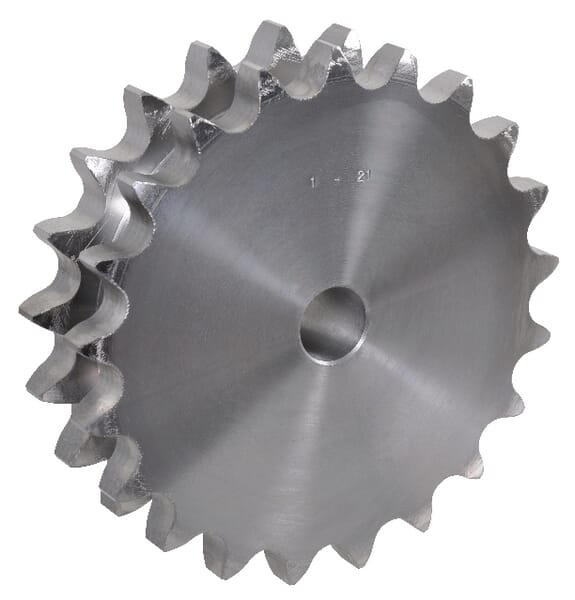

Kramp Sprocket Duplex 22 teeth 1" chain 16 B-2 SD122
£59.82 excl.
£71.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000323267
Kramp Bearing NWB08554
£13.21 excl.
£15.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250095

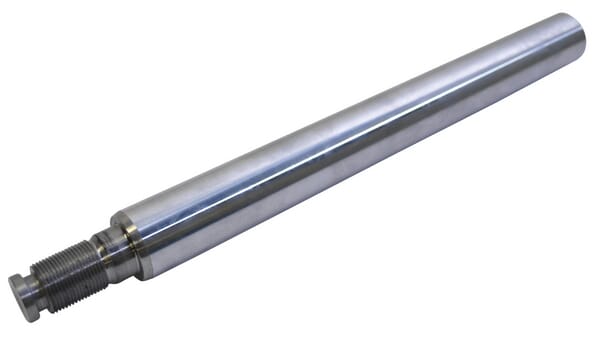

Kramp Rod 28 stroke 500 D60+63 L=648 DS3902806030500
