£194.80
excl. VAT
£233.76 incl. VAT
£233.76
incl. VAT
£194.80 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

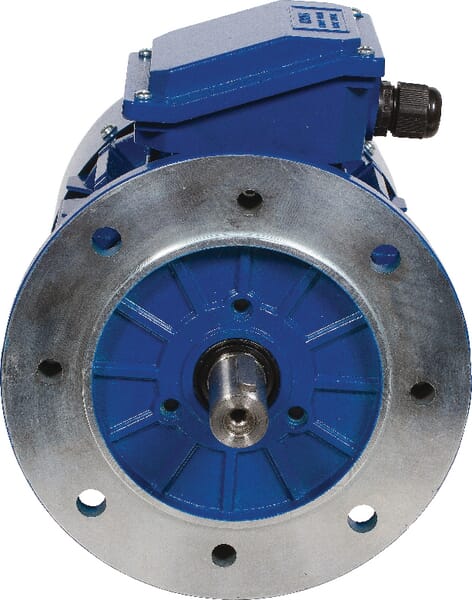

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

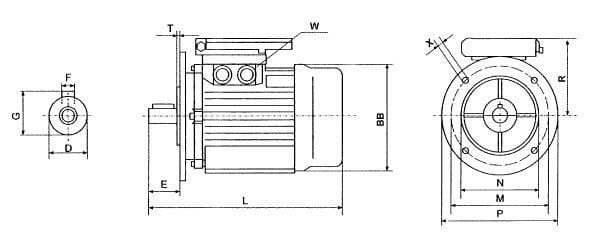

| BBDiameter fan cover | 176 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.79 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 27.0 mm |
| In | 3.21 A |
| Key width | 8 mm |
| Length of centring | 3.5 mm |
| LTotal length | 350 mm |
| M (Nm) | 10.09 N·m |
| Moments of inertia (kgm²) | 0.0047 kg·m² |
| MPitch circle diameter | 165 mm |
| N1 | 1420 r/min |
| NDiameter of centring | 130 mm |
| Noise level | 61 dB(A) |
| Phase ~ | 3 |
| PN | 1.5 kW |
| POutside diameter flange | 200 mm |
| Power factor cos phi 100% | 0.73 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 3.5 mm |
| Unit | Each |
| Voltage | 230/400V 50 Hz V |
| Weight | 18.0 kg |
| XDiameter mounting holes | 12 mm |
Compatible accessories
Parts and components that work with this product.
DS7340SX007N0N

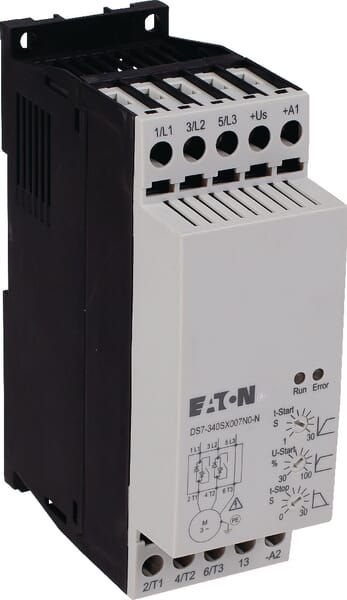

Eaton Softstart stop 3kW 24AC/DC DS7340SX007N0N
£363.82 excl.
£436.58 incl.
EM99006VLA3

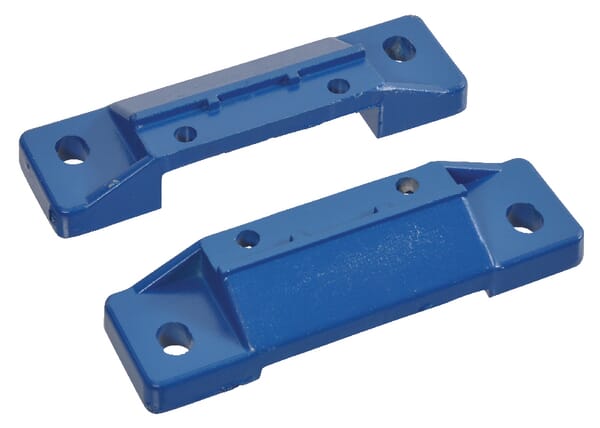

Kramp Base mounting kit 90-L EM99006VLA3
£7.61 excl.
£9.13 incl.
EM990B14FLA3

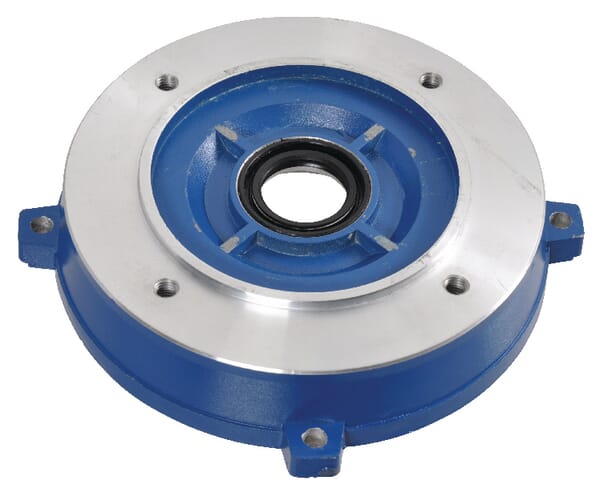

Kramp Engine flange 90-B14 EM990B14FLA3
£15.69 excl.
£18.83 incl.
PKZM014

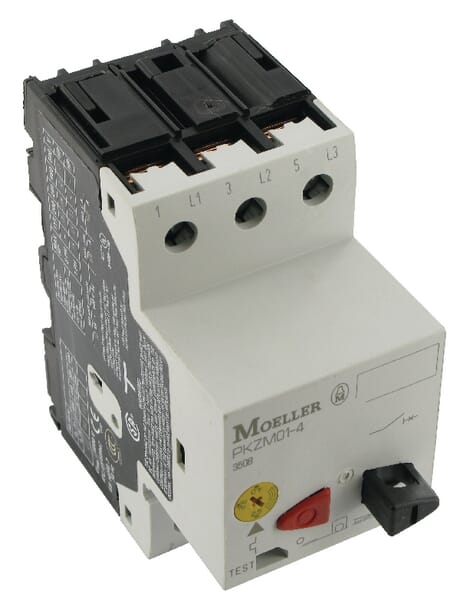

Eaton Engine circuit breaker PKZM014
£131.37 excl.
£157.64 incl.
Logistics
| EAN | 8716106885916 |
|---|---|
| Unit of measure | EA |
| Weight | 18680 g |
| Dimensions | 375 × 265 × 215 mm |
| Dangerous goods | No |
You might also like
BPA000195821

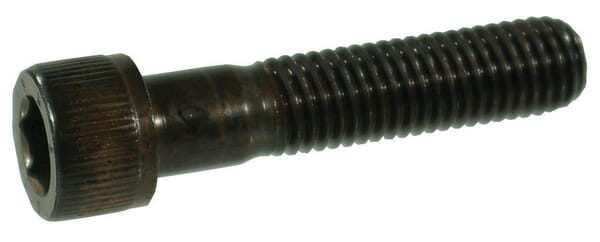

Kramp Hexagon socket head cap screw DIN912 M20x200 steel 12.9 91220200129B
£11.21 excl.
£13.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000159265
Kramp Hexagon flange bolt DIN6921 M10x20 steel zinc-plated 8.8 69211020
£0.60 excl.
£0.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000146210
Kramp Exhaust clamp 116-120 mm 590045KR
£2.64 excl.
£3.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000334193
Kramp O-ring 113x3.5mm 70 shore OR113350P001
£1.95 excl.
£2.34 incl.
In stock
Expected to ship on Monday 21 September
BPA000065501

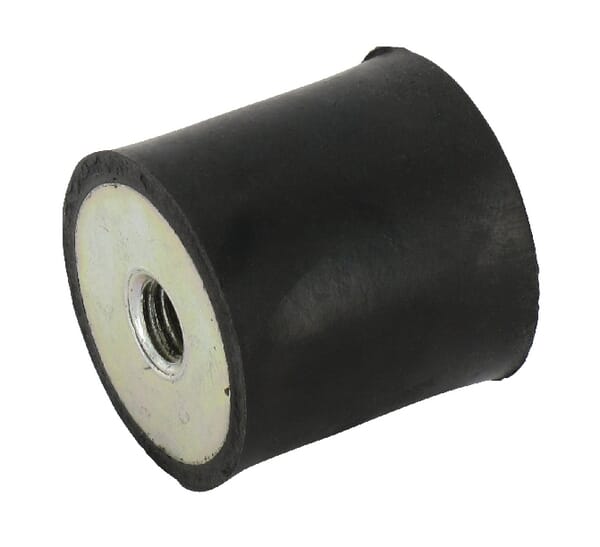

Kramp Vibration damper TYPE C 2025C55
