About this product

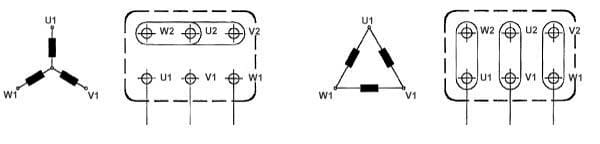

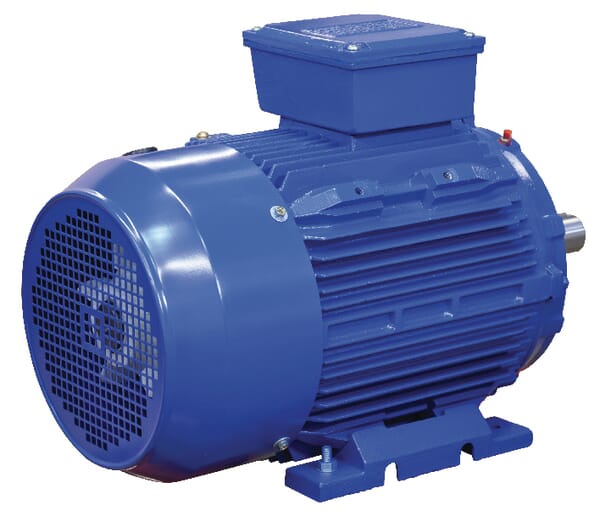

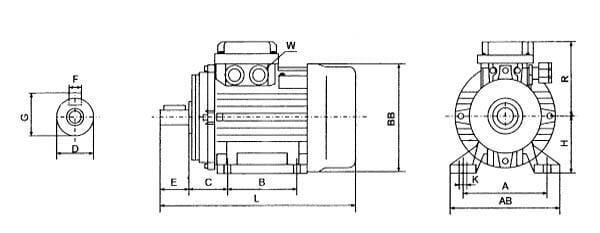

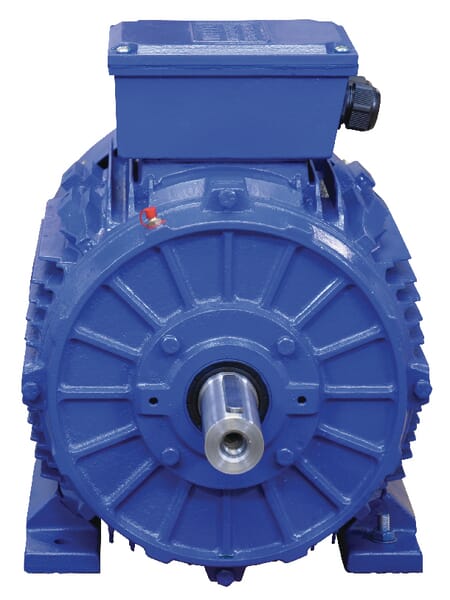

An 11 kW three-phase electric motor rated for 50 Hz operation at 1000 rpm, supplied as a single unit. The motor is configured for B3 foot-mounted installation with cast-iron housing and conforms to IE3 energy efficiency standards. Electrical specifications include 400/690 V dual-voltage operation, 20.69 A nominal current at full load, 0.85 power factor, and 109.43 N·m rated torque. The shaft has a 12 mm key width and measures 110 mm in length with a 37 mm height above the key. Mounting feet are drilled with 15 mm diameter bores and spaced 254 mm on the length side and 314 mm on the width side, with the centre shaft 160 mm above the underside of the feet. The M32 × 1.5 swivel allows for cable entry configuration. The motor weighs 134 kg, measures 650 mm in total length, and produces a noise level of 73 dB(A). The moment of inertia is 0.1354 kg·m². EAN 8716106888122.
