£2,024.29
excl. VAT
£2,429.15 incl. VAT
£2,429.15
incl. VAT
£2,024.29 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

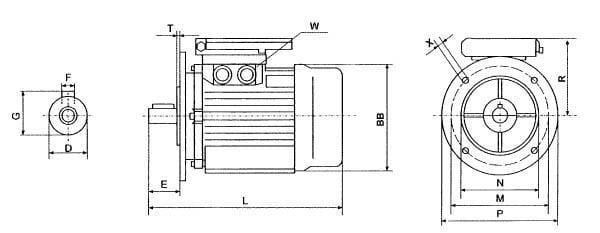

| BBDiameter fan cover | 313 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.91 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 45.0 mm |
| In | 19.09 A |
| Key width | 12 mm |
| Length of centring | 5 mm |
| LTotal length | 605 mm |
| Material housing | Cast iron |
| M (Nm) | 72.95 N·m |
| Moments of inertia (kgm²) | 0.1036 kg·m² |
| MPitch circle diameter | 300 mm |
| N1 | 1440 r/min |
| NDiameter of centring | 250 mm |
| Noise level | 75 dB(A) |
| Phase ~ | 3 |
| PN | 11 kW |
| POutside diameter flange | 350 mm |
| Power factor cos phi 100% | 0.84 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 242 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 72.45 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 127.0 kg |
| XDiameter mounting holes | 19 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106888023 |
|---|---|
| Unit of measure | EA |
| Weight | 150000 g |
| Dimensions | 750 × 570 × 570 mm |
| Dangerous goods | No |
You might also like
BPA000209185
Kramp Hexagon locknut DIN985 UNC 1/4" steel zinc-plated |8| 98514UNC
£0.11 excl.
£0.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000301814
Kramp Wood screw M6 x 40mm (10) KR571640P10B
£1.51 excl.
£1.81 incl.
In stock
Expected to ship on Monday 21 September
BPA000308809

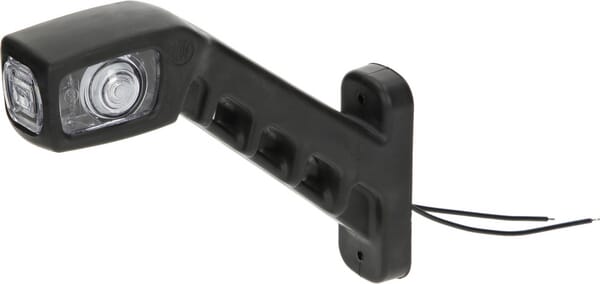

Kramp Marker light LH LED, 12-24V, 165x187x37mm, LA30012
£22.65 excl.
£27.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000404005

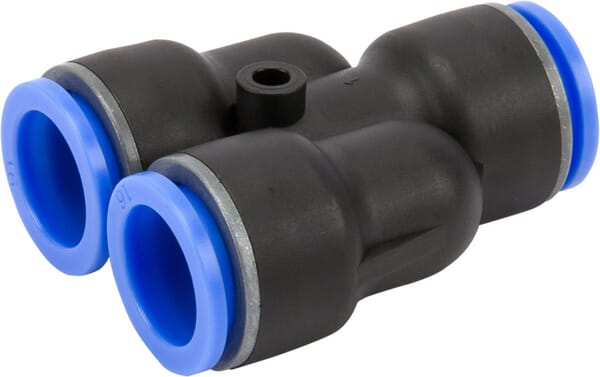

Kramp Push-in fitting YC16P
£5.02 excl.
£6.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000205345
Kramp Threaded rod M12x1.75x1m steel 4.6 zinc-plated DIN 975 9751246
£2.07 excl.
£2.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000316517

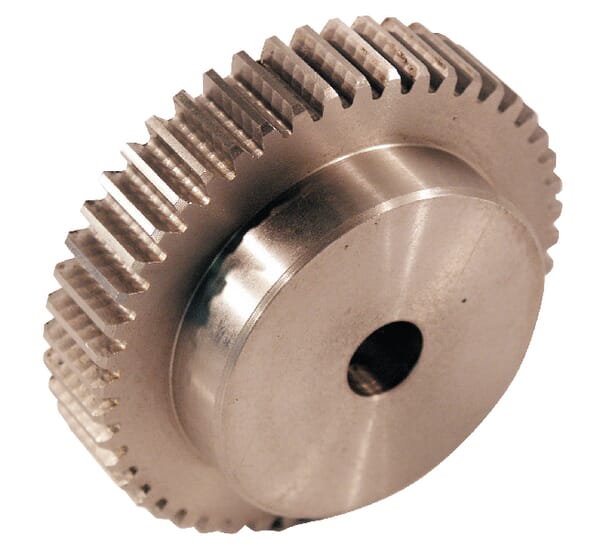

Kramp Spur gear module 2 - Z=30 MOD230
