£2,611.08
excl. VAT
£3,133.30 incl. VAT
£3,133.30
incl. VAT
£2,611.08 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

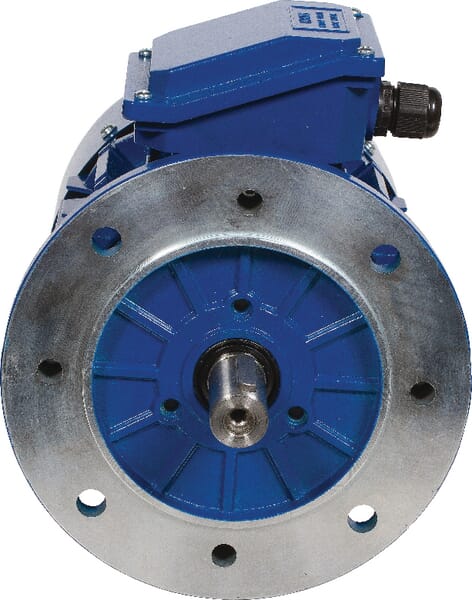

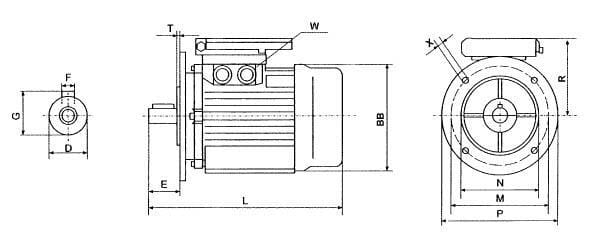

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 313 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.92 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 45.0 mm |
| In | 25.55 A |
| Key width | 12 mm |
| Length of centring | 5 mm |
| LTotal length | 650 mm |
| Material housing | Cast iron |
| M (Nm) | 99.13 N·m |
| Moments of inertia (kgm²) | 0.1375 kg·m² |
| MPitch circle diameter | 300 mm |
| N1 | 1445 r/min |
| NDiameter of centring | 250 mm |
| Noise level | 75 dB(A) |
| Phase ~ | 3 |
| PN | 15 kW |
| POutside diameter flange | 350 mm |
| Power factor cos phi 100% | 0.86 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 242 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 98.79 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 160.0 kg |
| XDiameter mounting holes | 19 mm |
Logistics
| EAN | 8716106888146 |
|---|---|
| Unit of measure | EA |
| Weight | 155000 g |
| Dimensions | 740 × 570 × 400 mm |
| Dangerous goods | No |
