About this product

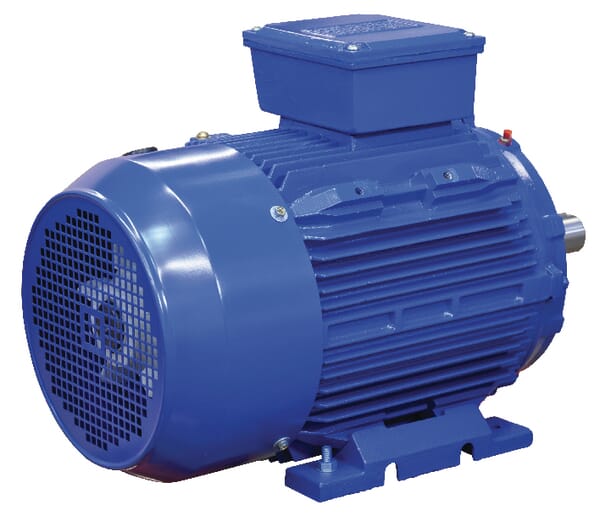

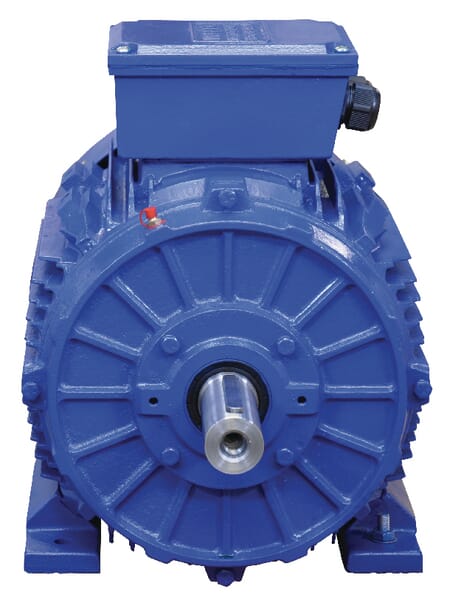

An 18.5 kW three-phase electric motor rated for 400/690 V at 50 Hz operation, delivering 60.09 N·m torque at approximately 2922 r/min. The motor features B3 foot mounting with a 160 mm distance from the underside of the foot to the centre shaft, and a cast iron housing. Operating current is 31.41 A with a power factor of 0.91 at full load. The motor measures 650 mm in total length with a 110 mm shaft length and 12 mm key width, and includes two M32 × 1.5 swivel mounting points. Moment of inertia is 0.0767 kg·m², with a noise level of 86 dB(A). The unit weighs 144 kg and is supplied individually. The product carries the EAN 8716106888214.
Product details

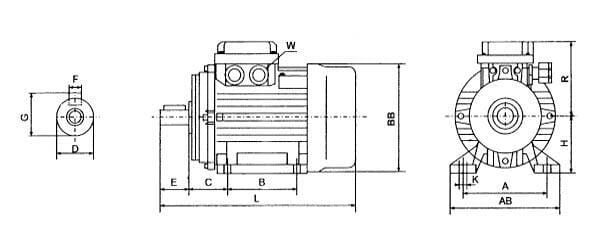

| ABDistance outside foot width side | 314 mm |
|---|---|
| ADistance bore foot width side | 254 mm |
| BBDiameter fan cover | 313 mm |
| BDistance bore foot length side | 254 mm |
| CDistance front motor till center first mounting hole | 108 mm |
| cos φ | 0.92 |
| Frequency | 50 Hz |
| HDistance underside foot till centre shaft | 160 mm |
| In | 31.41 A |
| KDiameter bore foot | 15 mm |
| Key width | 12 mm |
| LTotal length | 650 mm |
| Material housing | Cast iron |
| Moments of inertia (kgm²) | 0.0767 kg·m² |
| N1 | 2922 r/min |
| Noise level | 86 dB(A) |
| Phase ~ | 3 |
| PN | 18.5 kW |
| Power factor cos phi 100% | 0.91 |
| RDistance center shaft to end terminal box | 242 mm |
| Shaft length | 110 mm |
| Swivel | 2 - M32× 1.5 |
| Torque | 60.09 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 144.0 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106888214 |
|---|---|
| Unit of measure | EA |
| Weight | 156000 g |
| Dimensions | 740 × 400 × 590 mm |
| Dangerous goods | No |
