£3,579.17
excl. VAT
£4,295.00 incl. VAT
£4,295.00
incl. VAT
£3,579.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

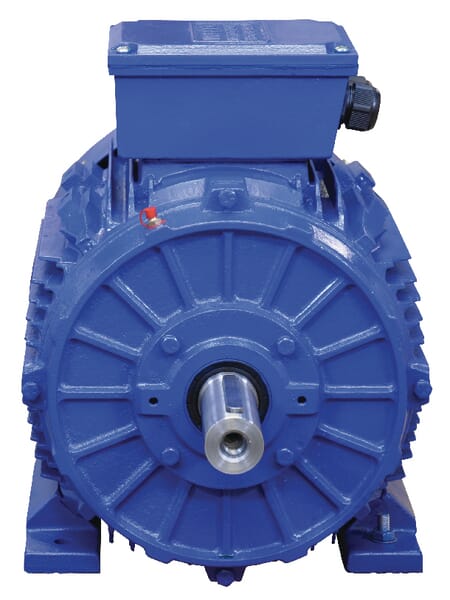

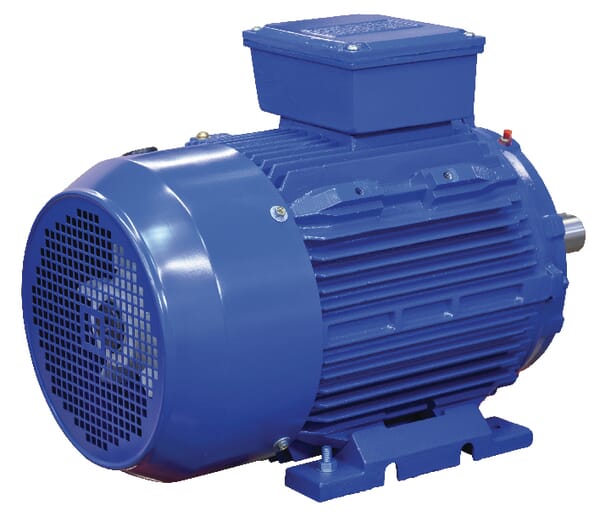

Product details

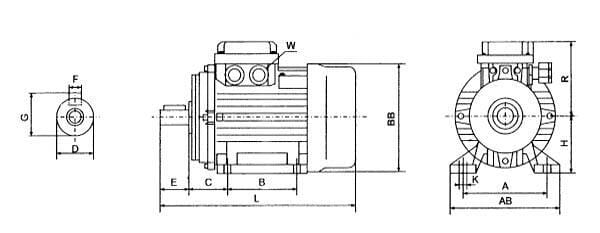

| ABDistance outside foot width side | 348 mm |
|---|---|
| ADistance bore foot width side | 279 mm |
| BBDiameter fan cover | 360 mm |
| BDistance bore foot length side | 241 mm |
| CDistance front motor till center first mounting hole | 121 mm |
| cos φ | 0.87 |
| Frequency | 50 Hz |
| GHeight shaft with key | 42.5 mm |
| HDistance underside foot till centre shaft | 180 mm |
| In | 33.15 A |
| KDiameter bore foot | 15 mm |
| Key width | 14 mm |
| LTotal length | 687 mm |
| Material housing | Cast iron |
| Moments of inertia (kgm²) | 0.1553 kg·m² |
| N1 | 1445 r/min |
| Noise level | 76 dB(A) |
| Phase ~ | 3 |
| PN | 18.5 kW |
| Power factor cos phi 100% | 0.86 |

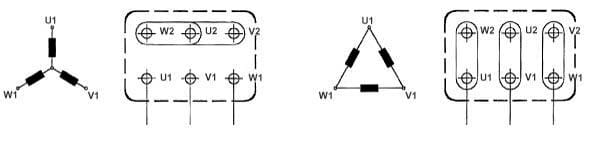

| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 259 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Torque | 121.01 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 169.4 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887699 |
|---|---|
| Unit of measure | EA |
| Weight | 200000 g |
| Dimensions | 820 × 620 × 590 mm |
| Dangerous goods | No |
You might also like
BPA000163599

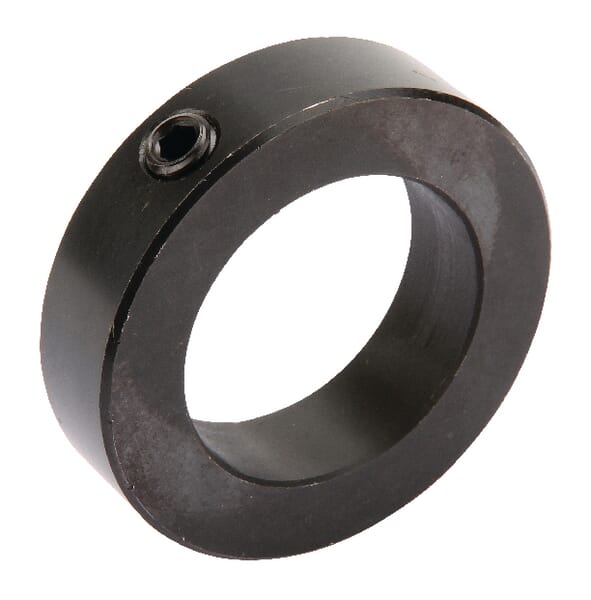

Kramp Lock collar 26 x 40 x 16 mm 705A26KRP025
£1.95 excl.
£2.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000205318

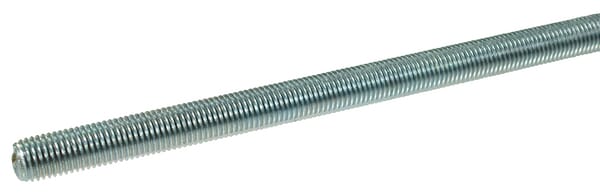

Kramp Threaded rod M10x1.50x1m steel 8.8 zinc-plated DIN 975 97510
£2.13 excl.
£2.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000319118

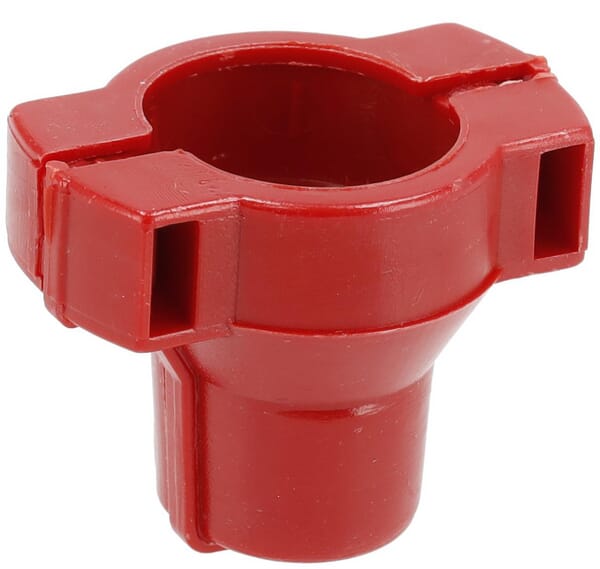

Kramp Sealing cap for MPPRVD MPPRVDLOCK
