About this product

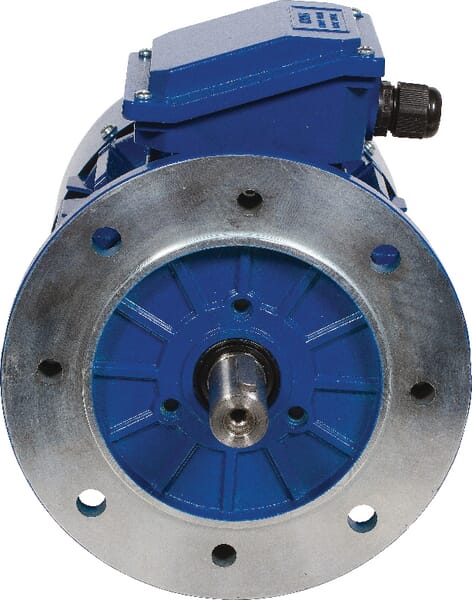

An 18.5 kW three-phase electric motor rated for 1500 rpm operation at 50 Hz, supplied as a single unit. The motor is configured for B5 flange mounting with a 4-pole design and IE3 energy efficiency classification. It operates at 400/690 V with a rated current of 33.15 A and delivers a torque of 121.01 N·m (122.26 N·m maximum). The motor features a cast-iron housing, A-mark bearing, and is equipped with PTC thermal protection. The shaft measures 110 mm in length with a 14 mm key width, and the flange has a 350 mm outside diameter with 300 mm pitch circle diameter. The unit weighs 169.4 kg and measures 687 mm in total length. It generates noise at approximately 76 dB(A) during operation. The motor is suitable for direct assembly, base mounting, or combination with a worm gear reducer, and may be configured in Y or Delta winding arrangements depending on voltage application.
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

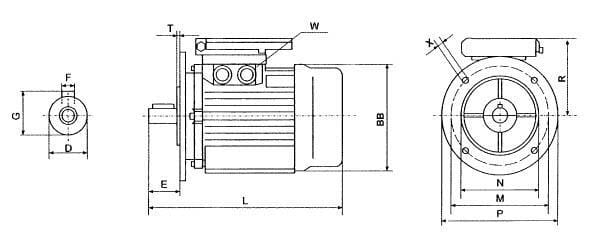

| BBDiameter fan cover | 360 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.87 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 51.5 mm |
| In | 33.15 A |
| Key width | 14 mm |
| Length of centring | 5 mm |
| LTotal length | 687 mm |
| Material housing | Cast iron |
| M (Nm) | 122.26 N·m |
| Moments of inertia (kgm²) | 0.1553 kg·m² |
| MPitch circle diameter | 300 mm |
| N1 | 1445 r/min |
| NDiameter of centring | 250 mm |
| Noise level | 76 dB(A) |
| Phase ~ | 3 |
| PN | 18.5 kW |
| POutside diameter flange | 350 mm |
| Power factor cos phi 100% | 0.86 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 259 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 121.01 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 169.4 kg |
| XDiameter mounting holes | 19 mm |
