£520.54
excl. VAT
£624.65 incl. VAT
£624.65
incl. VAT
£520.54 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

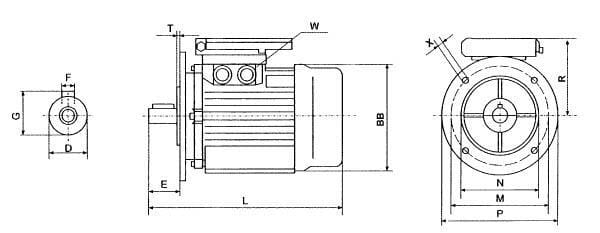

| BBDiameter fan cover | 220 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.8 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 24 mm |
| In | 4.71 A |
| Key width | 8 mm |
| Length of centring | 4 mm |
| LTotal length | 405 mm |
| M (Nm) | 22.35 N·m |
| Moments of inertia (kgm²) | 0.0177 kg·m² |
| MPitch circle diameter | 215 mm |
| N1 | 940 r/min |
| NDiameter of centring | 180 mm |
| Noise level | 64 dB(A) |
| Phase ~ | 3 |
| PN | 2.2 kW |
| POutside diameter flange | 250 mm |
| Power factor cos phi 100% | 0.68 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 220 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 27.1 kg |
| XDiameter mounting holes | 15 mm |
Logistics
| EAN | 8716106888610 |
|---|---|
| Unit of measure | EA |
| Weight | 36000 g |
| Dimensions | 430 × 300 × 250 mm |
| Dangerous goods | No |
You might also like
BPA000144688

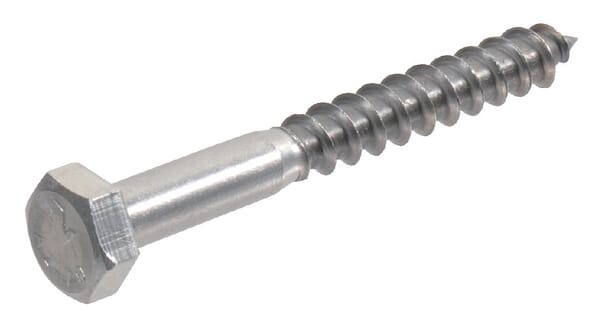

Kramp Wood screw 7x80mm, 12mm hex head, stainless steel, DIN 571 571780RVSP050
£0.46 excl.
£0.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268948

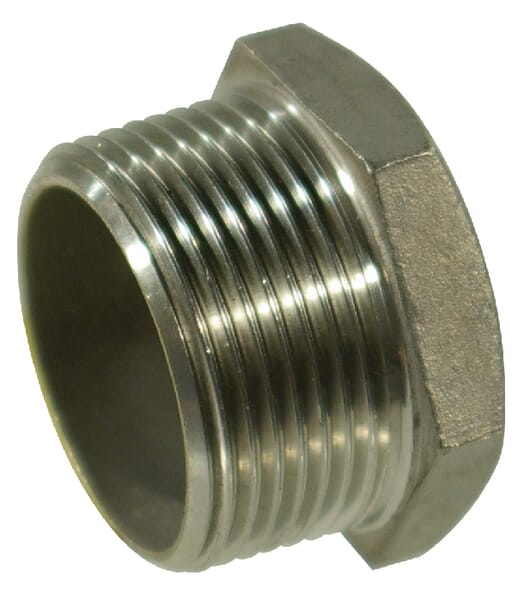

Kramp Hex. plug S.S. M 1 1/2" FG292112RVS
£6.97 excl.
£8.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000270445

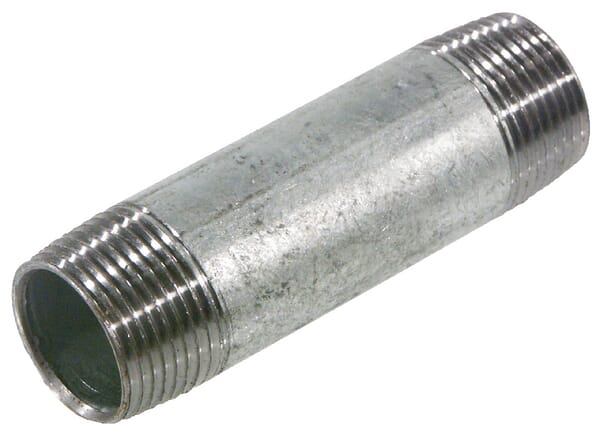

Kramp Pipe nipple galv. 3/8"x150mm FG2338150
£1.27 excl.
£1.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000319936
Kramp Bearing NWB07111
£13.83 excl.
£16.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000320347
Kramp Bearing NWB07536
£98.00 excl.
£117.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000098858

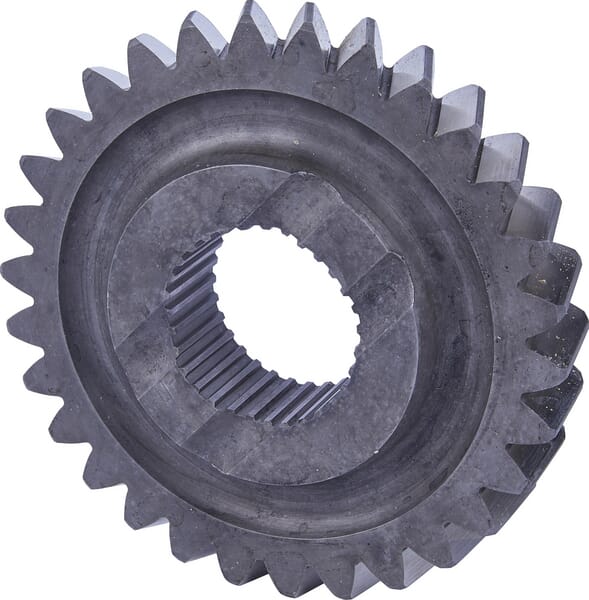

Kramp Gear Z=30 3612497M1N
