£3,499.80
excl. VAT
£4,199.76 incl. VAT
£4,199.76
incl. VAT
£3,499.80 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

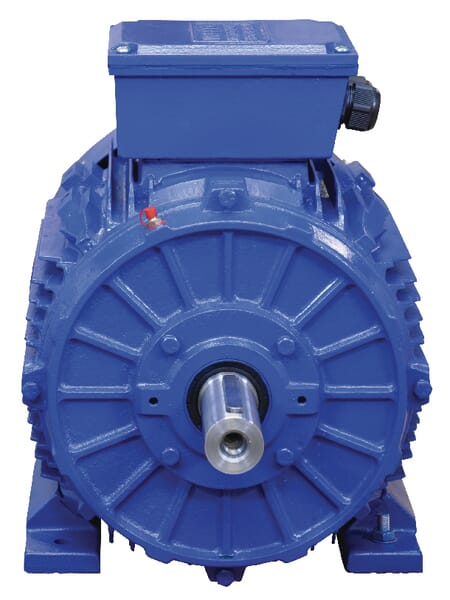

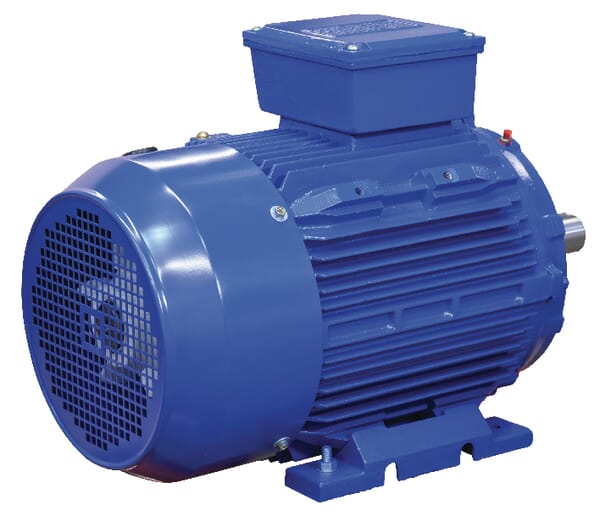

Product details

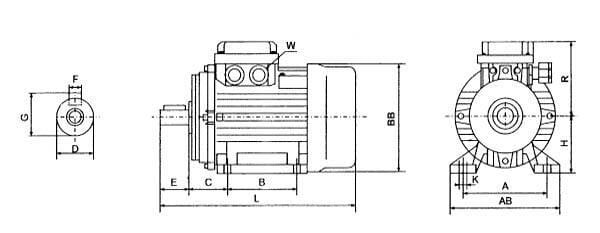

| ABDistance outside foot width side | 348 mm |
|---|---|
| ADistance bore foot width side | 279 mm |
| BBDiameter fan cover | 360 mm |
| BDistance bore foot length side | 279 mm |
| CDistance front motor till center first mounting hole | 121 mm |
| cos φ | 0.89 |
| Frequency | 50 Hz |
| GHeight shaft with key | 42.5 mm |
| HDistance underside foot till centre shaft | 180 mm |
| In | 38.37 A |
| KDiameter bore foot | 15 mm |
| Key width | 14 mm |
| LTotal length | 725 mm |
| Material housing | Cast iron |
| Moments of inertia (kgm²) | 0.1943 kg·m² |
| N1 | 1460 r/min |
| Noise level | 76 dB(A) |
| Phase ~ | 3 |
| PN | 22 kW |
| Power factor cos phi 100% | 0.87 |

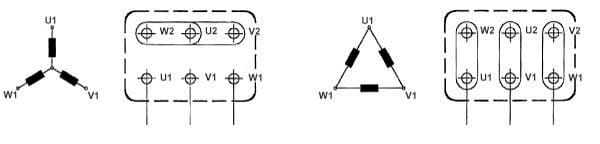

| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 259 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Torque | 143.90 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 196.0 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887842 |
|---|---|
| Unit of measure | EA |
| Weight | 194000 g |
| Dimensions | 820 × 610 × 450 mm |
| Dangerous goods | No |
You might also like
BPA000322069
Kramp Bearing NWB09437
£9.88 excl.
£11.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000015068
Kramp Water pump 03045239KR
£118.45 excl.
£142.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000270748

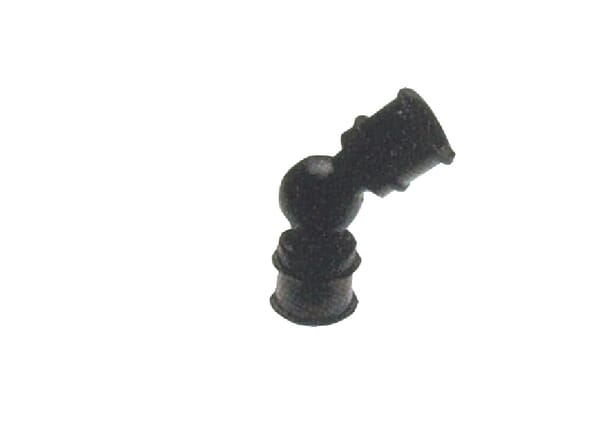

Kramp Elbow and primer Kawasaki FGP010638
£1.71 excl.
£2.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000306110
Kramp Plastic cap square 15x15mm KS111539
£0.32 excl.
£0.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304058

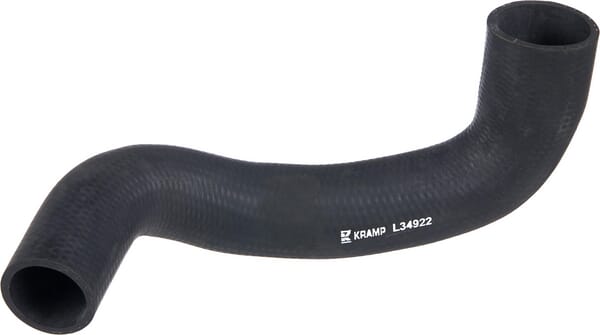

Kramp Radiator hose, bottom, suitable for John Deere L34922N
£21.00 excl.
£25.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000403582

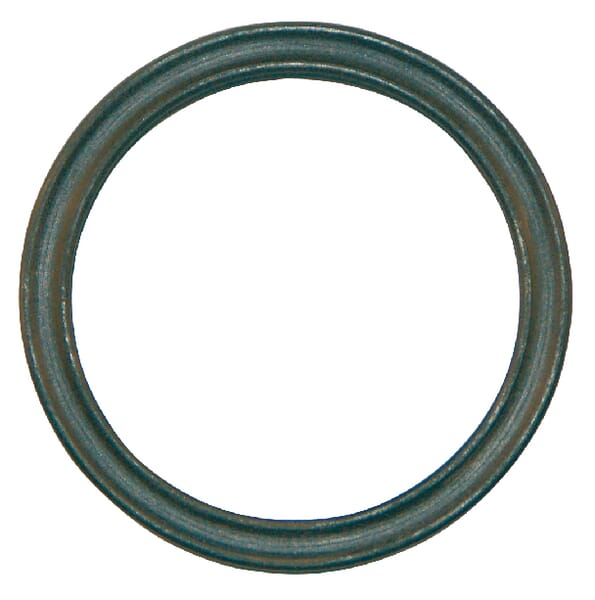

Kramp X-ring 47.35x1.78 70 shore 10x XR4735178P010
