£2,410.88
excl. VAT
£2,893.06 incl. VAT
£2,893.06
incl. VAT
£2,410.88 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

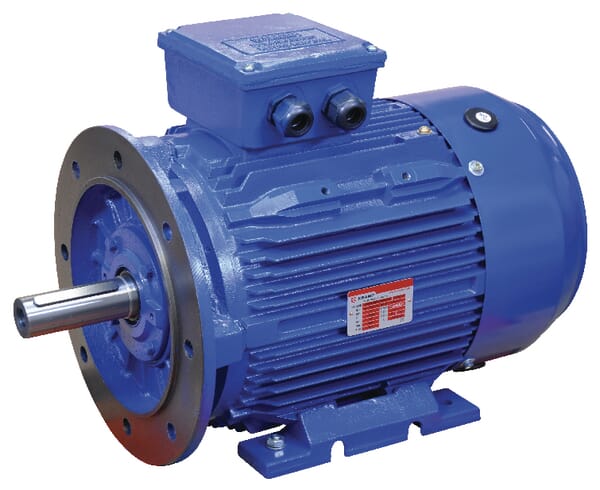

Product details

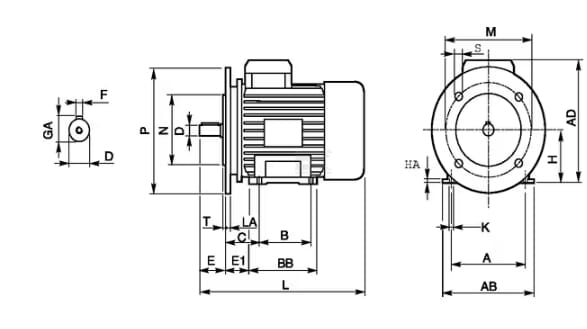

| A | 279 mm |
|---|---|
| B | 279 mm |
| C | 121 mm |
| cos φ | 0.89 |
| D | 48 mm |
| eta % | 93 % |
| F | 14 mm |
| Frequency | 50 Hz |
| H | 180 mm |
| In | 38.37 A |
| L | 725 mm |
| M | 300 mm |
| Material housing | Cast iron |
| Moments of inertia (kgm²) | 0.1943 kg·m² |
| Mounting foot hole diameter | 15 mm |
| N | 250 mm |
| N1 | 1460 r/min |
| Noise level | 76 dB(A) |
| P | 350 mm |
| Phase ~ | 3 |
| PN | 22 kW |
| Power factor cos phi 100% | 0.87 |
| S | 19 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Torque | 143.90 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 196.0 kg |
Logistics
| EAN | 8716106887828 |
|---|---|
| Unit of measure | EA |
| Weight | 100000 g |
| Dimensions | 830 × 440 × 630 mm |
| Dangerous goods | No |
You might also like
BPA000329354
Kramp O-ring 19.3x2.4mm 90 shore 10x OR193024090P010
£1.82 excl.
£2.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000331228
Kramp O-ring 89.2x5.7mm 70 shore 10x OR8920570P010
£7.73 excl.
£9.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305666

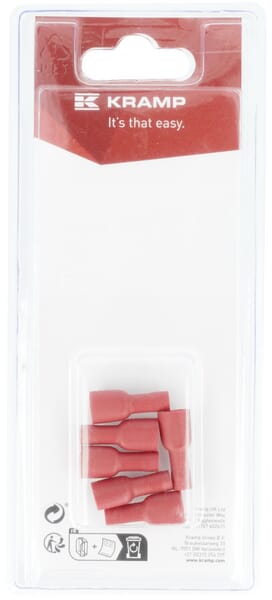

Kramp Terminal blade female, red 6.3x0.8mm - 0.5-1.0mm² (6) KRLA9150P06B
£1.61 excl.
£1.94 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000302426

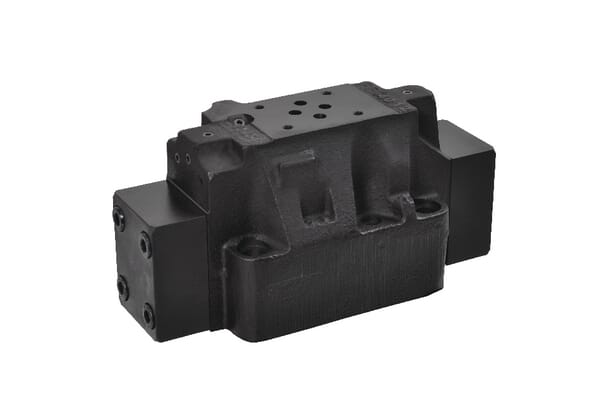

Kramp Electrical valve NG16 KREV907C2
£791.79 excl.
£950.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000130382
Kramp Oil seal 50x80x10mm type:CB DIN 3760 1x 508010CBP001
£2.57 excl.
£3.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356778
Kramp Sprocket Duplex 9 teeth 1" chain 16 B-2 SD109
£15.98 excl.
£19.18 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000195578

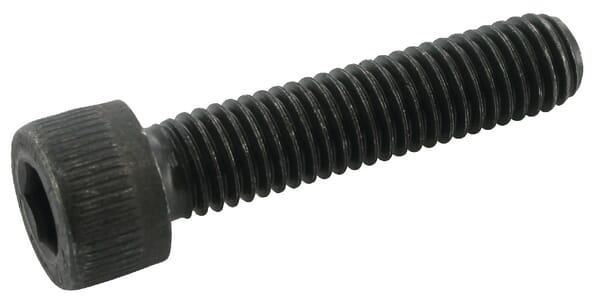

Kramp Hexagon socket head cap screw DIN912 M10x35 steel 12.9 9121035129B
