£3,333.83
excl. VAT
£4,000.60 incl. VAT
£4,000.60
incl. VAT
£3,333.83 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

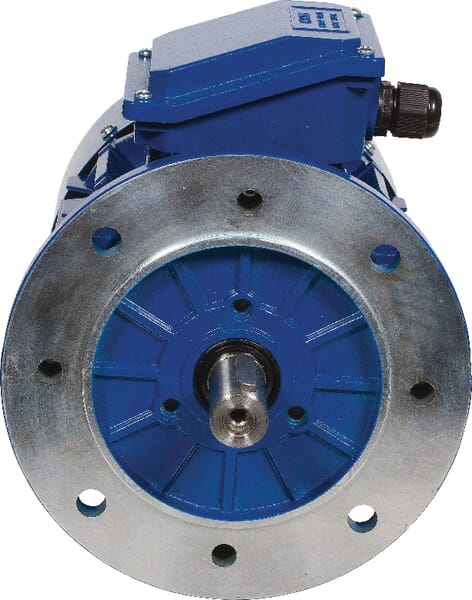

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

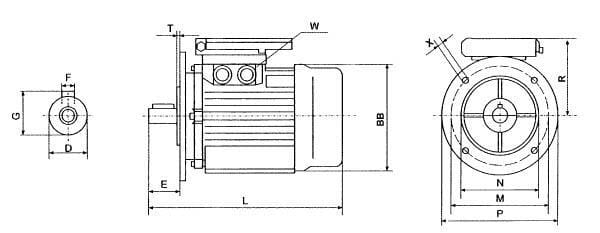

| BBDiameter fan cover | 360 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.89 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 51.5 mm |
| In | 38.37 A |
| Key width | 14 mm |
| Length of centring | 5 mm |
| LTotal length | 725 mm |
| Material housing | Cast iron |
| M (Nm) | 143.89 N·m |
| Moments of inertia (kgm²) | 0.1943 kg·m² |
| MPitch circle diameter | 300 mm |
| N1 | 1460 r/min |
| NDiameter of centring | 250 mm |
| Noise level | 76 dB(A) |
| Phase ~ | 3 |
| PN | 22 kW |
| POutside diameter flange | 350 mm |
| Power factor cos phi 100% | 0.87 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 259 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 143.90 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 196.0 kg |
| XDiameter mounting holes | 19 mm |
Logistics
| EAN | 8716106887798 |
|---|---|
| Unit of measure | EA |
| Weight | 190000 g |
| Dimensions | 830 × 600 × 450 mm |
| Dangerous goods | No |
You might also like
BPA000309346
Kramp Set of Superseal 1 pin connectors plug female LA89004SETKR
£1.36 excl.
£1.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000203765
Kramp Hexagon head bolt DIN933 UNF 3/4"x2 1/2" steel zinc-plated 8.8 93334212UNF
£5.40 excl.
£6.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000088005

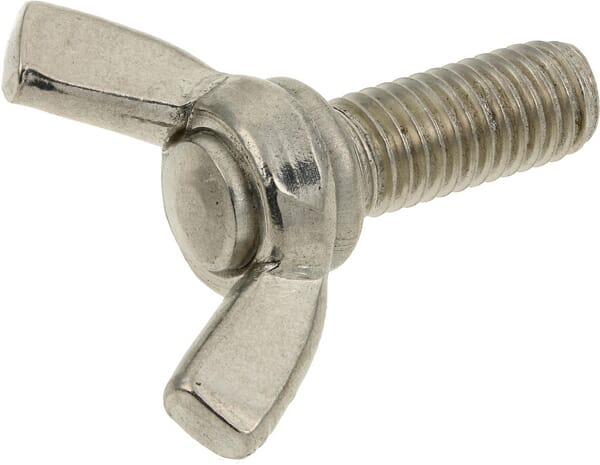

Kramp Wing screw DIN316 M8x20 stainless steel A2 316820RVSAMP001
