£438.00
excl. VAT
£525.60 incl. VAT
£525.60
incl. VAT
£438.00 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

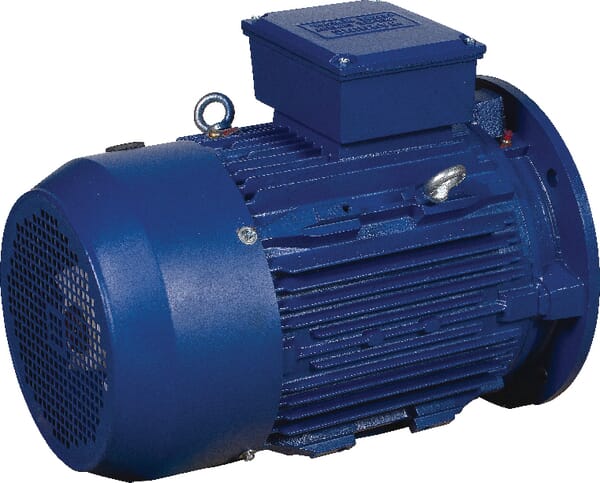

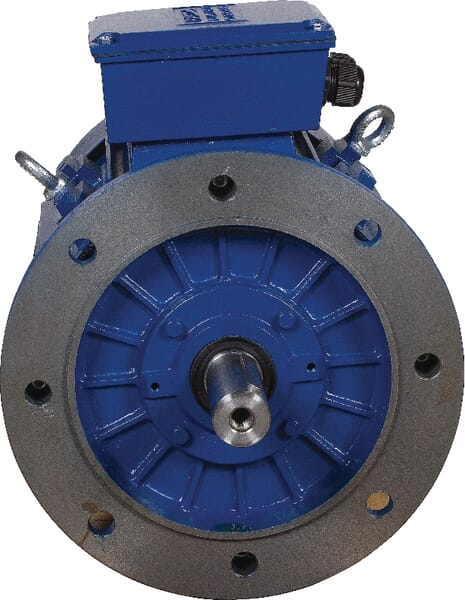

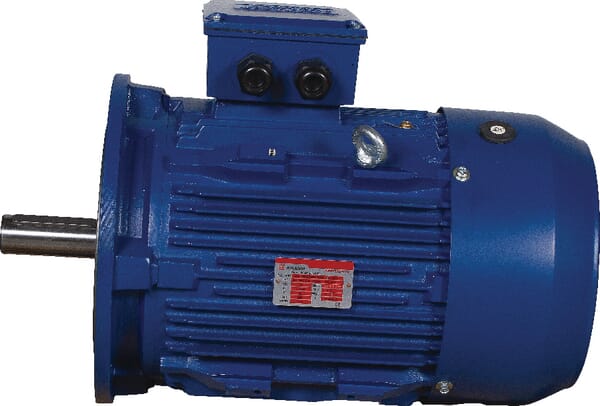

Product details

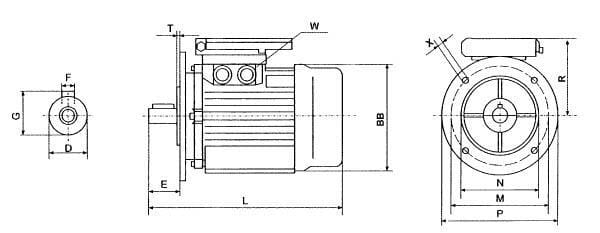

| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 199 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.89 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 24 mm |
| In | 5.59 A |
| Key width | 8 mm |
| Length of centring | 4 mm |
| LTotal length | 388 mm |
| M (Nm) | 10.05 N·m |
| Moments of inertia (kgm²) | 0.0048 kg·m² |
| MPitch circle diameter | 215 mm |
| N1 | 2851 r/min |
| NDiameter of centring | 180 mm |
| Noise level | 76 dB(A) |
| Phase ~ | 3 |
| PN | 3 kW |
| POutside diameter flange | 250 mm |
| Power factor cos phi 100% | 0.89 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 165 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M20 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 23.7 kg |
| XDiameter mounting holes | 15 mm |
Compatible accessories
Parts and components that work with this product.
EM910006VA3

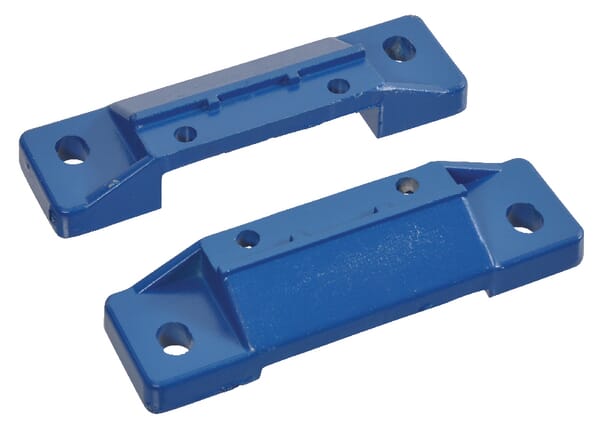

Kramp Base mounting kit 100 EM910006VA3
£14.84 excl.
£17.81 incl.
EM9100B14FLA3
Kramp Engine flange 100-B14 EM9100B14FLA3
£16.89 excl.
£20.27 incl.
PKZM0110
Eaton Engine circuit breaker PKZM0110
£133.04 excl.
£159.65 incl.
L1251
MP Filtri Bell housing GR-1- 250mm L1251
£35.34 excl.
£42.41 incl.
L2252

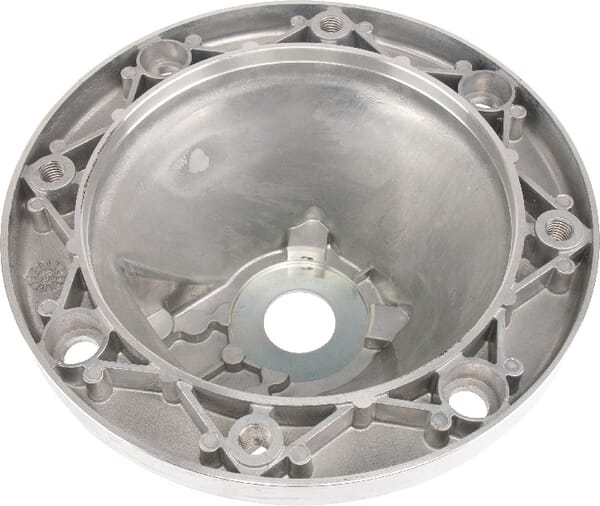

MP Filtri Bell housing GR-2- 250mm L2252
£35.02 excl.
£42.02 incl.
Logistics
| EAN | 8716106889495 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000258582

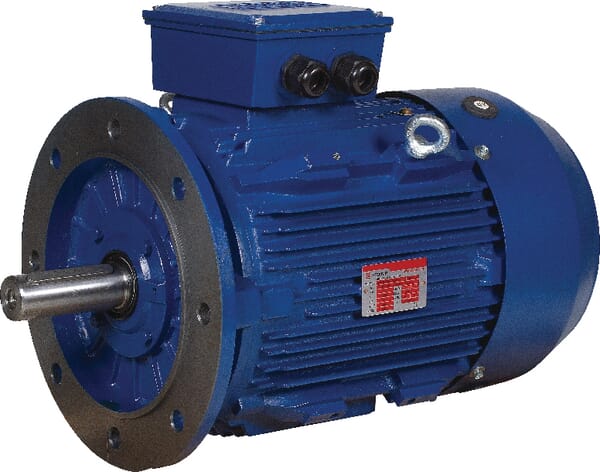

Kramp Electric motor 3 kW EM100L2B5300IE3AKR
£414.21 excl.
£497.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000187442
Kramp Spiral roll pin, standard duty 8x70mm ISO8750 8750870
£0.79 excl.
£0.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000375704

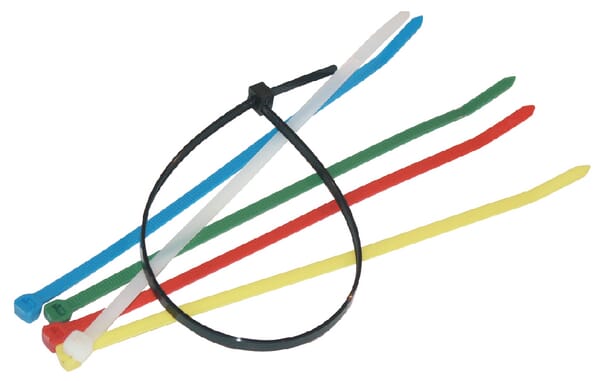

Kramp Cable tie 2.5x100mm, orange, 100pcs TR0125100ORA
£0.78 excl.
£0.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000309432

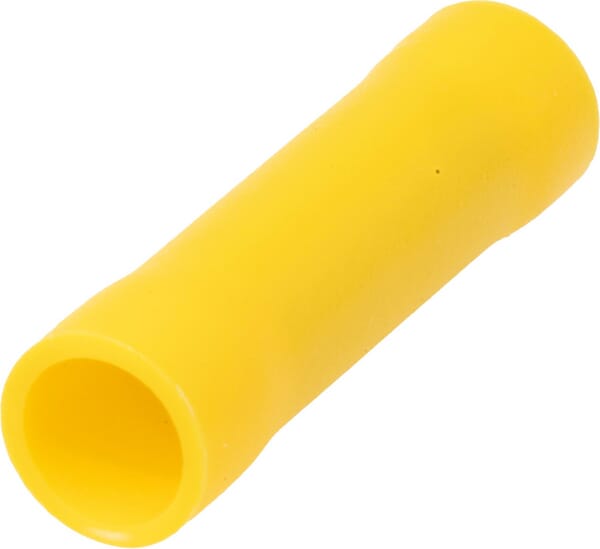

Kramp Butt connector, yellow, 4-6mm² (50x) LA9070CKR
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000061296
Kramp Share point carbide RH suitable for Case IH 1867672SHCN
£80.56 excl.
£96.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358069

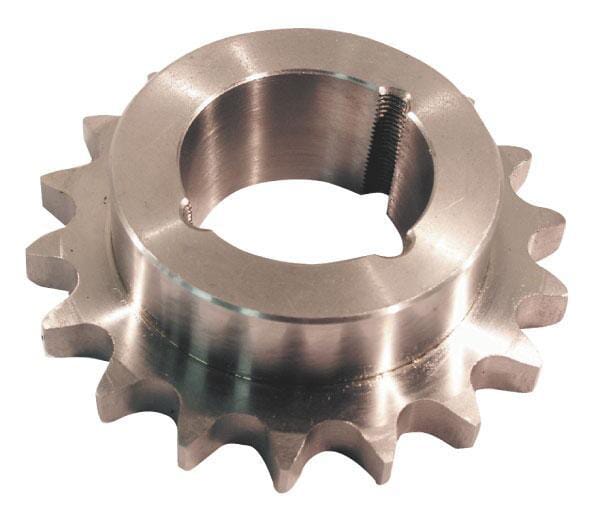

Kramp Sprocket Simplex 21 teeth 3/8" chain 06 B-1 for taperlock bush 1008 SE3821TL
