About this product

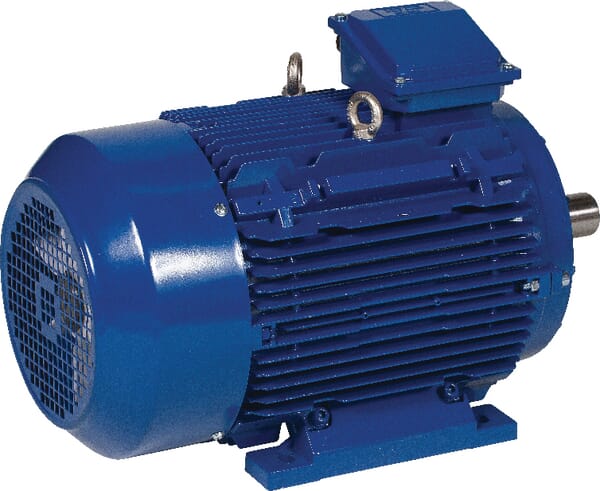

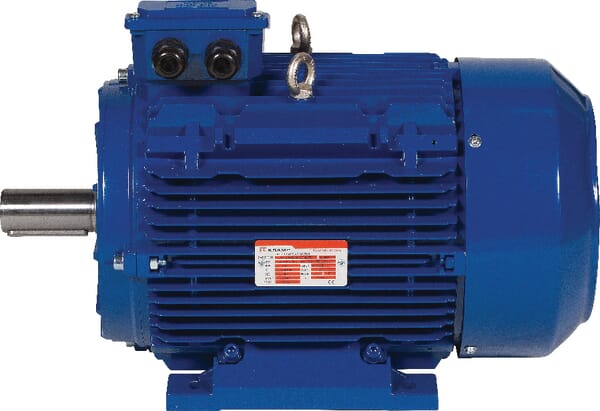

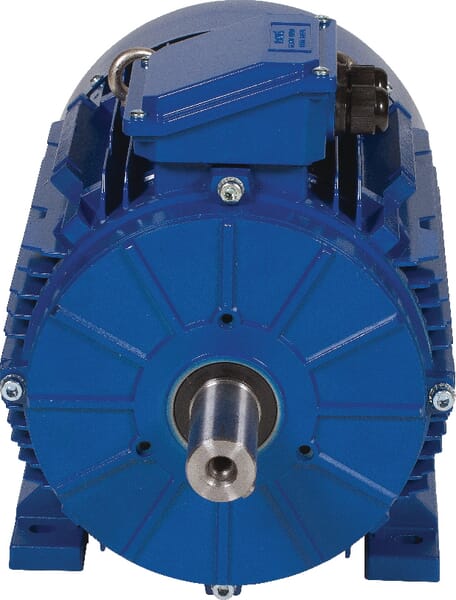

A three-phase foot-mounted electric motor rated at 4 kW output, delivering 1435 r/min nominal speed. The motor operates at 230/400 V, 50 Hz with an input current of 8.25 A and a power factor (cos φ) of 0.79 at rated load; at 100% load the power factor reaches 0.82. The shaft measures 28 mm diameter by 60 mm length with an 8 mm keyway. The motor is supplied as a single unit.
The motor conforms to IE3 efficiency class under IEC 60034-30, offering improved energy efficiency compared to IE2 class machines. It features an aluminium housing, A-brand bearings, and is equipped with PTC thermal protection. The motor is IP55 rated with Insulation Class F and operates at a noise level of 65 dB(A). The shaft height above the foot base is 112 mm, and the mounting bolt holes are spaced 190 mm apart (bore width) and 140 mm apart (bore length), with foot bore diameter of 12 mm. The terminal box is located 179 mm from the shaft centre. Total motor length is 405 mm.

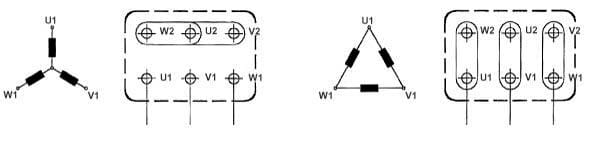

The motor weighs 34.4 kg and carries EAN 8716106888887. It is configured as model 300 (star connection); alternative winding configuration 500 (delta connection with star/triangle start-up capability) may be available. No dangerous goods restrictions apply to this product.
Product details

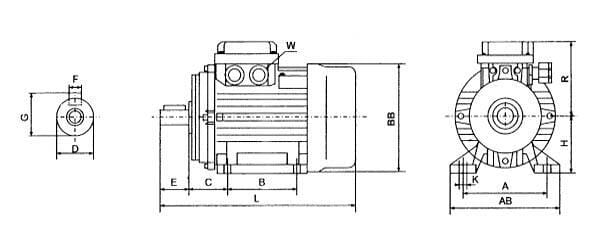

| ABDistance outside foot width side | 230 mm |
|---|---|
| ADistance bore foot width side | 190 mm |
| BBDiameter fan cover | 220 mm |
| BDistance bore foot length side | 140 mm |
| CDistance front motor till center first mounting hole | 70 mm |
| cos φ | 0.79 |
| GHeight shaft with key | 24 mm |
| HDistance underside foot till centre shaft | 112 mm |
| In | 8.25 A |
| KDiameter bore foot | 12 mm |
| Key width | 8 mm |
| LTotal length | 405 mm |
| Moments of inertia (kgm²) | 0.0153 kg·m² |
| N1 | 1435 r/min |
| Noise level | 65 dB(A) |
| Phase ~ | 3 |
| PN | 4 kW |
| Power factor cos phi 100% | 0.82 |
| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 179 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M25 x 1,5 |
| Unit | Each |
| Voltage | 230/400V 50 Hz V |
| Weight | 33.9 kg |

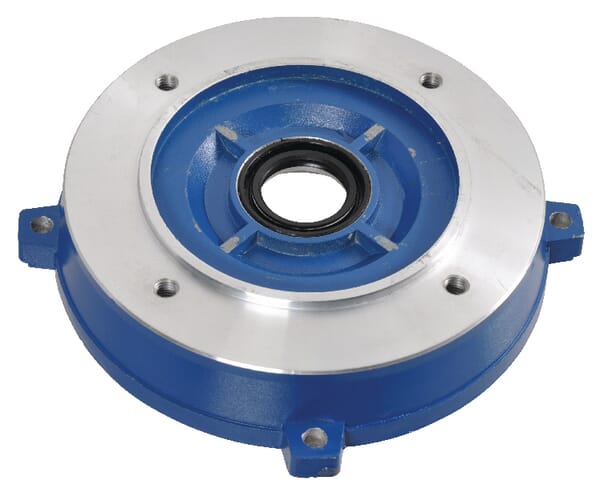

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106888887 |
|---|---|
| Unit of measure | EA |
| Weight | 34400 g |
| Dimensions | 410 × 305 × 240 mm |
| Dangerous goods | No |
