£493.46
excl. VAT
£592.15 incl. VAT
£592.15
incl. VAT
£493.46 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

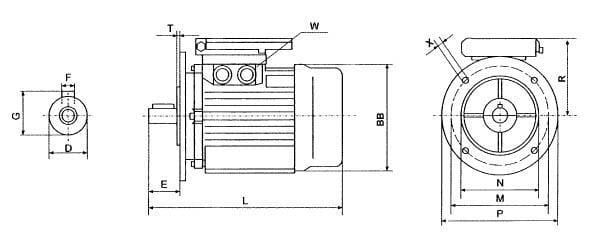

| BBDiameter fan cover | 220 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.79 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 31.0 mm |
| In | 8.25 A |
| Key width | 8 mm |
| Length of centring | 4 mm |
| LTotal length | 405 mm |
| M (Nm) | 26.62 N·m |
| Moments of inertia (kgm²) | 0.0153 kg·m² |
| MPitch circle diameter | 215 mm |
| N1 | 1435 r/min |
| NDiameter of centring | 180 mm |
| Noise level | 65 dB(A) |
| Phase ~ | 3 |
| PN | 4 kW |
| POutside diameter flange | 250 mm |
| Power factor cos phi 100% | 0.82 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 179 mm |
| Shaft diameter | 28 mm |
| Shaft length | 60 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 33.9 kg |
| XDiameter mounting holes | 15 mm |
Compatible accessories
Parts and components that work with this product.

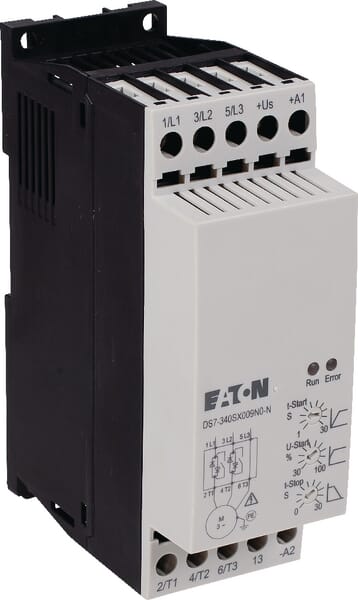

DS7340SX009N0N
Eaton Softstart stop 4kW 24AC/DC DS7340SX009N0N
£395.26 excl.
£474.31 incl.

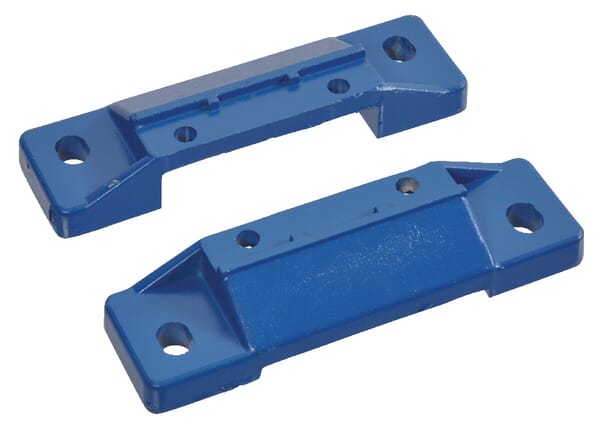

EM911206VA3
Kramp Base mounting kit 112 EM911206VA3
£18.78 excl.
£22.54 incl.

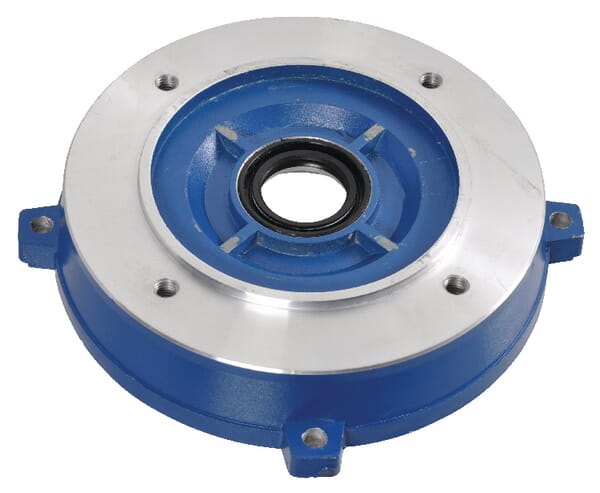

EM9112B14FLA3
Kramp Engine flange 112-B14 EM9112B14FLA3
£26.71 excl.
£32.05 incl.
PKZM0110
Eaton Engine circuit breaker PKZM0110
£133.04 excl.
£159.65 incl.
L1251
MP Filtri Bell housing GR-1- 250mm L1251
£35.34 excl.
£42.41 incl.
L2252
MP Filtri Bell housing GR-2- 250mm L2252
£35.02 excl.
£42.02 incl.

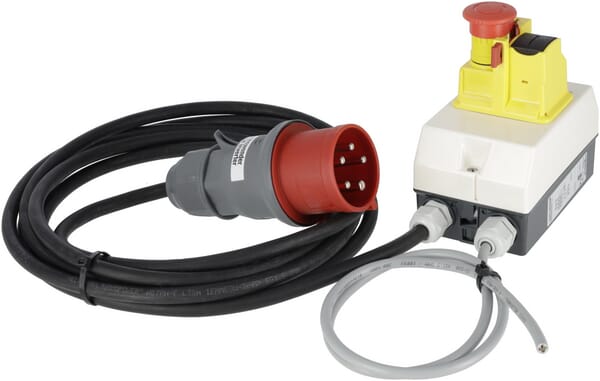

BK4AANUITNOOD
Kramp Control box 4kW On/Off BK4AANUITNOOD
£474.60 excl.
£569.52 incl.
Logistics
| EAN | 8716106888818 |
|---|---|
| Unit of measure | EA |
| Weight | 35000 g |
| Dimensions | 450 × 320 × 285 mm |
| Dangerous goods | No |
You might also like
Free shipping

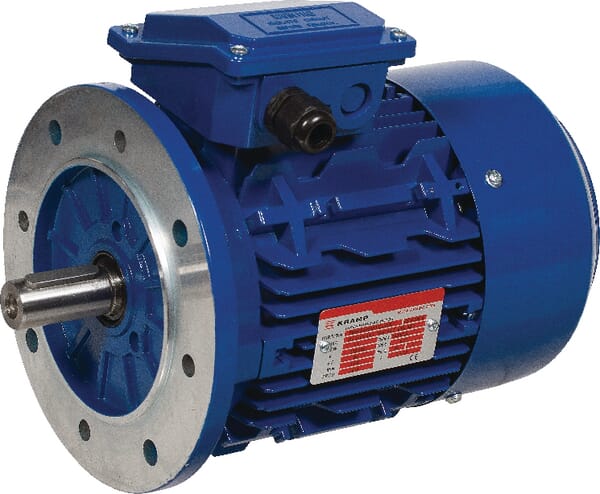

BPA000258604
