£1,421.28
excl. VAT
£1,705.54 incl. VAT
£1,705.54
incl. VAT
£1,421.28 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

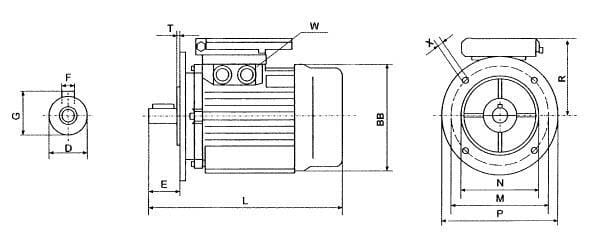

| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 259 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.82 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 33 mm |
| In | 11 A |
| Key width | 10 mm |
| Length of centring | 4 mm |
| LTotal length | 505 mm |
| M (Nm) | 55.58 N·m |
| Moments of inertia (kgm²) | 0.054 kg·m² |
| MPitch circle diameter | 265 mm |
| N1 | 945 r/min |
| NDiameter of centring | 230 mm |
| Noise level | 68 dB(A) |
| Phase ~ | 3 |
| PN | 5.5 kW |
| POutside diameter flange | 300 mm |
| Power factor cos phi 100% | 0.71 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 259 mm |
| Shaft length | 80 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 55.7 kg |
| XDiameter mounting holes | 15 mm |
Logistics
| EAN | 8716106888375 |
|---|---|
| Unit of measure | EA |
| Weight | 59000 g |
| Dimensions | 530 × 360 × 310 mm |
| Dangerous goods | No |
You might also like
BPA000202004
Kramp Hexagon head bolt DIN933 M6x30 steel zinc-plated 10.9 933630109
£0.11 excl.
£0.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000173800
Kramp Self tapping screw 3.5x16mm PH2 countersunk, stainless steel, DIN 7504 7504P3516RVSP100
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000343457

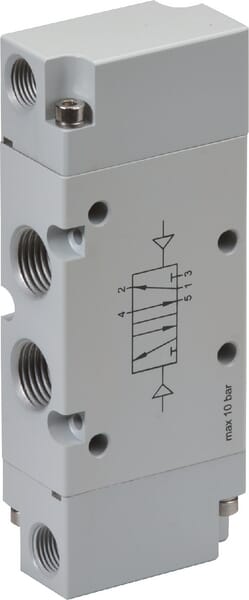

Kramp Valve, 5/2 air piloted 1/4" PV52B14
£60.35 excl.
£72.42 incl.
In stock
Expected to ship on Monday 21 September
BPA000322218
Kramp Bearing NWB09609
£13.69 excl.
£16.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000364127

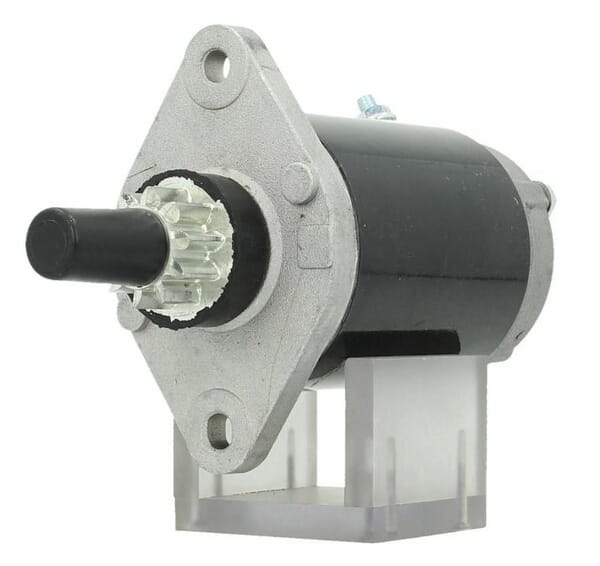

Kramp Starter 12V, 0.5kW, 10-teeth, CCW, STA2617179
