£680.30
excl. VAT
£816.36 incl. VAT
£816.36
incl. VAT
£680.30 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

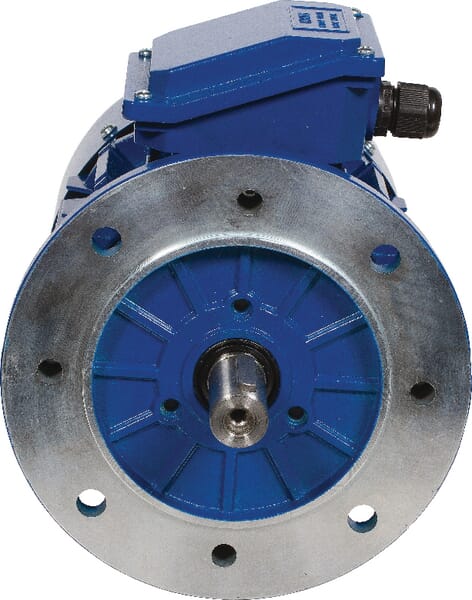

Product details

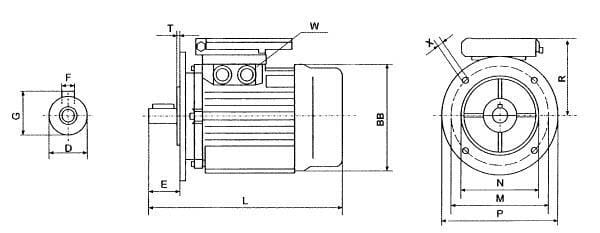

| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 259 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.82 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 41.0 mm |
| In | 10.81 A |
| Key width | 10 mm |
| Length of centring | 4 mm |
| LTotal length | 467 mm |
| M (Nm) | 36.73 N·m |
| Moments of inertia (kgm²) | 0.0345 kg·m² |
| MPitch circle diameter | 265 mm |
| N1 | 1430 r/min |
| NDiameter of centring | 230 mm |
| Noise level | 71 dB(A) |
| Phase ~ | 3 |
| PN | 5.5 kW |
| POutside diameter flange | 300 mm |
| Power factor cos phi 100% | 0.84 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 200 mm |
| Shaft length | 80 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 47.4 kg |
| XDiameter mounting holes | 15 mm |
Compatible accessories
Parts and components that work with this product.
DS7340SX012N0N

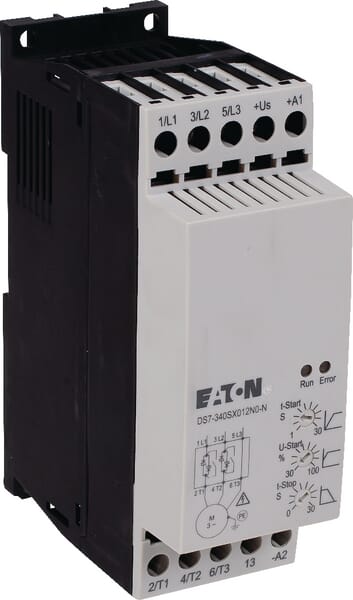

Eaton Softstart stop 5.5kW 24AC/DC DS7340SX012N0N
£422.43 excl.
£506.92 incl.
EM913206VSA3

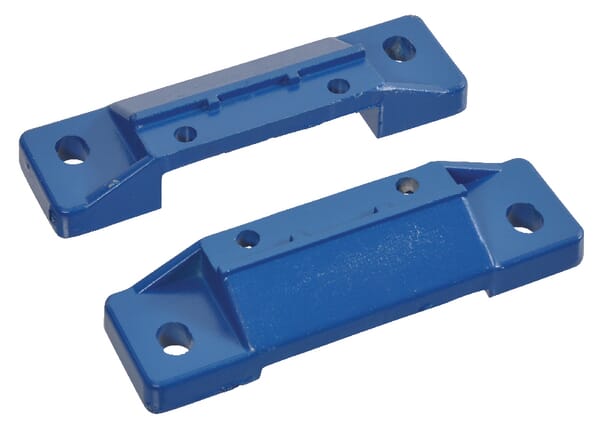

Kramp Base mounting kit 132-S EM913206VSA3
£30.75 excl.
£36.90 incl.
EM9132B14FLA3
Kramp Engine flange 132-B14 EM9132B14FLA3
£48.51 excl.
£58.21 incl.
PKZM0112
Eaton Motor Protection Circuit breaker PKZM0112
£164.11 excl.
£196.93 incl.
Logistics
| EAN | 8716106888276 |
|---|---|
| Unit of measure | EA |
| Weight | 50000 g |
| Dimensions | 650 × 350 × 350 mm |
| Dangerous goods | No |
You might also like
BPA000037587
Kramp M.F. industrial yellow 1L 123008KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000247956
Kramp Coach bolt washer diameter 8.4x40x1.5mm, Stainless steel A2 CR840RVSP050
£0.33 excl.
£0.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000191891
Kramp Lift arm RH/LH 885444M91KR
£88.42 excl.
£106.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000321951
Kramp Bearing NWB09305
£32.55 excl.
£39.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329423
Kramp O-ring 200x6mm 75 shore Viton OR2006VP001
£32.58 excl.
£39.10 incl.
In stock
Expected to ship on Monday 21 September
BPA000382911

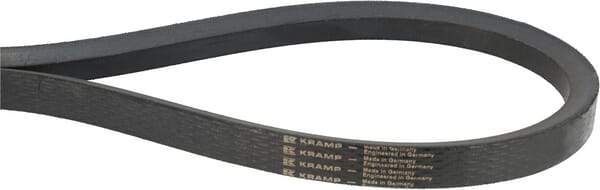

Kramp V-belt 13x775 Li VB13775KR
