£1,347.34
excl. VAT
£1,616.81 incl. VAT
£1,616.81
incl. VAT
£1,347.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

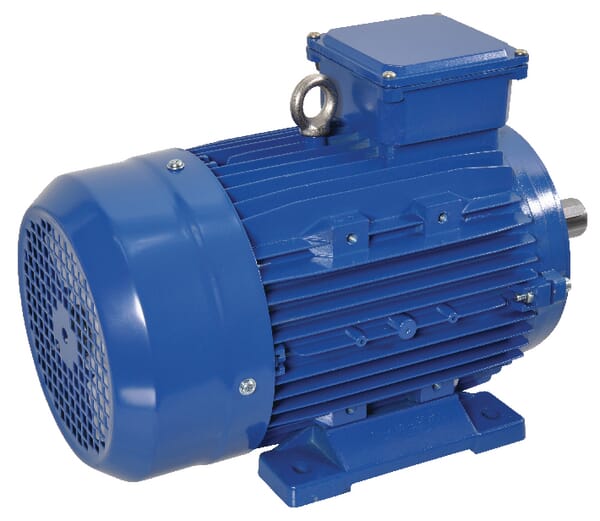

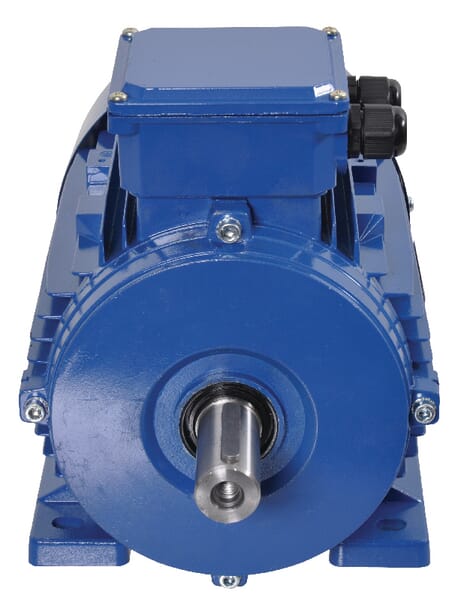

Product details

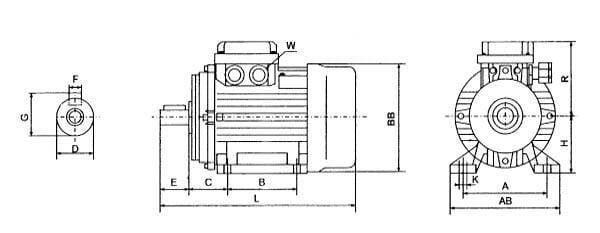

| ABDistance outside foot width side | 255 mm |
|---|---|
| ADistance bore foot width side | 216 mm |
| BBDiameter fan cover | 259 mm |
| BDistance bore foot length side | 178 mm |
| CDistance front motor till center first mounting hole | 89 mm |
| Frame size | 132 mm |
| GHeight shaft with key | 33 mm |
| HDistance underside foot till centre shaft | 132 mm |
| In | 13.65 A |
| KDiameter bore foot | 12 mm |
| Key width | 10 mm |
| LTotal length | 505 mm |
| Moments of inertia (kgm²) | 0.019 kg·m² |
| N1 | 2930 r/min |
| Noise level | 80 dB(A) |
| Phase ~ | 3 |
| PN | 7.5 kW |
| Power factor cos phi 100% | 0.92 |
| RDistance center shaft to end terminal box | 200 mm |
| Shaft length | 80 mm |
| Swivel | M25 x 1,5 |
| Torque Tmax/Tn | 3.6 N·m |
| Torque Ts/Tn | 2.6 |
| Unit | Each |

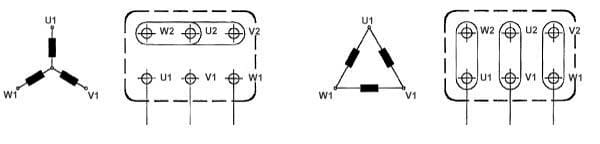

| Voltage | 400/690V 50Hz V |
| Weight | 51.7 kg |
Logistics
| EAN | 8716106888597 |
|---|---|
| Unit of measure | EA |
| Weight | 70000 g |
| Dimensions | 500 × 390 × 380 mm |
| Dangerous goods | No |
You might also like
BPA000185778

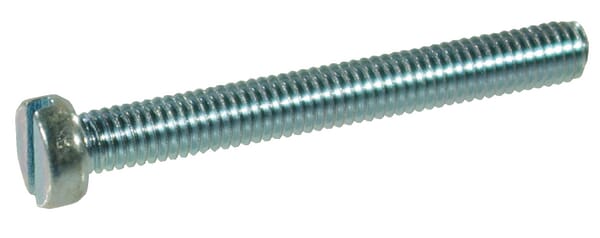

Kramp Slotted cheese head screw DIN84 M4x16 stainless steel A2 84416RVSP025
£0.13 excl.
£0.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000195143

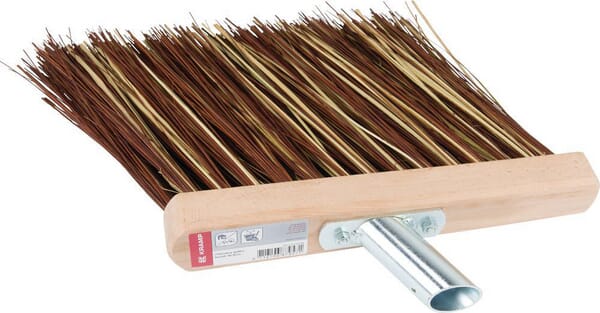

Kramp Stable gutter brush 30.5cm 9102579KR
£42.36 excl.
£50.83 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304892
Kramp Dungarees, size L, olive, 4 Way Stretch, by KW203445002098
£68.51 excl.
£82.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327802

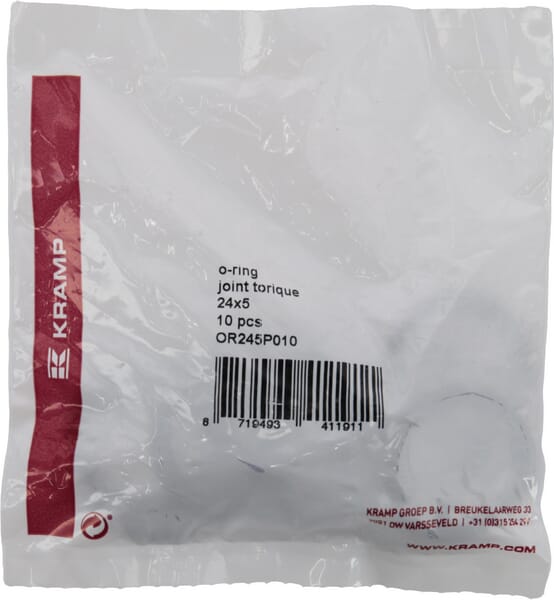

Kramp O-ring 24x5 70 shore 10x OR245P010
£8.10 excl.
£9.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318107
Kramp Bearing NWB06237
£79.96 excl.
£95.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000059076

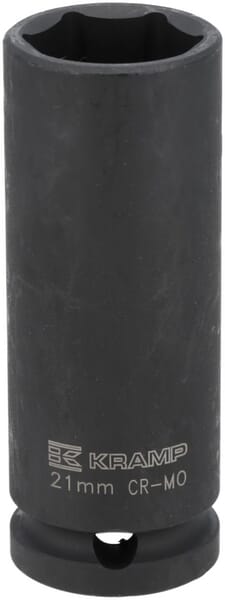

Kramp Impact socket long 1/2" 21 mm 1803544621KR
£7.42 excl.
£8.90 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000250405

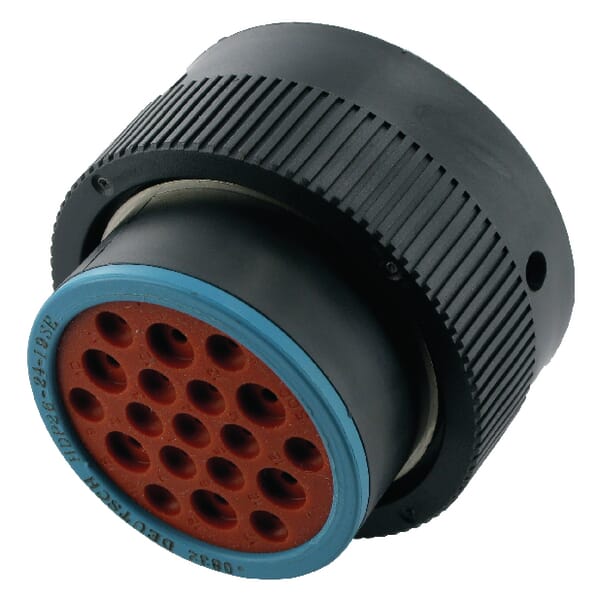

TE Connectivity DEUTSCH Plug housing 19 P. Female HDP20 DSHDP262419SE
