£1,230.59
excl. VAT
£1,476.71 incl. VAT
£1,476.71
incl. VAT
£1,230.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

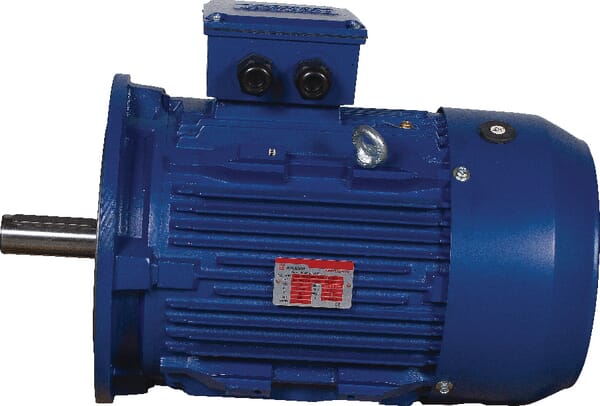

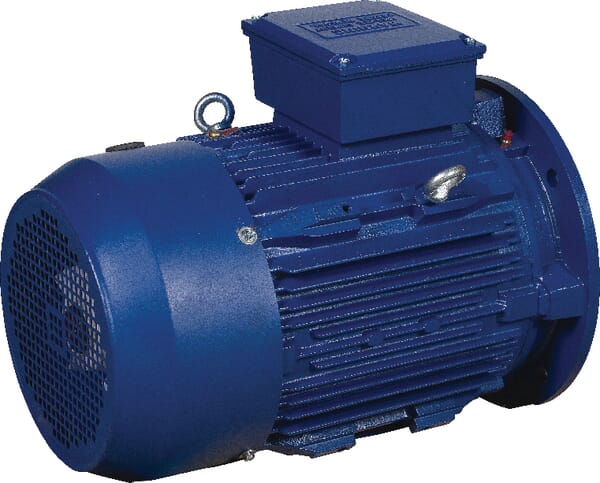

Product details

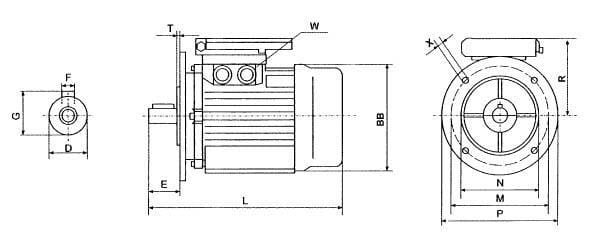

| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 259 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.88 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 33 mm |
| In | 13.65 A |
| Key width | 10 mm |
| Length of centring | 4 mm |
| LTotal length | 505 mm |
| M (Nm) | 24.61 N·m |
| Moments of inertia (kgm²) | 0.019 kg·m² |
| MPitch circle diameter | 265 mm |
| N1 | 2910 r/min |
| NDiameter of centring | 230 mm |
| Noise level | 80 dB(A) |
| Phase ~ | 3 |
| PN | 7.5 kW |
| POutside diameter flange | 300 mm |
| Power factor cos phi 100% | 0.92 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 200 mm |
| Shaft length | 80 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 51.7 kg |
| XDiameter mounting holes | 15 mm |
Compatible accessories
Parts and components that work with this product.
DS7340SX016N0N

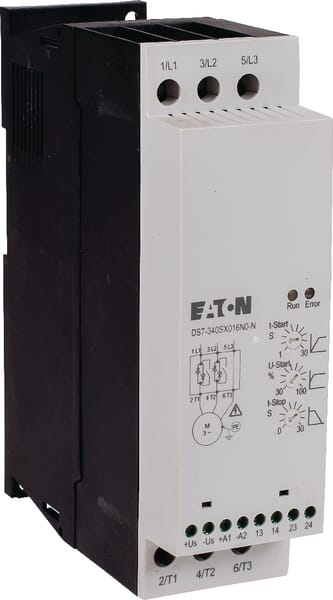

Eaton Softstart stop 7.5kW 24AC/DC DS7340SX016N0N
£433.71 excl.
£520.45 incl.
EM913206VMA3

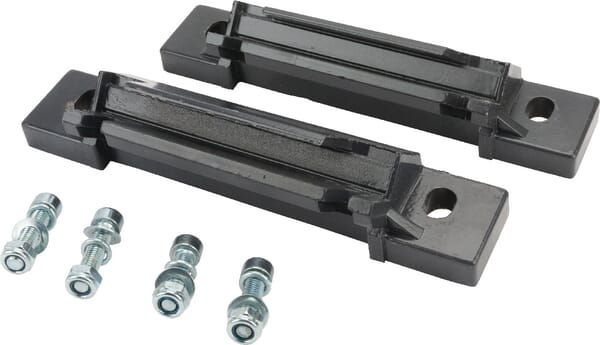

Kramp Base mounting kit 132-M EM913206VMA3
£37.43 excl.
£44.92 incl.
EM9132B14FLA3

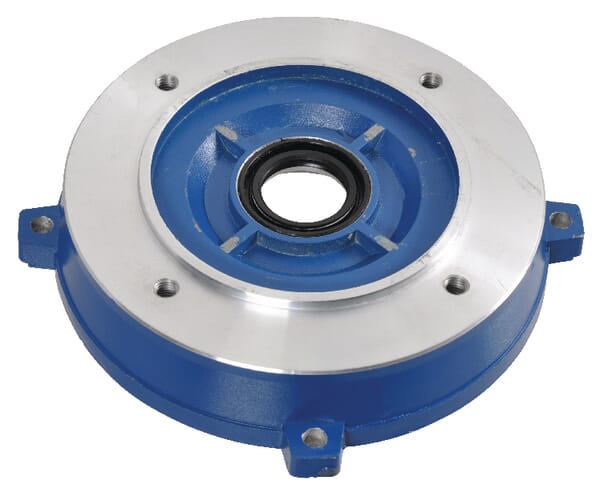

Kramp Engine flange 132-B14 EM9132B14FLA3
£48.51 excl.
£58.21 incl.
PKZM0116

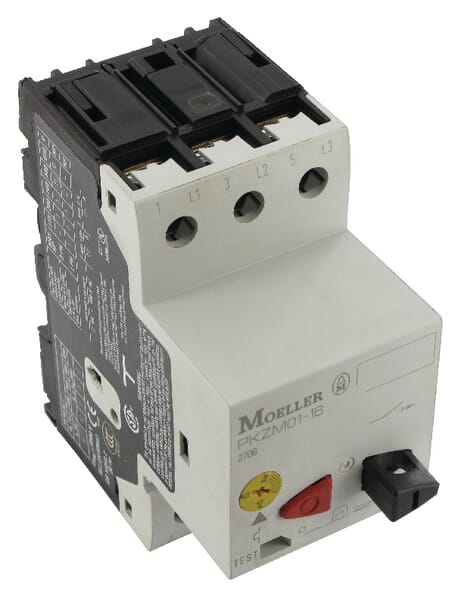

Eaton Engine circuit breaker PKZM0116
£163.94 excl.
£196.73 incl.
BK75STERDRIEH

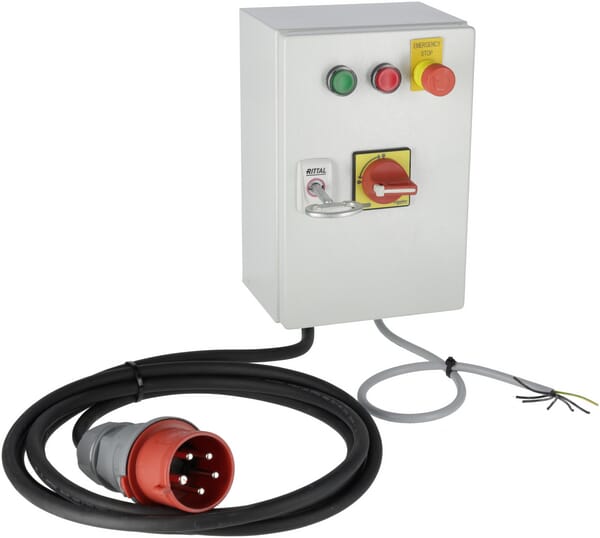

Kramp Control box 7,5kW Star-Delta BK75STERDRIEH
£2,102.36 excl.
£2,522.83 incl.
Logistics
| EAN | 8716106888573 |
|---|---|
| Unit of measure | EA |
| Weight | 54100 g |
| Dimensions | 550 × 420 × 520 mm |
| Dangerous goods | No |
You might also like
BPA000404033

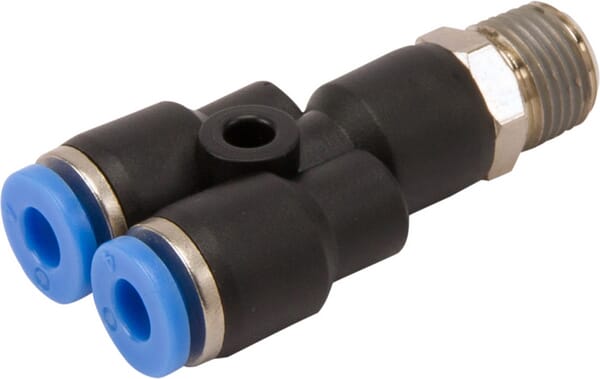

Kramp Push-in fitting YCRMT418P
£3.09 excl.
£3.71 incl.
In stock
Expected to ship on Monday 21 September
BPA000068381
Kramp Oil seal 13/16x1-1/4x3/16" type:CB DIN 3760 1x 20623175476CBP001
£4.79 excl.
£5.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000187440
Kramp Spiral roll pin, standard duty 8x50mm ISO8750 8750850
£0.59 excl.
£0.71 incl.
In stock
Expected to ship on Monday 21 September
BPA000277935

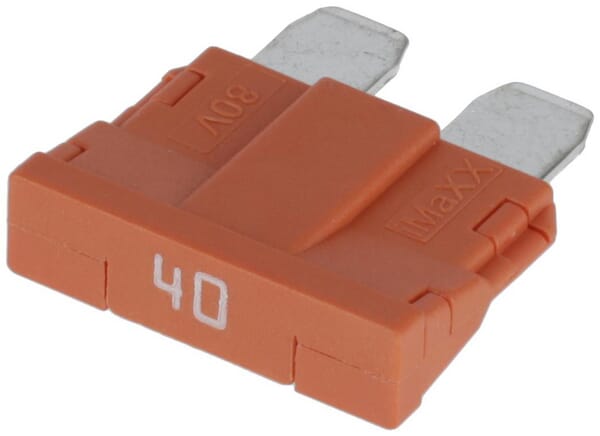

Kramp Fuse standard blade 80V 40A orange pack 10x FS1840KR
£29.48 excl.
£35.38 incl.
In stock
Expected to ship on Monday 21 September
BPA000203053

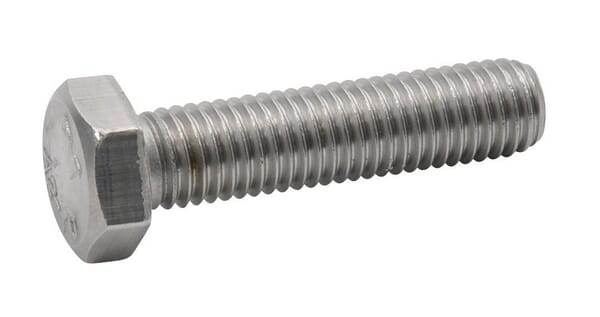

Kramp Hexagon head bolt DIN933 M10x16 stainless steel A2 9331016RVSP050
£0.32 excl.
£0.38 incl.
In stock
Expected to ship on Monday 21 September
BPA000203906

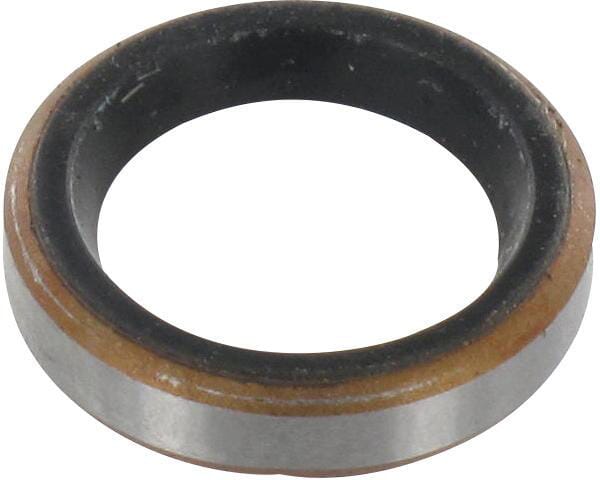

Kramp Seal ring 12x16x3 96439501160KR
