£1,369.65
excl. VAT
£1,643.58 incl. VAT
£1,643.58
incl. VAT
£1,369.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| Center ring diameter | 230 mm |
| Center shaft to top | 200 mm |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Fan cover diameter | 259 mm |
| Flange height | 4 mm |
| Full-load efficiency | 90.4 % |
| In | 14.26 A |
| Key width | 10 mm |
| Max. Revolutions | 1430 r/min |
| Moment of inertia | 0.0436 kg/m² |
| Moments of inertia (kgm²) | 0.0436 kg·m² |
| Motor efficiency class | IE3 |
| Mounting flange to mounting holes | 15 mm |
| Mounting holes pitch diamter | 265 mm |
| N1 | 1460 r/min |
| Noise level | 71 dB(A) |
| Nominal power | 7.5 kW |
| Nominal voltage | 400 V, 690 V |
| Number of phases | 3 |
| Outside diameter Mounting flange | 300 mm |
| PN | 7.50 kW |
| Power factor | 0.84 |
| Power factor cos phi 100% | 0.84 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| Rated current | 14.43 A |
| Rated rotational speed | 1430 r/min |
| Shaft length | 80 mm |
| Swivel thread | M25 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Tightening torque bolts | 50.08 N·m |
| Total length | 505 mm |
| Unit | Each |
| Weight | 57.4 kg |
Compatible accessories
Parts and components that work with this product.
DS7340SX016N0N
Eaton Softstart stop 7.5kW 24AC/DC DS7340SX016N0N
£433.71 excl.
£520.45 incl.
EM913206VMA3
Kramp Base mounting kit 132-M EM913206VMA3
£37.43 excl.
£44.92 incl.
EM9132B14FLA3
Kramp Engine flange 132-B14 EM9132B14FLA3
£48.51 excl.
£58.21 incl.
PKZM0116
Eaton Engine circuit breaker PKZM0116
£163.94 excl.
£196.73 incl.
BK75STERDRIEH
Kramp Control box 7,5kW Star-Delta BK75STERDRIEH
£2,102.36 excl.
£2,522.83 incl.
Logistics
| EAN | 8716106888528 |
|---|---|
| Unit of measure | EA |
| Weight | 65400 g |
| Dimensions | 535 × 360 × 355 mm |
| Dangerous goods | No |
You might also like
BPA000284895

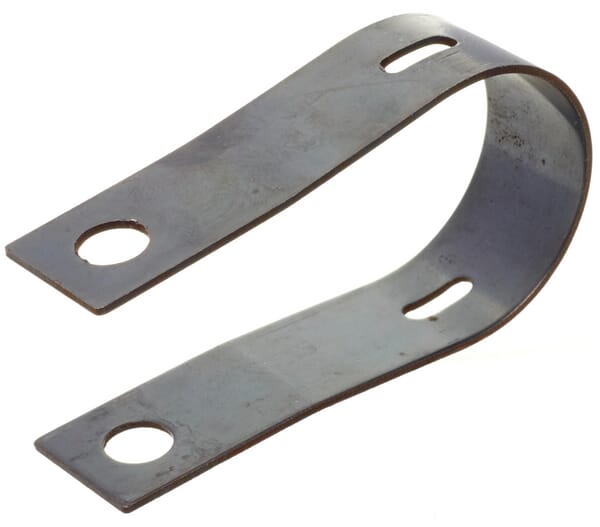

Kramp Strap H175436N
£4.32 excl.
£5.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000104758
Kramp Handles for 4" female set 4150000KR
£8.28 excl.
£9.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000289643
Kramp Heat shrink sleeve 3/1, 3:1, 1.22m, dual wall, with glue (20pcs per bag) HSS3201PAC
£13.83 excl.
£16.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000119175
Kramp Front window lower 47125737N
£70.06 excl.
£84.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309348

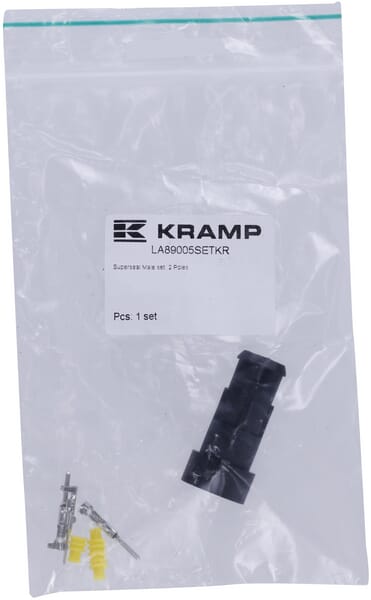

Kramp Set of Superseal 2 pin connectors plug male LA89005SETKR
£1.93 excl.
£2.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000005872

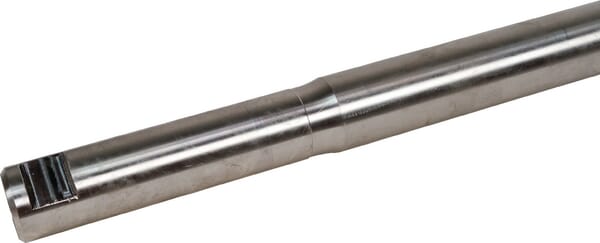

Kramp Bearing shaft 38X988 0009864130N
