£20.51
excl. VAT
£24.61 incl. VAT
£24.61
incl. VAT
£20.51 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Height | 307 mm |
|---|---|
| Housing material | Plastic |
| Inlet port thread diameter | 3/4 Inch |
| Inlet port thread type | Inch |
| Length | 133 mm |
| Long description | Filter housing for domestic and industrial water treatment with neutral pH. It is designed with a transparent SAN (styrene-acrylonitrile) bowl for easy visual inspection of the filter cartridge. The unit consists of three main components: the transparent SAN bowl, head and threaded ring. |
| Max flow rate | 108 l/min |
| Max. volume flow rate | 6.5 m³/h |
| Max working pressure | 8 BAR |
| Max working temperature | 40 °C |
| Medium | Water |
| Min working temperature | 0 °C |
| Outlet port thread diameter | 3/4 Inch |
| Outlet port thread type | Inch |
| Outlet port type - male/female | Female |
| Outside diameter | 133 mm |
| Product details | IN/OUT brass inserts, 1/8" brass breather valve, O-ring seal between bowl and head, Head constructed from filled polypropylene, Includes wrench |
| Unit | Each |
Logistics
| EAN | 8719493262285 |
|---|---|
| Unit of measure | EA |
| Weight | 1017 g |
| Dimensions | 325 × 140 × 135 mm |
| Dangerous goods | No |
You might also like
BPA000192000
Kramp Operating handle 8" gate valve 8890000Z
£29.89 excl.
£35.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000030652
Kramp Oil seal 4-3/8x5-3/8x1/2" type:CB DIN 3760 1x 1111213652127CB
£10.30 excl.
£12.36 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000082774
Kramp Oil seal 30x47x7mm type:CC DIN 3760 25x 30477CCP025
£31.07 excl.
£37.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159381

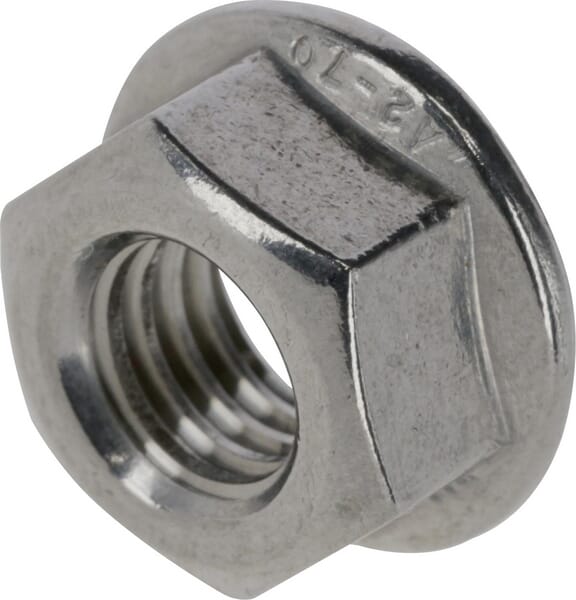

Kramp Hexagon flange nut DIN6923 M6 stainless steel A2 69236RVS
£0.15 excl.
£0.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109551
Kramp Oil seal 40x52x5mm type:CD DIN 3760 1x 40525CDP001
£3.38 excl.
£4.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000306088

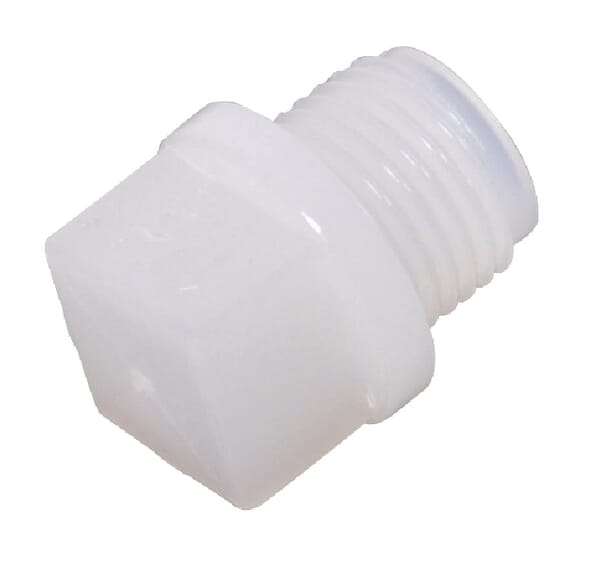

Kramp Screw plug 1/8 KS075012500001
