£1.45
excl. VAT
£1.74 incl. VAT
£1.74
incl. VAT
£1.45 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

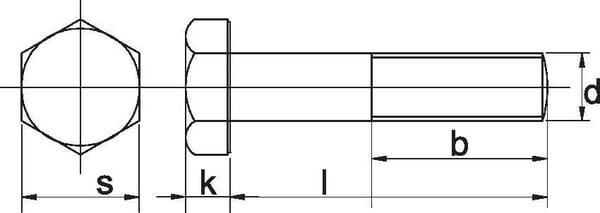

A DIN 931 hexagon head bolt measuring M10 × 130 mm, sold as a single piece. The bolt is manufactured from steel to grade 8.8 and conforms to DIN 931 (equivalent to ISO 4014) for metric partially threaded hexagon bolts. Thread diameter is M10 with a pitch of 1.50 mm; the unthreaded shank portion measures 32 mm in length. The hexagon head has a height of 6.4 mm and accepts a 16.0 mm or 17.0 mm wrench or spanner. Surface treatment is none (black finish). Each bolt weighs approximately 89 g; per 100 pieces the total weight is 9.03 kg. EAN 5700038131558 is provided for inventory tracking and re-ordering.
Product details
| bThread length | 32 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 6.4 mm |
| lLength | 130 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Quality | 8.8 (steel) |
| Surface treatment | None |
| Thread diameter | M10 |
| Thread pitch | 1.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 9.03 kg |
| Wrench/spanner size | 17.0 mm, 16.0 mm |
Logistics
| EAN | 5700038131558 |
|---|---|
| Unit of measure | EA |
| Weight | 89 g |
| Dimensions | 130 × 10 × 10 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000337999
Kramp Pre-stage unit i=3 120/14 PC71B5
£126.54 excl.
£151.85 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000285944

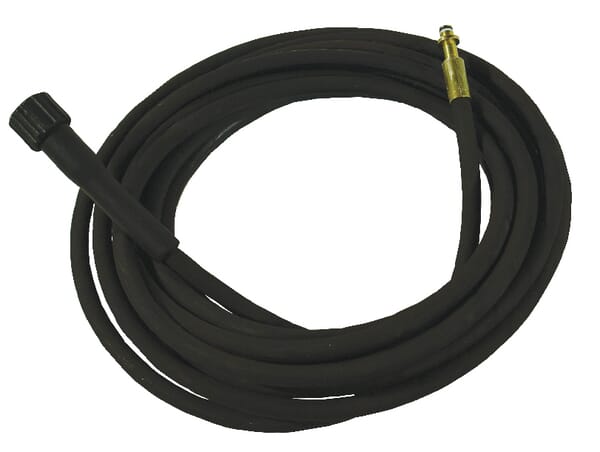

Kramp HP hose 10m DN6 250bar AVS-10mm x M22x1,5F HD996210
£60.12 excl.
£72.14 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000342801

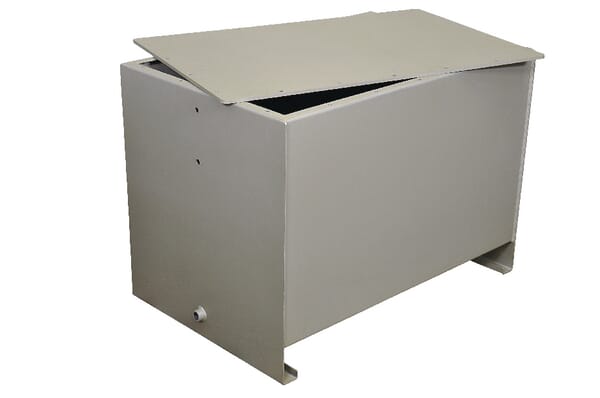

Kramp Tank PSTM 225 kwith Lid PSTM9225T
£1,042.38 excl.
£1,250.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000305223
Kramp T-shirt Men, black S KW506802201048
£12.07 excl.
£14.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000100683

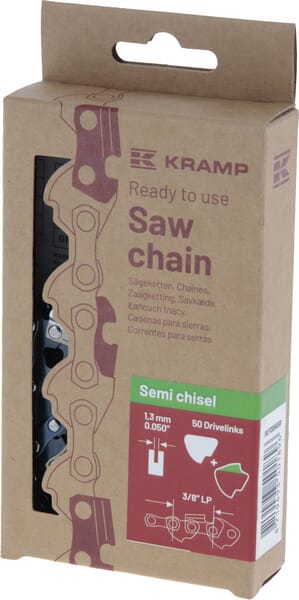

Kramp Saw chain 3/8" 1.3mm 50 DL semi chisel, Kramp Efficiency 38LP13SB50EKR
