£58.00
excl. VAT
£69.60 incl. VAT
Pack of 25 · £2.32 each excl. VAT
£69.60
incl. VAT
£58.00 excl. VAT
Pack of 25 · £2.78 each incl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

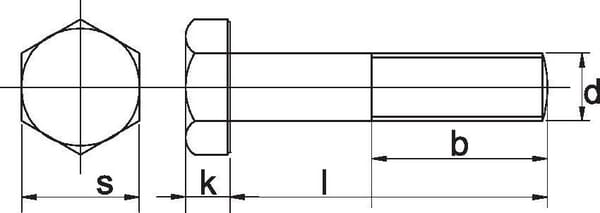

A DIN 931 hexagon head bolt measuring M10 × 220 mm, partially threaded with 45 mm of thread length, supplied in packs of 25 pieces. The bolt is manufactured from steel, grade 8.8, with a zinc-plated surface treatment. The hexagon head is 6.4 mm tall and accepts a 16 mm or 17 mm spanner. The thread pitch is 1.50 mm and conforms to the metric thread standard; ISO 4014 is the modern equivalent to DIN 931. Each bolt weighs approximately 5.6 g; a pack of 25 weighs around 141 g. The EAN for ordering is 8716106615797.
Product details
| bThread length | 45 mm |
|---|---|
| Content in sale unit | 25 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 6.4 mm |
| lLength | 220 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Qty. Rounding | 25 |
| Quality | 8.8 (steel) |
| Surface treatment | Zinc-plated |
| Thread diameter | M10 |
| Thread pitch | 1.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 14.61 kg |
| Wrench/spanner size | 17.0 mm, 16.0 mm |
Logistics
| EAN | 8716106615797 |
|---|---|
| Unit of measure | EA |
| Weight | 141 g |
| Dimensions | 225 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000000866
Kramp Spacer tube 0006442211KR
£217.41 excl.
£260.89 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000240935
Kramp Side window fixed RH CCGVOL009
£153.99 excl.
£184.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271024
Kramp Blade shaft Mclane FGP011928
£55.29 excl.
£66.35 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000317578
Kramp Bearing NWB05693
£64.28 excl.
£77.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404036
Kramp Push-in fitting YCRMT638P
£1.10 excl.
£1.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000267430

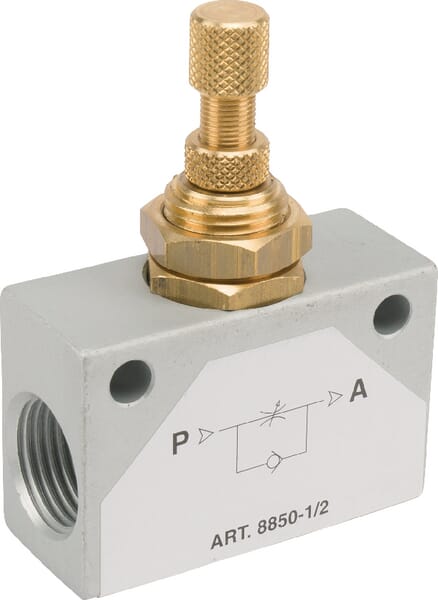

Kramp Flow control valve FCVU12
