Product details
| bThread length | 34 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 8.8 mm |
| lLength | 120 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Stainless steel |
| Quality | A2 |
| Thread diameter | M14 |
| Thread pitch | 2.00 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 16.4 kg |
| Wrench/spanner size | 22.0 mm, 21.0 mm |
Logistics
| EAN | 8716106384495 |
|---|---|
| Unit of measure | EA |
| Weight | 150 g |
| Dimensions | 126 × 25 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000271212
Kramp Blade L: 620mm, round hole: diameter 15.8 suitable for Scag by FGP012794
£27.89 excl.
£33.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000322202
Kramp Bearing NWB09591
£25.50 excl.
£30.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000328422
Kramp O-ring 35x4 75 shore Viton 10x OR354VP010
£23.13 excl.
£27.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000098431
Kramp Windscreen 3582160M2N
£355.17 excl.
£426.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000192930

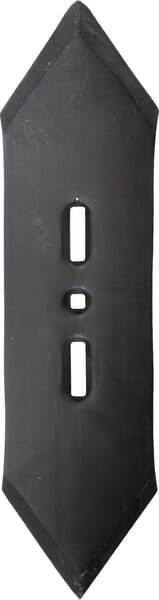

Kramp Cultivator point 450x130x12mm, reversible, flat, 3 hole, suitable for Köckerling 900835KR
£72.93 excl.
£87.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329658

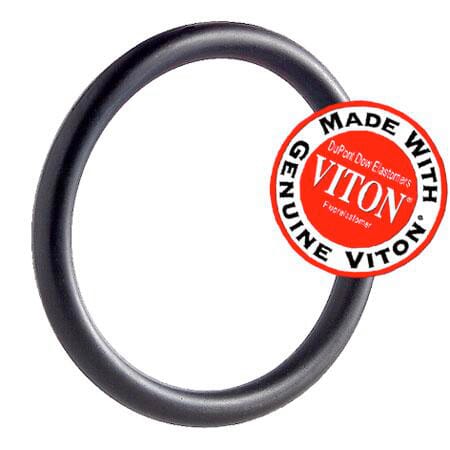

Kramp O-ring 41x1.78mm 75 shore Viton OR41178VP001
