£7.37
excl. VAT
£8.84 incl. VAT
£8.84
incl. VAT
£7.37 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| bThread length | 65 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 12.5 mm |
| lLength | 220 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. |
| Material | Steel |
| Product details | Note: this bolt is initially made thinner so it has the correct tolerance after hot-dip galvanisation, Only use ISO-fit bolts for this nut |
| Quality | 8.8 (steel) |
| Surface treatment | Hot dip galvanized |
| Thread diameter | M20 |
| Thread pitch | 2.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 58.5 kg |
| Wrench/spanner size | 30.0 mm |
Logistics
| EAN | 8716106643608 |
|---|---|
| Unit of measure | EA |
| Weight | 573 g |
| Dimensions | 231 × 30 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000173745

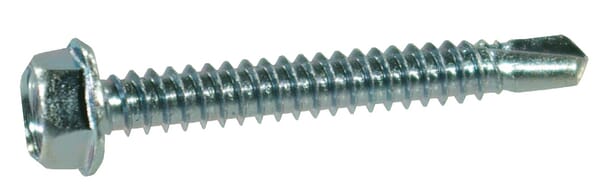

Kramp Self tapping screw 6.3x75mm, 10mm flange hex head, DIN 7504 7504K6375P200
£0.22 excl.
£0.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000358196

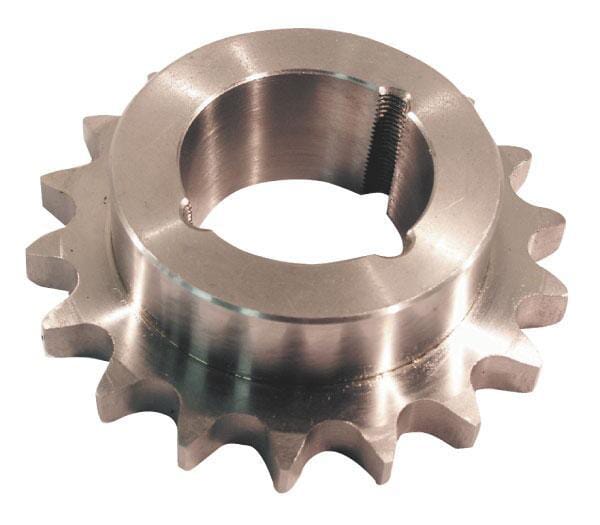

Kramp Sprocket Simplex 21 teeth 5/8" chain 10 B-1 for taperlock bush 1610 SE5821TL
£17.33 excl.
£20.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000323502
Kramp Bearing NWB08817
£13.69 excl.
£16.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000270831

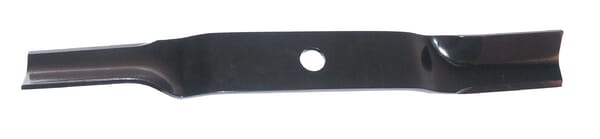

Kramp Blade L: 495mm, round hole: diameter 21.5 suitable for Murray by FGP011193
£20.57 excl.
£24.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000307045
Kramp Work jacket, red-blue, size L, EU:52-54, Kramp Original KW101030080054
£43.99 excl.
£52.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000304506

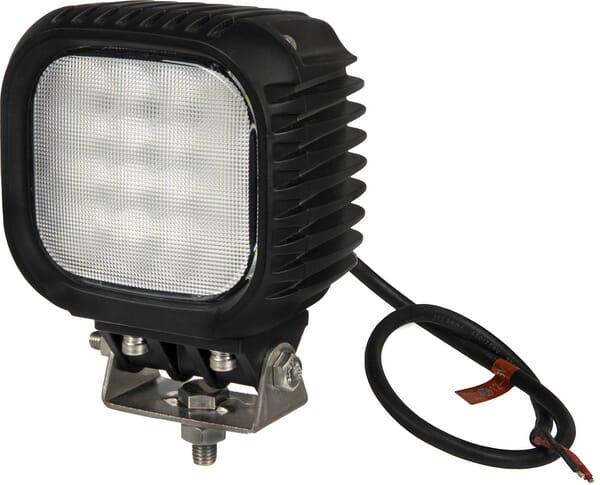

Kramp Work Light 4200 Lumen LA10442
