£3.96
excl. VAT
£4.75 incl. VAT
£4.75
incl. VAT
£3.96 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| bThread length | 50 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 14 mm |
| lLength | 70 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Quality | 10.9 (steel) |
| Surface treatment | None |
| Thread diameter | M22 |
| Thread pitch | 2.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 28.1 kg |
| Wrench/spanner size | 32.0 mm, 34.0 mm |
Logistics
| EAN | 8716106842674 |
|---|---|
| Unit of measure | EA |
| Weight | 275 g |
| Dimensions | 85 × 35 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000342205
Kramp Platewheel Simplex 22 teeth 1/2" chain 08 B-1 PW1222
£3.63 excl.
£4.36 incl.
In stock
Expected to ship on Monday 21 September
BPA000077129
Kramp Oil seal 25x35x7mm type:CB Viton Stainless steel DIN 3760 1x 25357CBVP001
£9.44 excl.
£11.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000349075
Kramp Hose clamp S.S. 68-73mm RHC6873RVS
£3.43 excl.
£4.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000330301
Kramp O-ring 59x2mm 70 shore OR592P001
£1.25 excl.
£1.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271259

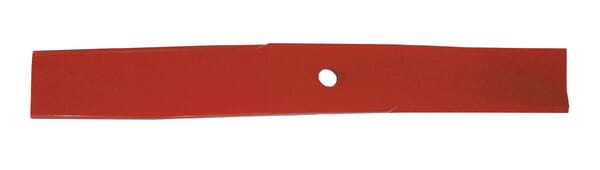

Kramp Blade L: 490mm, round hole: diameter 15.8 suitable for Toro by FGP013187
