£15.26
excl. VAT
£18.31 incl. VAT
£18.31
incl. VAT
£15.26 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A DIN 931 hexagon head bolt measuring M36 × 220 mm in overall length, sold as a single piece. The bolt is manufactured from steel to grade 8.8 and finished with zinc plating. The thread is metric with a pitch of 4.00 mm and extends 97 mm from the base of the bolt head. The hexagon head is 22.5 mm tall with a wrench size of 55.0 mm. This bolt conforms to both DIN 931 and ISO 4014 standards. Each bolt weighs approximately 2.05 kg. The product carries the EAN 8716106614837 for inventory matching.
Product details

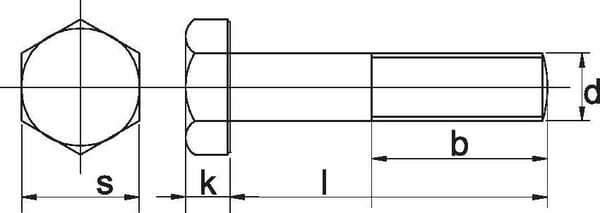

| bThread length | 97 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 22.5 mm |
| lLength | 220 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Quality | 8.8 (steel) |
| Surface treatment | Zinc-plated |
| Thread diameter | M36 |
| Thread pitch | 4.00 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 211 kg |
| Wrench/spanner size | 55.0 mm |
Logistics
| EAN | 8716106614837 |
|---|---|
| Unit of measure | EA |
| Weight | 2052 g |
| Dimensions | 246 × 63 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000319145
Kramp 9L Pressure Compensated Fixed Throttle MPPTH9L
£43.76 excl.
£52.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202634
Kramp Castle nut DIN935 M24x1.50 steel zinc-plated Class 8 9352415
£3.21 excl.
£3.85 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000287251

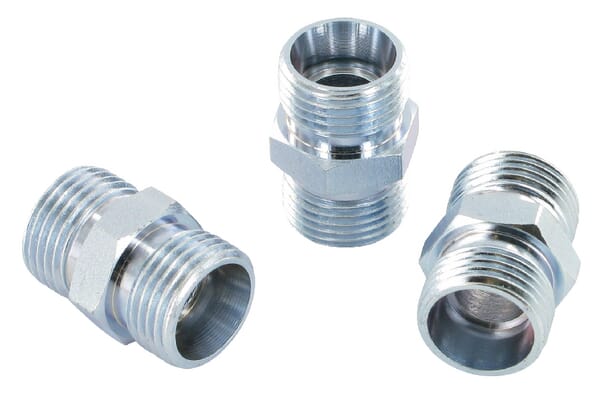

Kramp Straight coupling 8L - 50Pcs GS8LP050KR
