£64.00
excl. VAT
£76.80 incl. VAT
Pack of 100 · £0.64 each excl. VAT
£76.80
incl. VAT
£64.00 excl. VAT
Pack of 100 · £0.77 each incl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A DIN 931 / ISO 4014 hexagon head bolt in M8 × 100 mm, partially threaded with 22 mm thread length, supplied as a single piece. The bolt is manufactured from steel to grade 8.8 and finished with hot-dip galvanising for corrosion resistance. The hexagon head measures 13.0 mm across flats and 5.3 mm in height. Thread pitch is 1.25 mm metric. The bolt weighs approximately 42 g per piece, or 4.37 kg per 100 units. Note that this bolt is initially manufactured slightly thinner to achieve correct tolerance after the galvanising process; ensure ISO-fit pairing with corresponding nuts. EAN 8716106643394.
Product details

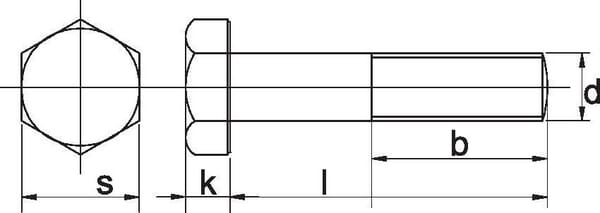

| bThread length | 22 mm |
|---|---|
| Content in sale unit | 100 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 5.3 mm |
| lLength | 100 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. |
| Material | Steel |
| Product details | Note: this bolt is initially made thinner so it has the correct tolerance after hot-dip galvanisation, Only use ISO-fit bolts for this nut |
| Qty. Rounding | 100 |
| Quality | 8.8 (steel) |
| Surface treatment | Hot dip galvanized |
| Thread diameter | M8 |
| Thread pitch | 1.25 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 4.37 kg |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 8716106643394 |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 105 × 7 × 7 mm |
| Dangerous goods | No |
