£1.26
excl. VAT
£1.51 incl. VAT
£1.51
incl. VAT
£1.26 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

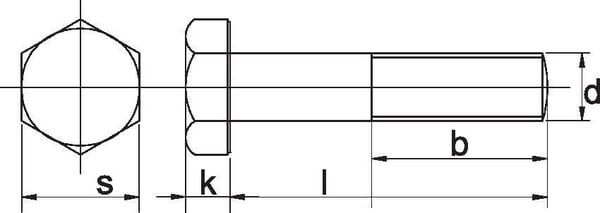

A DIN 931 hexagon head bolt measuring M8 thread diameter by 120 mm overall length, supplied as a single piece. The bolt is manufactured from steel, grade 10.9, with zinc-plated surface treatment. Thread pitch is 1.25 mm (metric coarse). The hexagon head measures 13 mm across flats and stands 5.3 mm high. The threaded portion extends 22 mm from the underside of the head, leaving 98 mm of unthreaded shoulder. ISO 4014 supersedes DIN 931 as the current international standard for this profile. Each bolt weighs approximately 49 g; a box of 100 pieces weighs 5.17 kg. EAN 5700038147245.
Product details
| bThread length | 22 mm |
|---|---|
| Content in sale unit | 1 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 5.3 mm |
| lLength | 120 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Quality | 10.9 (steel) |
| Surface treatment | Zinc-plated |
| Thread diameter | M8 |
| Thread pitch | 1.25 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 5.17 kg |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 5700038147245 |
|---|---|
| Unit of measure | EA |
| Weight | 49 g |
| Dimensions | 125 × 15 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000199455
Kramp Hexagon head bolt DIN931 M12x140 steel zinc-plated 10.9 93112140109
£2.02 excl.
£2.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000041088
Kramp Washer M6x12x1.6mm, Stainless steel A4 DIN 125a 125A6RVSA4P100
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305689
Kramp Tube linch pin 10mm x 45mm (2) KRLP1045P02B
£1.58 excl.
£1.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000028567

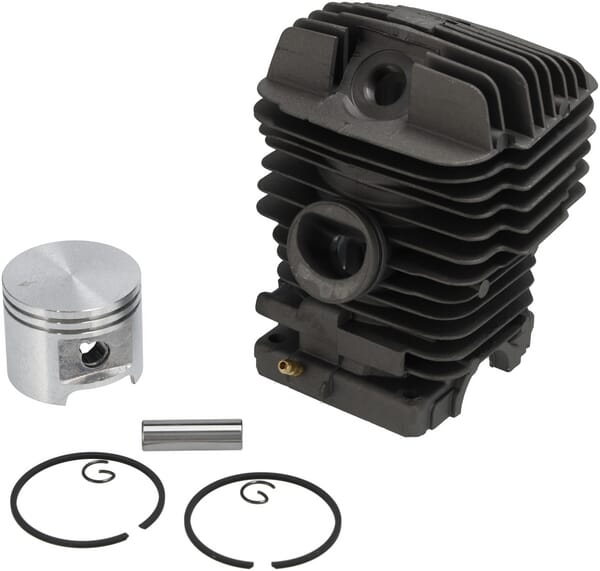

Kramp Cylinder complete Ø 46mm 11270201210KR
