£61.00
excl. VAT
£73.20 incl. VAT
Pack of 100 · £0.61 each excl. VAT
£73.20
incl. VAT
£61.00 excl. VAT
Pack of 100 · £0.73 each incl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A DIN 933 hexagon head bolt measuring M10 × 10 mm, fully threaded, manufactured from steel and zinc-plated for corrosion resistance. Grade 8.8 designation indicates the mechanical strength properties of the fastener. The bolt has a hexagon head with a height of 6.4 mm and a thread pitch of 1.50 mm. It conforms to both DIN 933 and ISO 4017 standards, with spanner sizes of 16.0 mm or 17.0 mm. Supplied in packs of 100 pieces, with a combined weight of 1.62 kg per pack. Each individual bolt weighs approximately 16 g. The product carries EAN 5700038148693 for inventory and re-order matching.
Product details
| Content in sale unit | 100 pcs |
|---|---|
| DIN standard | 933 |
| Head shape | Hexagon |
| ISO standard | 4017 |
| kHead height | 6.4 mm |
| lLength | 10 mm |
| Long description | Hexagon head set screw, fully threaded, length is measured below the head. ISO 4017 supersedes DIN 933: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Qty. Rounding | 100 |
| Quality | 8.8 (steel) |
| Surface treatment | Zinc-plated |
| Thread diameter | M10 |
| Thread pitch | 1.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 1.62 kg |
| Wrench/spanner size | 17.0 mm, 16.0 mm |
Logistics
| EAN | 5700038148693 |
|---|---|
| Unit of measure | EA |
| Weight | 16 g |
| Dimensions | 50 × 18 × 9 mm |
| Dangerous goods | No |
You might also like
BPA000331410
Kramp O-ring 9.52x1.78mm 70 shore 10x OR952178P010
£1.52 excl.
£1.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000330815
Kramp O-ring 74.6x3.53mm 90 shore OR746035390P001
£1.14 excl.
£1.37 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000342818
Kramp Safety valve PSV38IP0208
£213.00 excl.
£255.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000270081

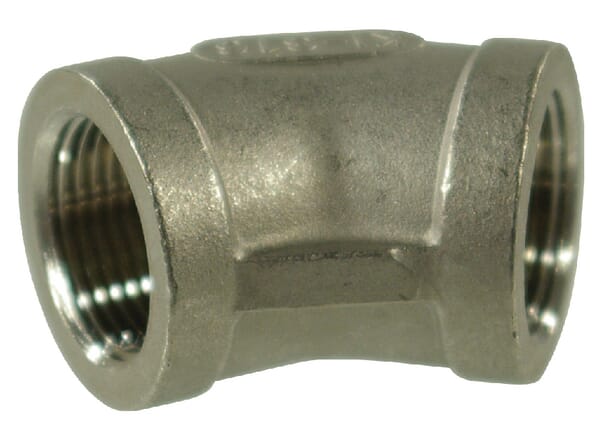

Kramp Elbow 45° S.S. 2xF 3/4" FG12034RVS
