Product details
| Content in sale unit | 25 pcs |
|---|---|
| DIN standard | 933 |
| Head shape | Hexagon |
| ISO standard | 4017 |
| kHead height | 4 mm |
| lLength | 30 mm |
| Long description | Hexagon head set screw, fully threaded, length is measured below the head. ISO 4017 supersedes DIN 933: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Qty. Rounding | 25 |
| Quality | 10.9 (steel) |
| Surface treatment | None |
| Thread diameter | M6 |
| Thread pitch | 1.00 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 0.751 kg |
| Wrench/spanner size | 10.0 mm |
Logistics
| EAN | 8716106844869 |
|---|---|
| Unit of measure | EA |
| Weight | 9 g |
| Dimensions | 34 × 10 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000370196

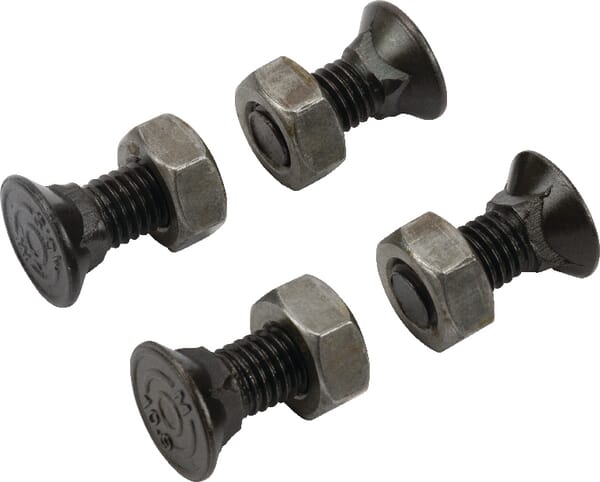

Kramp Bolt pack 4x M10x25 VK+Nuts TB30003
£2.42 excl.
£2.90 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343214

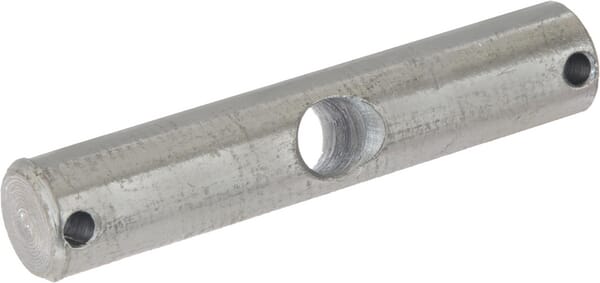

Kramp Axle with hole for draw bar PTS2500KR105
£2.83 excl.
£3.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308755

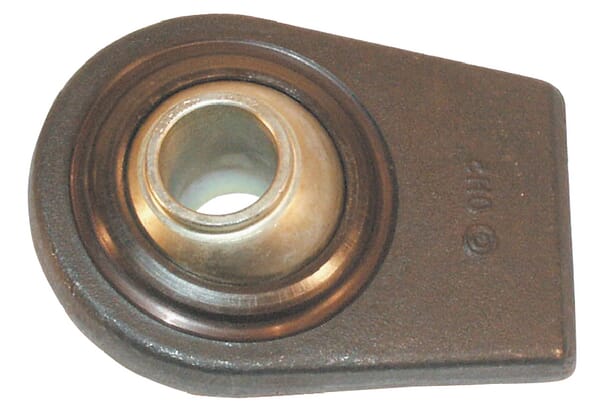

Kramp Ball end 51.2mm flat Weld-On LA251201Z
£85.32 excl.
£102.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000367532

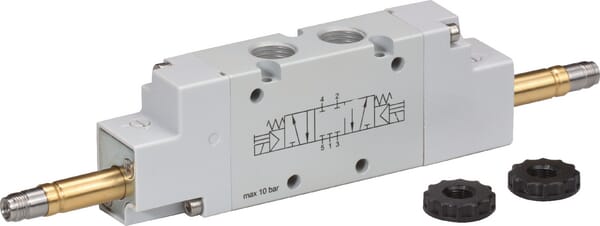

Kramp Solenoid valve 1/8"-PC 5/3-way SOV53M18PC
£134.72 excl.
£161.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000334118
Kramp O-ring 109.2x5.7mm 70 shore 10x OR10920570P010
£14.03 excl.
£16.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000367254

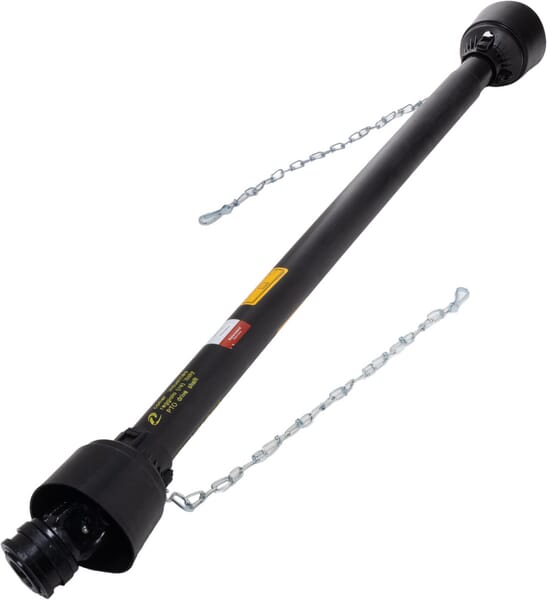

Kramp PTO drive shaft T10 L=1210mm T10121SC12C12KR
