£198.73
excl. VAT
£238.48 incl. VAT
£238.48
incl. VAT
£198.73 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

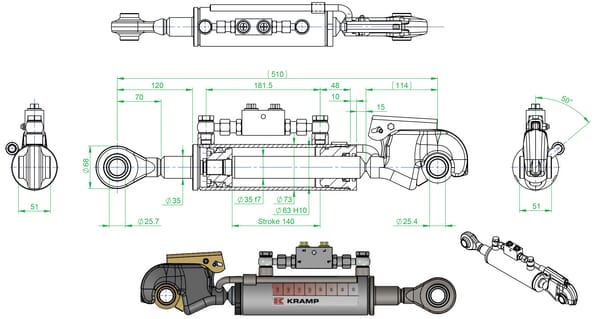

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 63 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve, Ball, Actuation cable |
| Max. length | 650 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 4.4 t |
| Max. push capacity at 200 bar | 6.3 t |
| Max. working pressure | 250 BAR |
| Min. length | 510 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.4 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Oil connections distance | 179 mm |
| Outside diameter | 73 mm |
| Product details | Cat. 2 and 3 three-point link, With length indicator, Type TCVNN is equipped with a controlled check valve, Type TCVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TCVNNE top link with an extended rod end. |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 140 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719493443455 |
|---|---|
| Unit of measure | EA |
| Weight | 11500 g |
| Dimensions | 635 × 150 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000374101
Kramp Hydr Toplink cat 2/2 with valve, hook extended rod end TCVNNE356316022
£200.07 excl.
£240.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000374103
Kramp Hydr Toplink cat 2/2 with valve, hook extended rod end TCVNNE356321022A
£203.76 excl.
£244.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000374099
Kramp Hydr Toplink cat 2/2 with valve, hook extended rod end TCVNNE356313022
£197.50 excl.
£237.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000322777
Kramp Bearing NWB08004
£10.81 excl.
£12.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000308879
Kramp Marker light LED, rectangular, 12-24V, 114x40x25mm, LA30113
£16.39 excl.
£19.67 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000370694

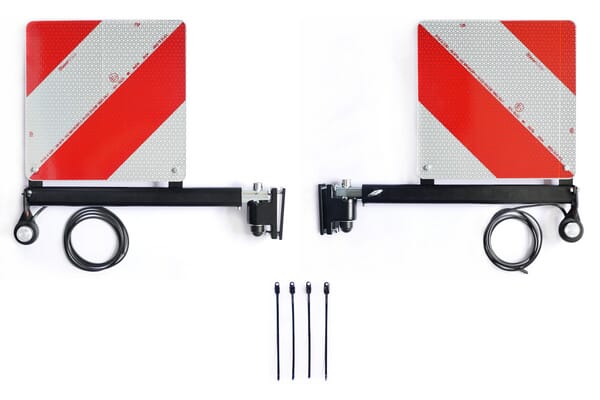

Kramp Set of over width warning sign, quick-change telescopic holder retractable, marker light 12/24V (Aspöck connectors) V304LEDKR
