£177.29
excl. VAT
£212.75 incl. VAT
£212.75
incl. VAT
£177.29 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

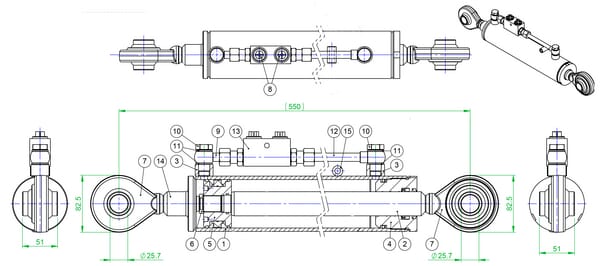

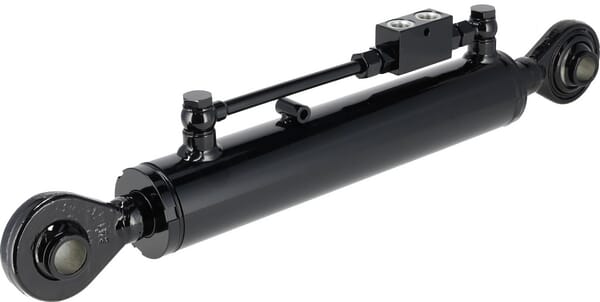

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 70 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve |
| Max. length | 800 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 5.8 t |
| Max. push capacity at 200 bar | 7.7 t |
| Max. working pressure | 250 BAR |
| Min. length | 550 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| Nominal pressure | 200 BAR |
| Oil connections distance | 289.5 mm |
| Outside diameter | 80 mm |
| Product details | Category 2 three-point connection, Type TENNN is without controlled check valve, Type TENNNE is without controlled check valve, with an extended rod end on the tractor side, Type TEVNN is with controlled check valve, Type TEVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TEVNNE top link with an extended rod end |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 250 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493237610 |
|---|---|
| Unit of measure | EA |
| Weight | 12160 g |
| Dimensions | 805 × 180 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000322035
Kramp Bearing NWB09396
£6.21 excl.
£7.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000095797
Kramp Chainsaw oil, 1l, mineral, by 37001KR
£5.86 excl.
£7.03 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000230056
Kramp Alternator 14V 65A ALT2625183
£161.90 excl.
£194.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330321
Kramp O-ring 59.69x5.33mm 70 shore OR5969533P001
£1.22 excl.
£1.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318602

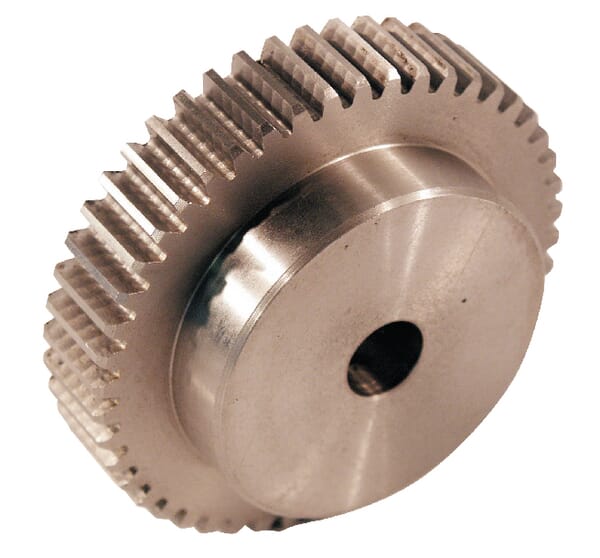

Kramp Spur gear module 2 - Z=59 MOD259
