£289.97
excl. VAT
£347.96 incl. VAT
£347.96
incl. VAT
£289.97 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

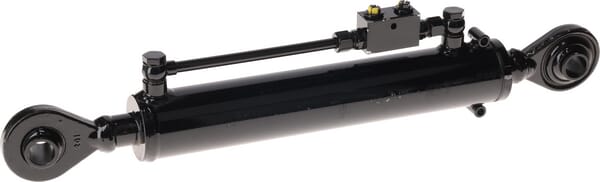

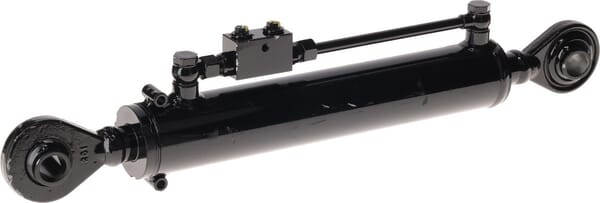

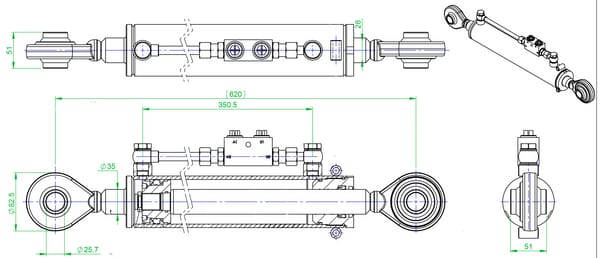

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 63 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve |
| Max. length | 931 mm |
| Max. pull capacity at 200 bar | 4.4 t |
| Max. push capacity at 200 bar | 6.3 t |
| Max. working pressure | 250 BAR |
| Min. length | 620 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| Nominal pressure | 200 BAR |
| Outside diameter | 73 mm |
| Product details | Category 1 and 2 three-point connection, Type TENNN is without controlled check valve, Type TENNNE is without controlled check valve, with an extended rod end on the tractor side, Type TEVNN is with controlled check valve, Type TEVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TEVNNE top link with an extended rod end |
| Pros | Easy reading of the setting |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 311 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719493210507 |
|---|---|
| Unit of measure | EA |
| Weight | 12413 g |
| Dimensions | 740 × 170 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000374298

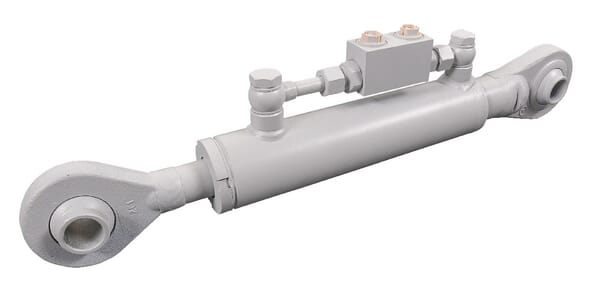

Kramp Hydr toplink cat 2/2, with valve, rod end x extended rod end TEVNN406025022
£254.54 excl.
£305.45 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000374292
Kramp Hydr toplink cat 2/2, with valve, rod end x extended rod end TEVNN305016022
£238.00 excl.
£285.60 incl.
In stock
Expected to ship on Monday 21 September
BPA000383395

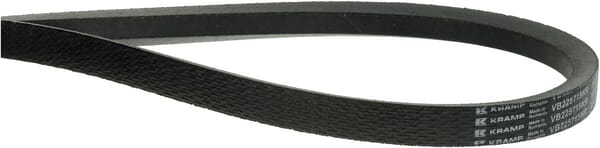

Kramp V-belt 22x5715 Li VB225715KR
£47.36 excl.
£56.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198347
Kramp Hexagon head bolt DIN931 M30x280 steel zinc-plated 8.8 93130280
£19.77 excl.
£23.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000203207

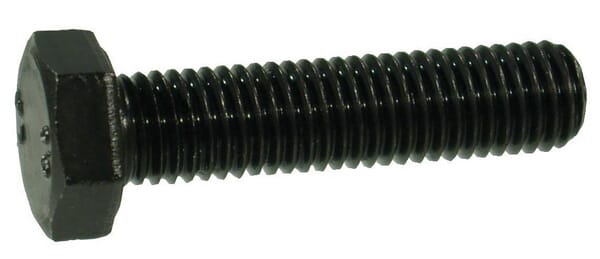

Kramp Hexagon head bolt DIN933 M12x30 steel 10.9 9331230109B
£0.57 excl.
£0.68 incl.
In stock
Expected to ship on Monday 21 September
BPA000268448

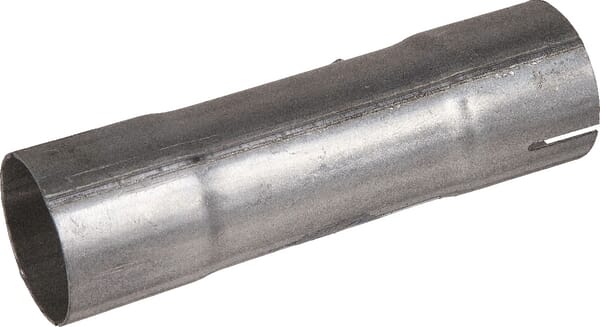

Kramp Coupling EX92054
