£294.14
excl. VAT
£352.97 incl. VAT
£352.97
incl. VAT
£294.14 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

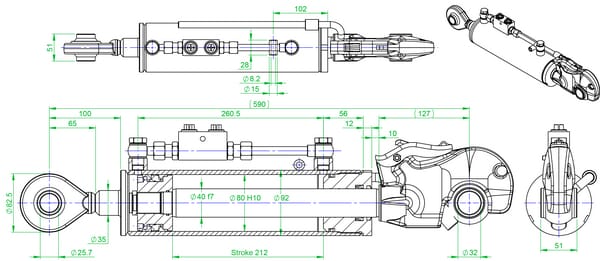

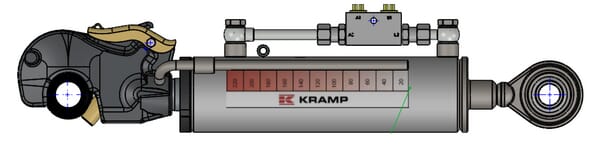

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 80 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve, Ball, Actuation cable |
| Max. length | 802 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 7.6 t |
| Max. push capacity at 200 bar | 10.1 t |
| Max. working pressure | 250 BAR |
| Min. length | 590 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 31.6 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Oil connections distance | 260.5 mm |
| Outside diameter | 92 mm |
| Product details | Cat. 2 and 3 three-point link, With length indicator, Type TCVNN is equipped with a controlled check valve, Type TCVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TCVNNE top link with an extended rod end. |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 40 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 212 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 3 |
| Unit | Each |
Logistics
| EAN | 8719493368154 |
|---|---|
| Unit of measure | EA |
| Weight | 18100 g |
| Dimensions | 735 × 170 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000054352

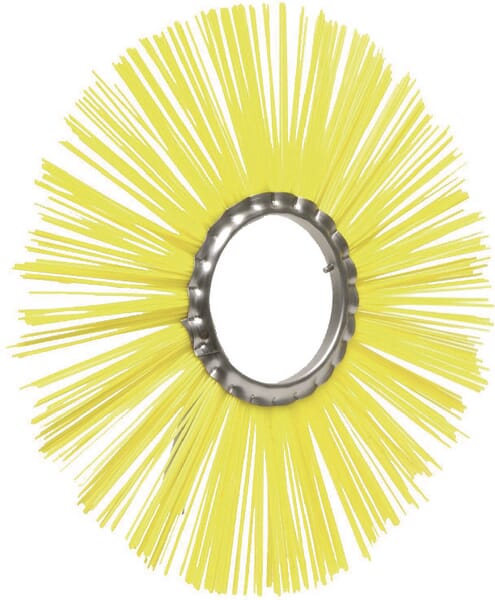

Kramp Rotary brush poly 450 x 5" 128 1/2 cup: 10 degrees 1715115450
£8.06 excl.
£9.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000130112
Kramp Oil seal 50x68x10mm type:CC DIN 3760 1x 506810CCP001
£2.42 excl.
£2.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204114
Kramp Hexagon head bolt DIN960 M18x1.50x100 10.9 9601815100109B
£3.08 excl.
£3.70 incl.
In stock
Expected to ship on Monday 21 September
BPA000069436

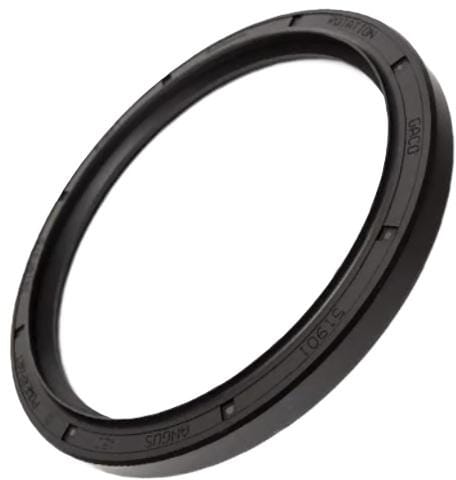

Kramp Sealing ring for engine, rear, 3-cylinder 2418F475KR
£9.52 excl.
£11.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000187922

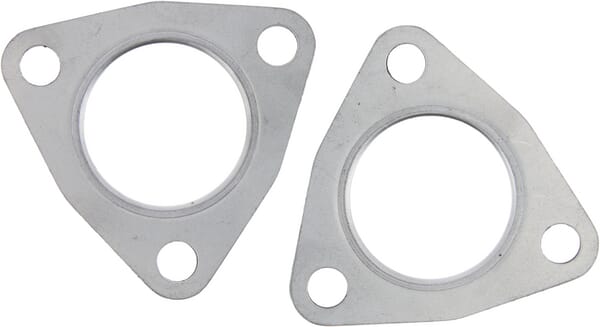

Kramp Seal 827877M1KR
£0.84 excl.
£1.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373979

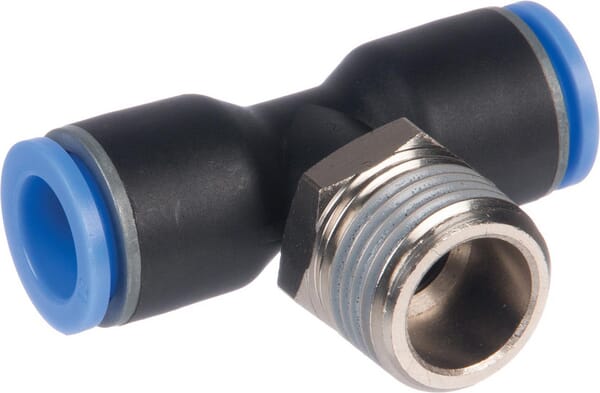

Kramp Push-in fitting TCRMT1212P
