£338.60
excl. VAT
£406.32 incl. VAT
£406.32
incl. VAT
£338.60 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details

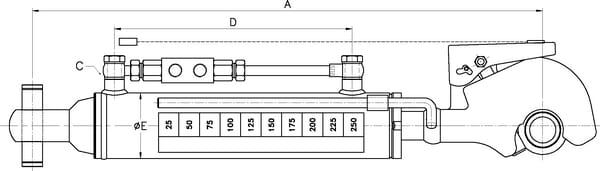

| CMounting thread diameter - cylinder connection | 3/8 Inch |
|---|---|
| Colour | Black |
| Cylinder bore diameter | 63 mm |
| Cylinder material | Steel ST52 |
| EOutside diameter | 73 mm |

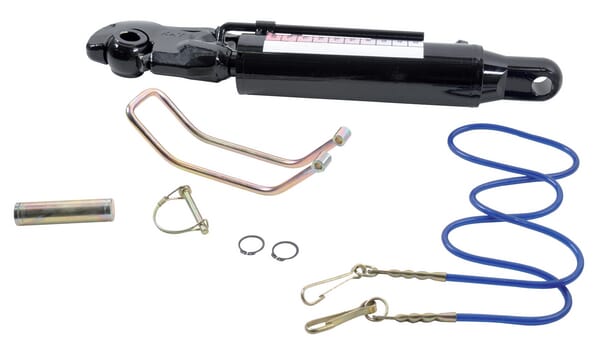

| Includes | Ball, Control cable, Bracket, Fork bolt |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 4.4 t |
| Max. push capacity at 200 bar | 6.3 t |
| Max. working pressure | 250 BAR |
| Max. working temperature | 85 °C |
| Min. length | 555 mm |
| Min. working temperature | -25 °C |
| Mounting hole diameter - cylinder connection | 20 mm |
| Mounting hole diameter - rod connection | 20 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Metal eye |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Product details | With length indicator, Equipped with a controlled check valve, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Bore 63 suitable for tractors up to 74 kW, Bore 70 suitable for tractors up to 135 kW, Bore 90 suitable for tractors up to 206 kW |
| Pros | Settings can be easily read, Maintains position |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 230 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719607232869 |
|---|---|
| Unit of measure | EA |
| Weight | 13184 g |
| Dimensions | 735 × 175 × 85 mm |
| Dangerous goods | No |
