£449.33
excl. VAT
£539.20 incl. VAT
£539.20
incl. VAT
£449.33 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

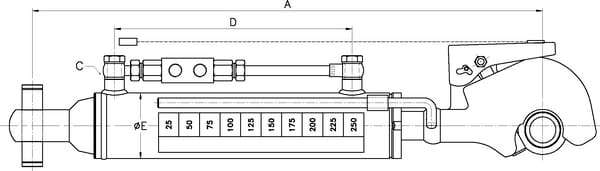

| AMax. length | 890 mm |
|---|---|
| CMounting thread diameter - cylinder connection | 3/8 Inch |
| Colour | Black |
| Cylinder bore diameter | 90 mm |
| Cylinder material | Steel ST52 |
| EOutside diameter | 102 mm |

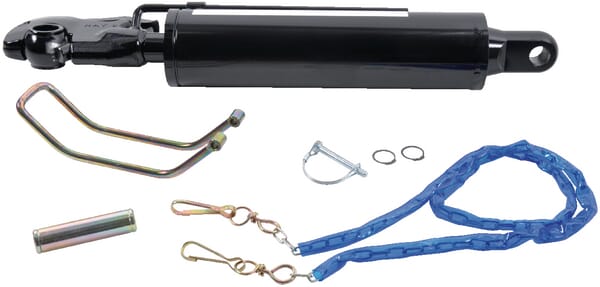

| Includes | Ball, Control cable, Bracket, Fork bolt |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 10.3 t |
| Max. push capacity at 200 bar | 12.8 t |
| Max. working pressure | 250 BAR |
| Max. working temperature | 85 °C |
| Min. length | 640 mm |
| Min. working temperature | -25 °C |
| Mounting hole diameter - cylinder connection | 25 mm |
| Mounting hole diameter - rod connection | 25 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Metal eye |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Product details | With length indicator, Equipped with a controlled check valve, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Bore 63 suitable for tractors up to 74 kW, Bore 70 suitable for tractors up to 135 kW, Bore 90 suitable for tractors up to 206 kW |
| Pros | Settings can be easily read, Maintains position |
| RAL colour code | 9005 |
| Rod diameter | 40 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 250 mm |
| Top link category - cylinder connection | 3 |
| Top link category - rod connection | 3 |
| Unit | Each |
Logistics
| EAN | 8716106792139 |
|---|---|
| Unit of measure | EA |
| Weight | 24000 g |
| Dimensions | 740 × 230 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000361369

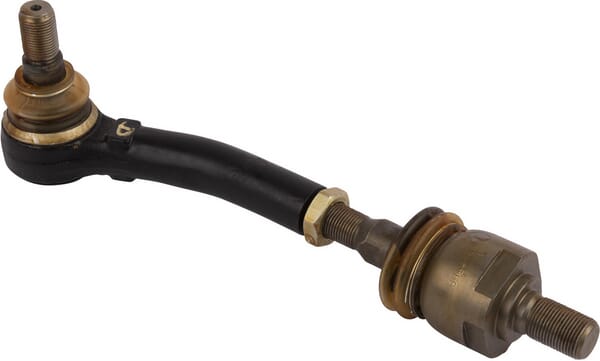

Kramp Tie rod assembly SHP751KR
£84.04 excl.
£100.85 incl.
In stock
Expected to ship on Monday 21 September
BPA000270239
Kramp Joiner nipple black 2" FG162
£2.86 excl.
£3.43 incl.
In stock
Expected to ship on Monday 21 September
BPA000128564

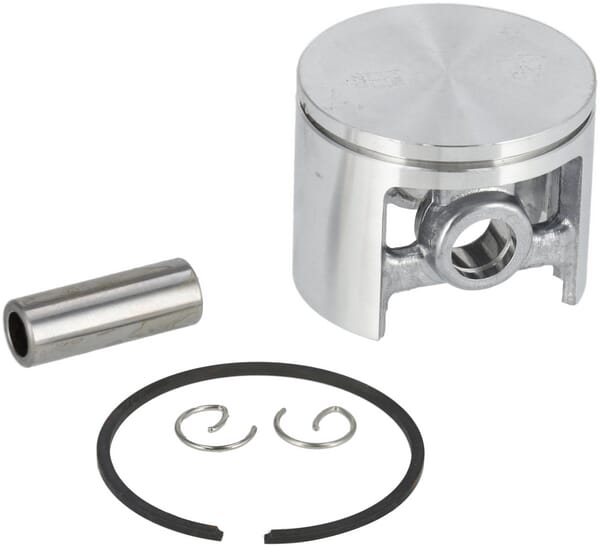

Kramp Piston (complete), Suitable for Husqvarna 503609803KR
£13.28 excl.
£15.94 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000024878
Kramp Engine oil synthetic 10W-40 20L 10421020WEKR
£123.18 excl.
£147.82 incl.
In stock
Expected to ship on Monday 21 September
BPA000329754
Kramp O-ring 4.34x3.53 75 shore Viton 10x OR434353VP010
£10.35 excl.
£12.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209568

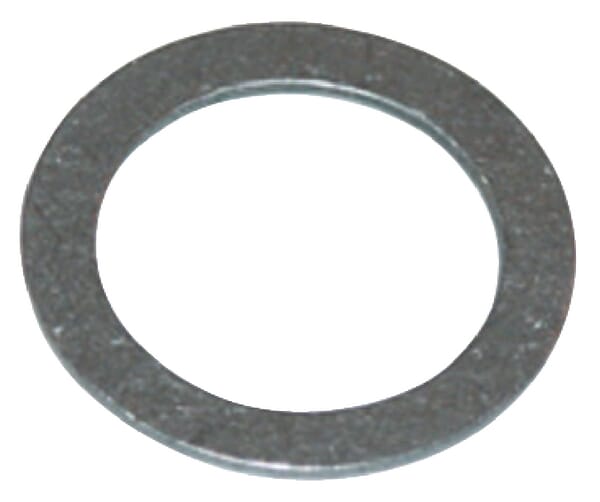

Kramp Shim diameter 7x13x1mm DIN 988 98871310P010
