£144.36
excl. VAT
£173.23 incl. VAT
£173.23
incl. VAT
£144.36 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

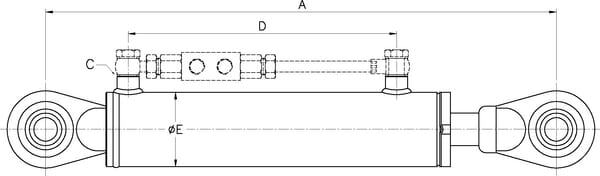

| AMax. length | 800 mm |
|---|---|
| CMounting thread diameter - cylinder connection | 3/8 Inch |
| Colour | Black |
| Cylinder bore diameter | 60 mm |
| Cylinder material | Steel ST52 |
| DRod diameter | 35 mm |
| EOutside diameter | 70 mm |
| Includes | Cylinder |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 3.8 t |
| Max. push capacity at 200 bar | 5.7 t |
| Max. working pressure | 250 BAR |
| Min. length | 550 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| Nominal pressure | 200 BAR |
| Oil connections distance | 289 mm |
| Product details | Category 1 and 2 three-point connection, Type TENNN is without controlled check valve, Type TENNNE is without controlled check valve, with an extended rod end on the tractor side, Type TEVNN is with controlled check valve, Type TEVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TEVNNE top link with an extended rod end |
| Pros | Easy reading of the setting |
| RAL colour code | 9005 |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 250 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719607232876 |
|---|---|
| Unit of measure | EA |
| Weight | 9695 g |
| Dimensions | 735 × 170 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000374228
Kramp Hydraulic Toplink TEN/TEV, 550mm cat.2/2 TENNN357025022
£209.50 excl.
£251.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000331653

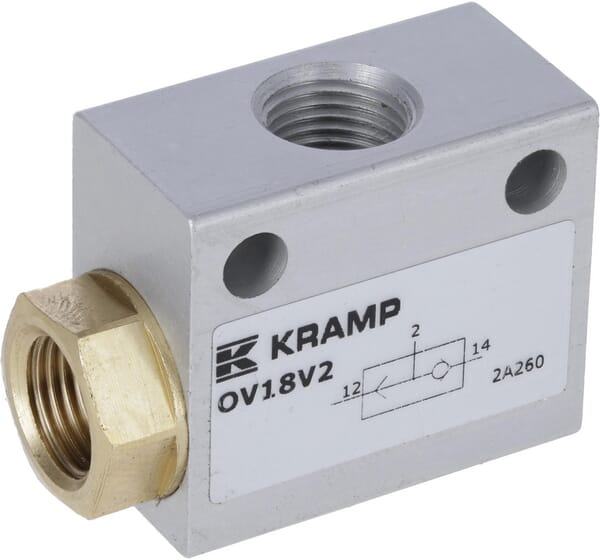

Kramp OR-valve OV18V2
£28.54 excl.
£34.25 incl.
In stock
Expected to ship on Monday 21 September
BPA000078051
Kramp Oil seal 27x47x10mm type:CB 274710CBP001
£3.93 excl.
£4.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000330566

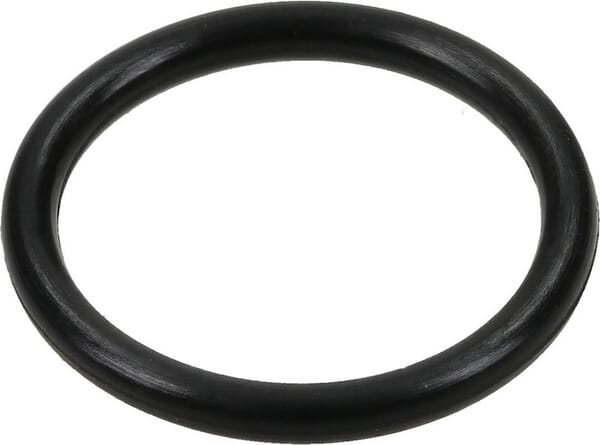

Kramp O-ring 66.4x1.78mm 90 shore OR664017890P001
