£5.31
excl. VAT
£6.37 incl. VAT
£6.37
incl. VAT
£5.31 excl. VAT
In stock
Expected to ship on Monday 21 September
About this product
A bolt-on lower link implement pin measuring 28 mm outside diameter by 197 mm total length, with a 22 mm head diameter, supplied as a single piece. The pin is designed for use with Category 1 and Category 2 tractor linkage systems and features zinc-plated finish for corrosion resistance. The pin incorporates a 12 mm bore diameter and includes 1-1/8 inch UNC thread specification. The distance between mounting holes is 161.3 mm, with a 61 mm distance from one hole to the head and 51 mm from the other, accommodating dual-pin installation on implements. The product weighs approximately 929 g and carries the EAN 8716106072019.
Product details

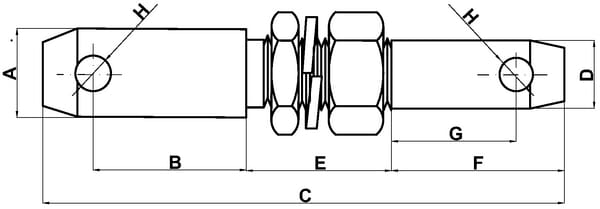

| APin outside diameter | 28 mm |
|---|---|
| B,GDistance from hole to head | 61 mm, 51 mm |
| Category | 1, 2 |
| CPin total length | 197 mm |
| Details | Bolt on implement pins |
| DHead diameter | 22 mm |
| Distance between holes | 161.3 mm |
| ELength | 49.3 mm |
| Extra info | A= 28mm, B= 65mm, C= 197mm, D= 22mm, E= 49.3mm, F= 68.85mm, G= 51mm, H= 12mm, (subject to inaccuracies and/or product changes) |
| FHead height | 70 mm |
| Fits inside pin | 22 mm |
| HBore diameter | 12 mm |
| Properties | Zinc plated |
| Thread diameter | 1-1/8 Inch |
| Thread per inch | 7 |
| Thread type | UNC |
| Unit | Each |
Logistics
| EAN | 8716106072019 |
|---|---|
| Unit of measure | EA |
| Weight | 929 g |
| Dimensions | 231 × 53 × 44 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000361175
Kramp Track rod SHP497KR
£141.61 excl.
£169.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000195798
Kramp Hexagon socket head cap screw DIN912 M16x80 stainless steel A2 9121680RVSP001
£3.43 excl.
£4.11 incl.
In stock
Expected to ship on Monday 21 September
BPA000330388

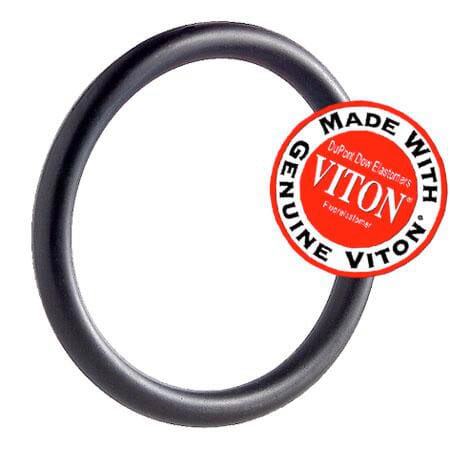

Kramp O-ring 61x4.5mm 75 shore Viton OR61450VP001
£10.37 excl.
£12.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356405

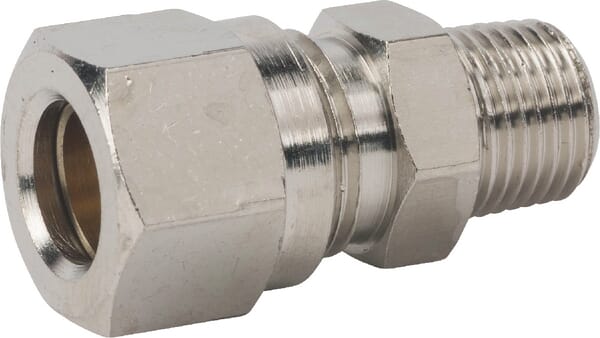

Kramp Straight clampingring coupler SCCRT1212
£4.23 excl.
£5.08 incl.
In stock
Expected to ship on Monday 21 September
BPA000353849

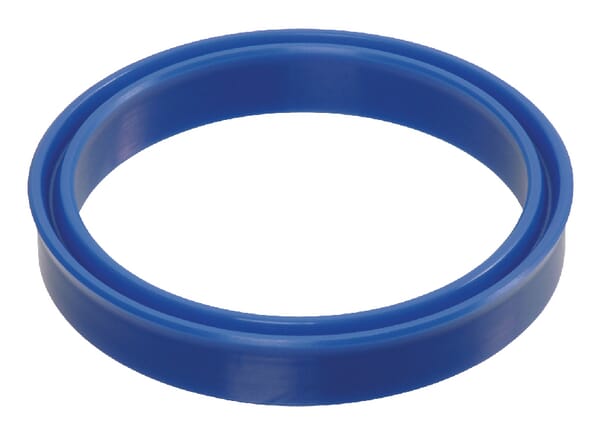

Kramp Rod seal 15x8x5.8mm SA81558UN
