About this product
A DIN 3760 Type CC oil seal measuring 1-1/2 inches (38.1 mm) inside diameter by 2-1/4 inches (57.15 mm) outside diameter with 3/8 inch (9.52 mm) retaining ring width, sold as a single piece. The seal features a nitrile rubber (NBR) sealing material with a rubber outer sheath and integrated dust lip for sealing rotating machine components. The spring is zinc-plated steel, and the rubber sheath is designed to compensate for expansion and unevenness in the housing bore. Operating temperature range is -35 to 100 °C. The product weighs 26 g and carries EAN 8716106223299.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| d1Inside diameter | 38.1 mm |
| d2Outside diameter | 57.15 mm |
| hRetaining ring width | 9.52 mm |
| Inside diameter | 1-1/2 Inch |
| Long description | Oil seals inside Ø 1 1/2" (38,10mm) |
| Manufacturer Product ID | 10011412 |
| Material spring | Spring steel |
| Outside diameter | 2-1/4 Inch |
| Properties | Rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Retaining ring width | 3/8 Inch |
| Sealing material | Nitrile rubber [NBR] |

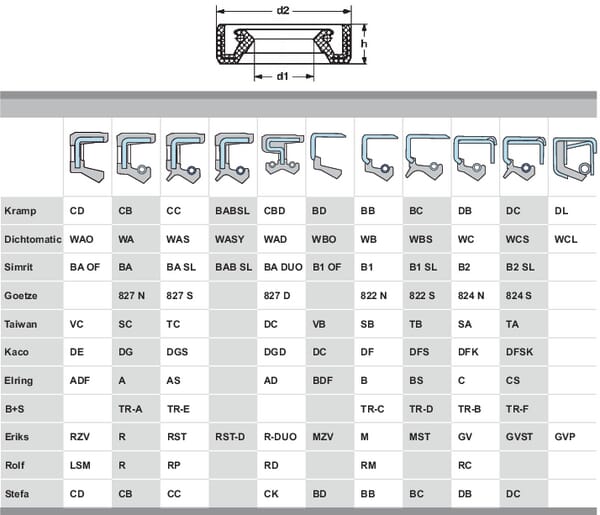

| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | CC |
| Unit | Each |
| With dust lip | Yes |
Logistics
| EAN | 8716106223299 |
|---|---|
| Unit of measure | EA |
| Weight | 26 g |
| Dimensions | 59 × 38 × 9 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101674

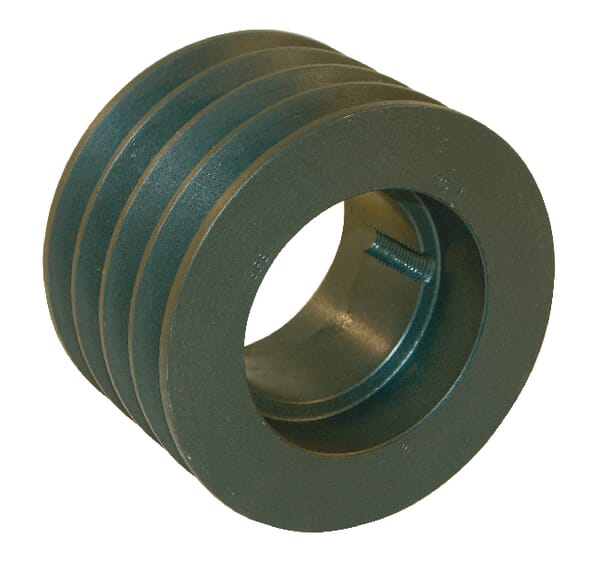

Kramp V-belt pulley 4 groove A or SPA diameter 405.50mm for taperlockbush 3020 400A4TL
£207.18 excl.
£248.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000258603
Kramp Electric motor 4 kW EM112L4B3500IE3AKR
£460.73 excl.
£552.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000323180
Kramp Bearing NWB08459
£16.45 excl.
£19.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000269528

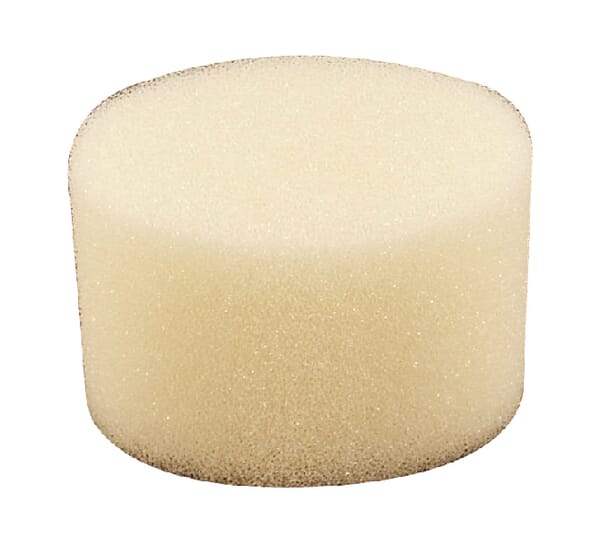

Kramp Air filter FGP001342
