£6.09
excl. VAT
£7.31 incl. VAT
£7.31
incl. VAT
£6.09 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product
A DIN 3760 oil seal measuring 105 mm inside diameter, 125 mm outside diameter, and 13 mm width, supplied as a single piece. The seal features a nitrile rubber (NBR) sealing material with a steel sheath and a zinc-plated steel spring. Type BB construction means the seal has a steel sheath without a dust lip. The rubber outer sheath compensates for expansion and unevenness in the housing bore, making it suitable for sealing rotating machine components. Operating temperature range is −35 to 100 °C. Weight is approximately 76 g, with EAN 8716106241675.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| Inside diameter | 105 mm |
| Long description | Oil seals inside Ø 105 mm |
| Manufacturer Product ID | 10007086 |
| Material spring | Spring steel |
| Outside diameter | 125 mm |
| Properties | rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Retaining ring width | 13 mm |
| Sealing material | Nitrile rubber [NBR] |
| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | BB |
| Unit | Each |
| With dust lip | No |
Logistics
| EAN | 8716106241675 |
|---|---|
| Unit of measure | EA |
| Weight | 76 g |
| Dimensions | 125 × 125 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000316467
Kramp Spur gear module 1.5 - Z=66 MOD1566
£15.52 excl.
£18.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204022

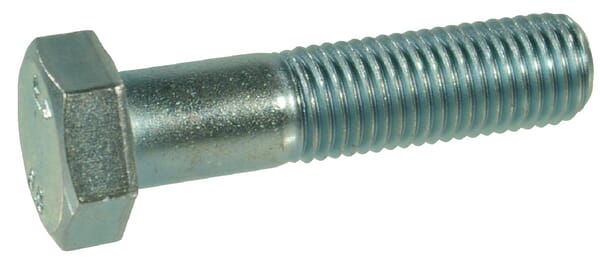

Kramp Hexagon head bolt DIN960 M12x1.25x80 steel zinc-plated 10.9 9601212580109
