£2.00
excl. VAT
£2.40 incl. VAT
£2.40
incl. VAT
£2.00 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product
An oil seal for sealing rotating machine components, measuring 10 mm inside diameter by 19 mm outside diameter with a 7 mm retaining ring width. Supplied as a single piece. The seal features a nitrile rubber [NBR] sealing material with a rubber outer sheath and zinc-plated steel spring. The rubber sheath compensates for expansion and unevenness in the housing bore. This is a type CB seal without a dust lip, as per DIN 3760 classification. The seal operates across a temperature range of −35 to 100 °C. The product weighs 3 g and carries EAN 8719607226585.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| Inside diameter | 10 mm |
| Long description | Oil seals inside Ø 10 mm |
| Manufacturer Product ID | 10005797 |
| Material spring | Spring steel |
| Outside diameter | 19 mm |
| Properties | rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Retaining ring width | 7 mm |
| Sealing material | Nitrile rubber [NBR] |
| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | CB |
| Unit | Each |
| With dust lip | No |
Logistics
| EAN | 8719607226585 |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 20 × 20 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000364856

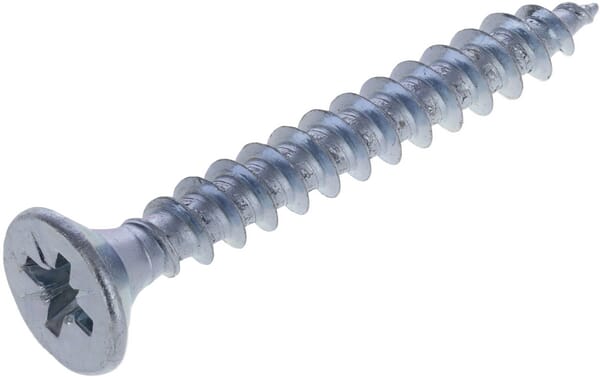

Kramp Wood Screw 2.5x25mm PZ1 cross head Steel SPS2525P200
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000309424
Kramp Ring connector, yellow, 4-6mm² diameter 8mm (50x) LA9055CKR
£0.22 excl.
£0.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000203461
Kramp Hexagon head bolt DIN933 M16x55 steel 8.8 9331655B
£1.18 excl.
£1.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000404564
Kramp Stabiliser chain complete Z700281
£88.42 excl.
£106.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000083964

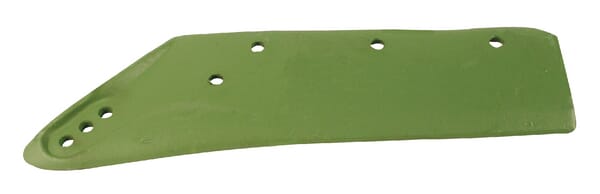

Kramp Share RH 309898N
